Before Using
*The switches, dial, and trimmers in the gure are shown in the initial setting position.
*Please be careful not to push the switch too strongly.
Handle
Digital Dial (DL1) / Switch 6
(SW6)
Power Switch
Display Switch
Digital Trim 2 (DT2)
(default throttle trim)
Digital Trim1 (DT1)
(default steering trim)
Digital Trim4 (DT4)
(default channel 4)
Steering Stick
Switch 2 (SW2)
Switch 3 (SW3)
Switch 4 (SW4)
Neutral Adjuster
LED
LED
Touch Screen LCD
NFC
Home Button
Hook

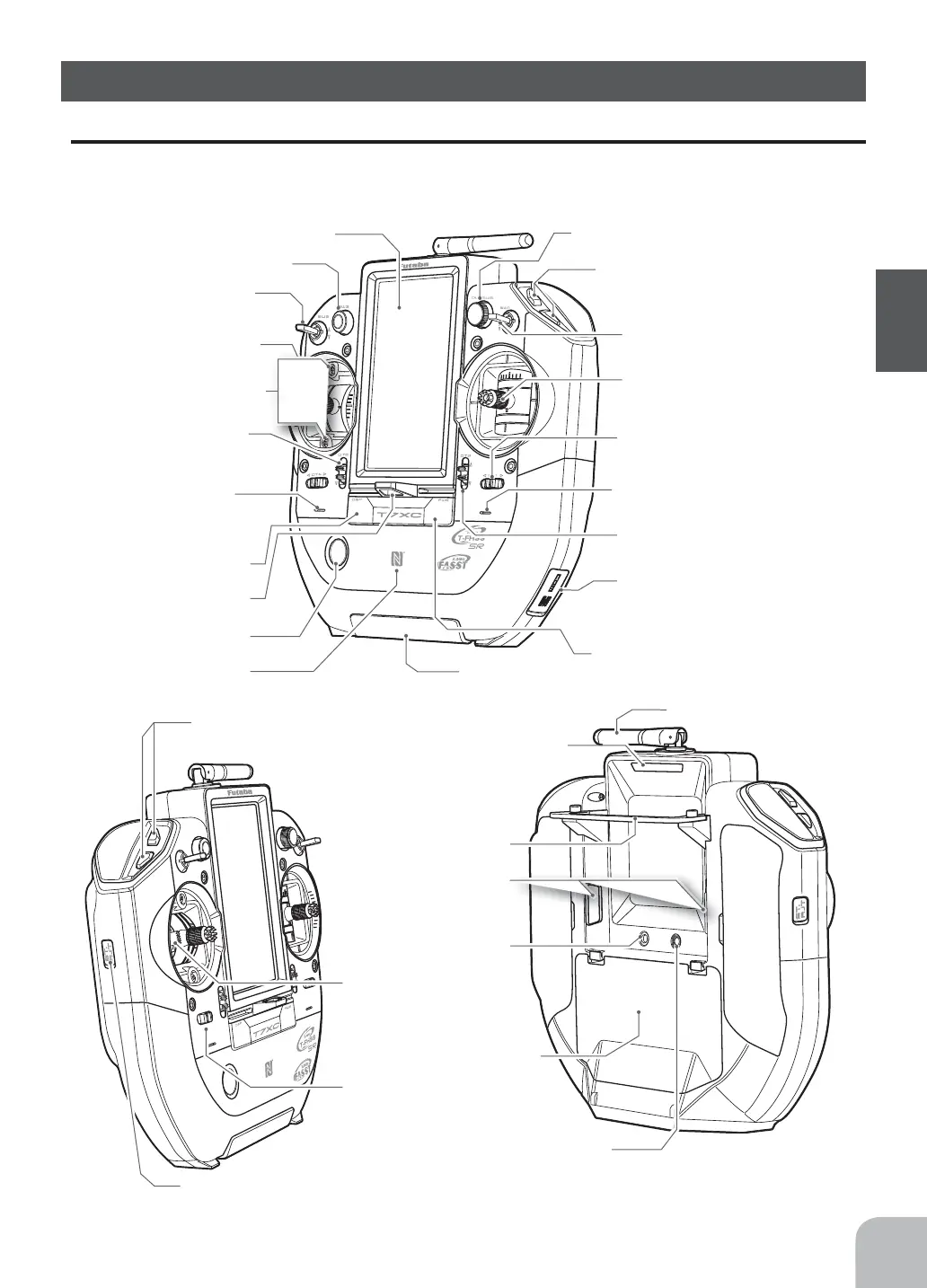

Nomenclature
Transmitter T7XC
Mechanical ATL
Adjusting Screw
Throttle Stick
Digital Trim3 (DT3)
(default channel 3)
Digital Trim5 (DT5)
(default dual rate)
Switch 1 (SW1)
Switch 5 (SW5)
Digital Trim6 (DT6)
(default brake rate)
Battery Cover
Earphone Jack
(3.5mm stereo jack plug)
Telemetry data can be listened to with commercial earphones.
Non-telemetry LED
(Lights when the telemetry function is off.)
Antenna
Cover
Communication port / S.BUS port
microSD card slot
Cover
Neutral adjuster mounting screw
Charging Jack
To Next Page
