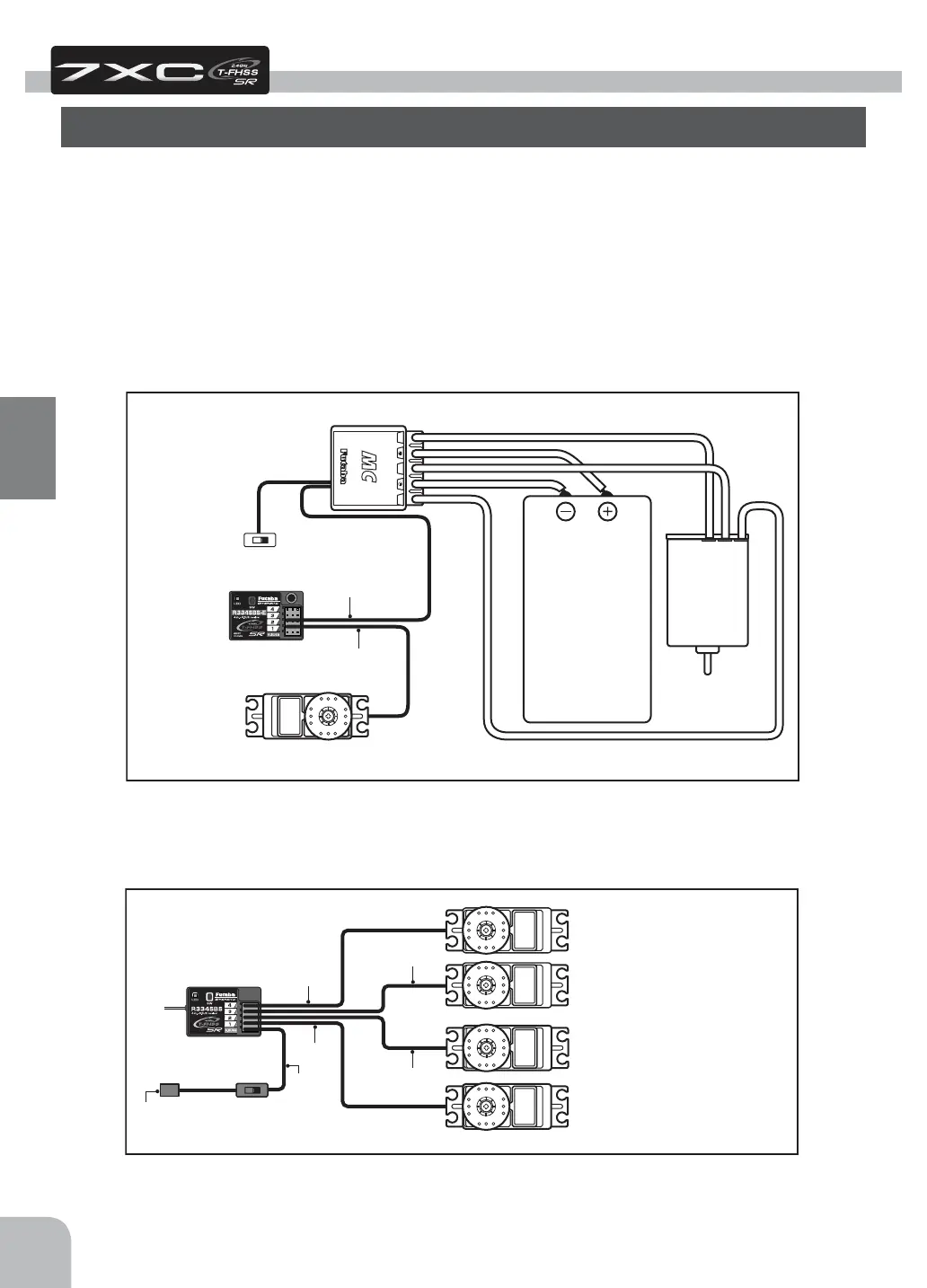

Installation When An Electronic Speed Control Is Used
Installation For Gas Powered Models
Receiver
Receiver
ESC
Battery
Steering Servo
Steering Servo
Throttle Servo
CH3 Servo
CH4 Servo
CH1
CH1
CH2
Switch
Switch
S.BUS2
To Battery
CH2
CH3
CH4
Note
:
The R334 SBS - E receiver is for electric cars. Please do not use for the engine car.
Motor
30
Installation
Connect the receiver and servos as shown below. Connect and install the receiver and ser-
vos in accordance with
"
Installation Safety Precautions
"
on the next page.
The gure shown below is an example. The method of connecting the motor controller to
the motor and battery depends on the motor controller used. Purchase the motor controller
and servos separately. The receiver also depends on the set.
Installation
Receiver And Servo Connections
To Next Page
