Home screen
Menu screen Racing menu screen Curve screen

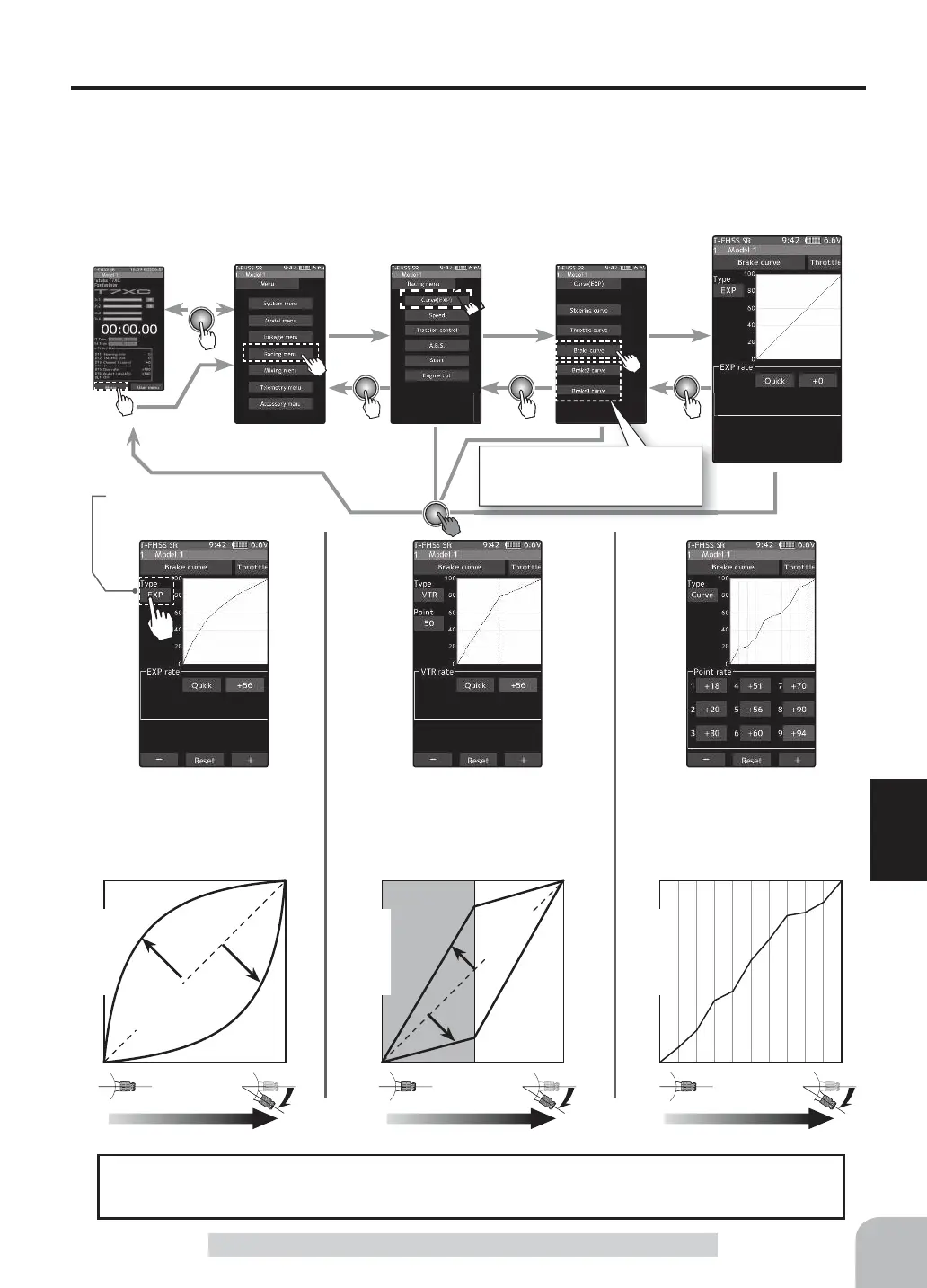

Brake curve
* Tap the type to switch the
curve type.
EXP curve screen
Curve type which operates the
throttle from the neutral point to
the full brake point on a curved
curve.
Curve screen
Curve type which sets 9 points
between the throttle neutral point
and full brake and operates the
throttle.
VTR curve screen
Curve type which sets the switching point
between the throttle neutral point and full
brake point and operates the throttle on a
linear curve.
0%
Normal
0%
Normal
+1% ~ +100%
+1% ~ +100%
Stick operation Stick operation Stick operation
-1% ~ -100%
-1% ~ -100%
Mild
Mild
Servo travel
Servo travel
Servo travel
When brake mixing (page 104)
is used, brakes 2 and 3 are dis-
played.
Quick
Quick
81
Function
Curve (EXP)
Brake curve
This function makes the throttle brake side direction servo operation quicker or milder. It
has no effect on the servo maximum operation amount. For the selection from among three
kinds of curves (EXP/VTR/Curve) is also possible. If Ratio is set to 100:0 with the
"
Throttle
mode (trigger)
"
function (page 60), the brake side will not operate. Since the setting method
of each curve is the same as the throttle (forward) side curve, please read page 81 to 82.
Curve (EXP)
The brake
"
EXP
"
,
"
VTR
"
adjustment can be adjusted with digital trim DT1 to DT6 or
digital dial DL1, with the
"
Trim / Dial select
"
function (page 64).
