Unlock lever head "A" by turning it counterclockwise.
Adjustment
1
Loosen the two set screws.

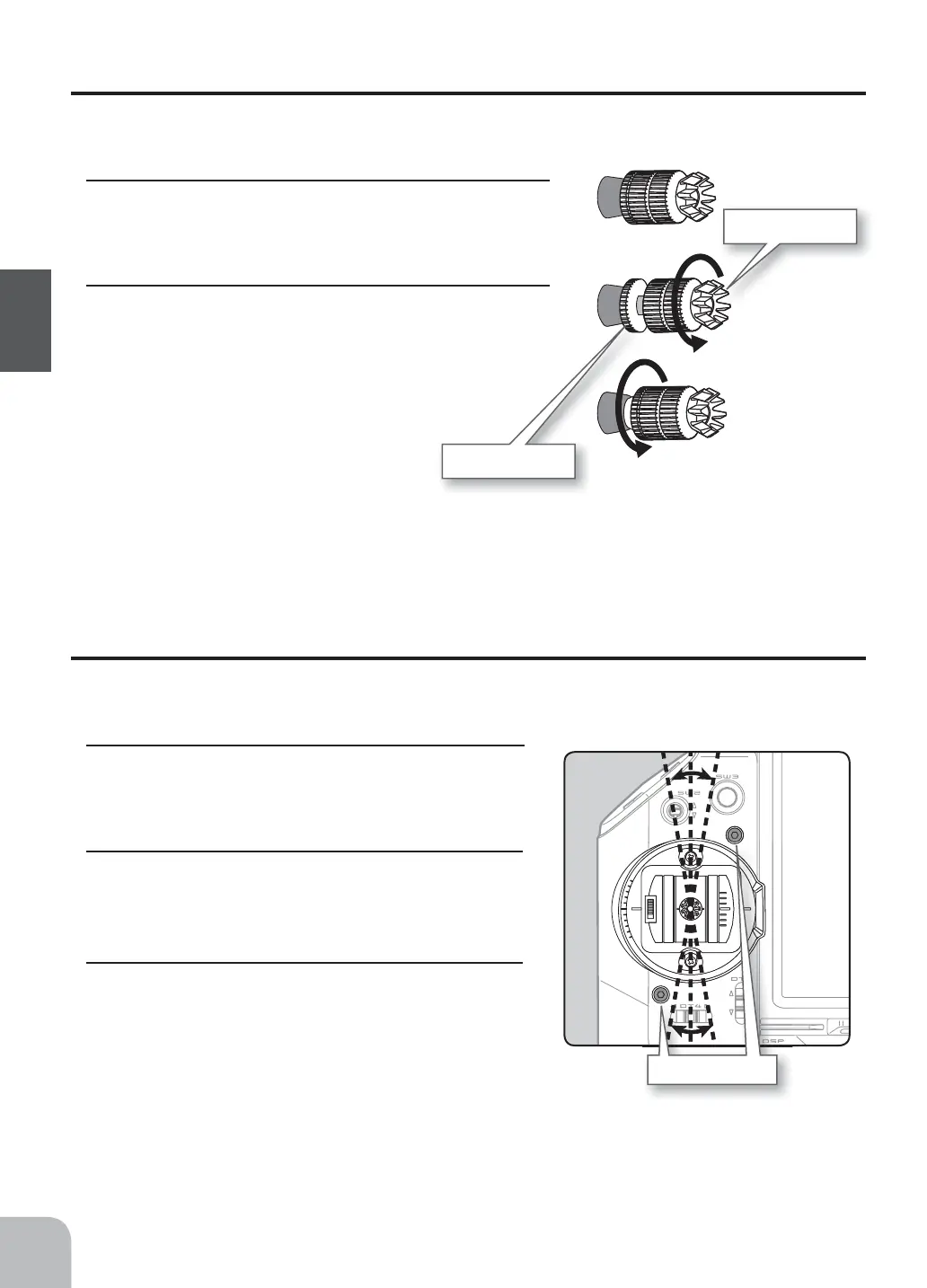

Stick Lever Head Adjustment
The length of the lever head of the steering and throttle sticks can be adjusted.
Stick Mounting Angle Adjustment
The mounting angle of the throttle and steering sticks can be adjusted.
2
Adjust the head to the length best for you, then lock the
heads by turning lever head "A" clockwise and lever
head "B" counterclockwise.
2
Change the stick angle.
Lever head B
Set screws
Lever head A
3
Retighten the two set screws.
- The fi gure at the right shows the throttle stick. The steering stick
can adjusted similarly.
