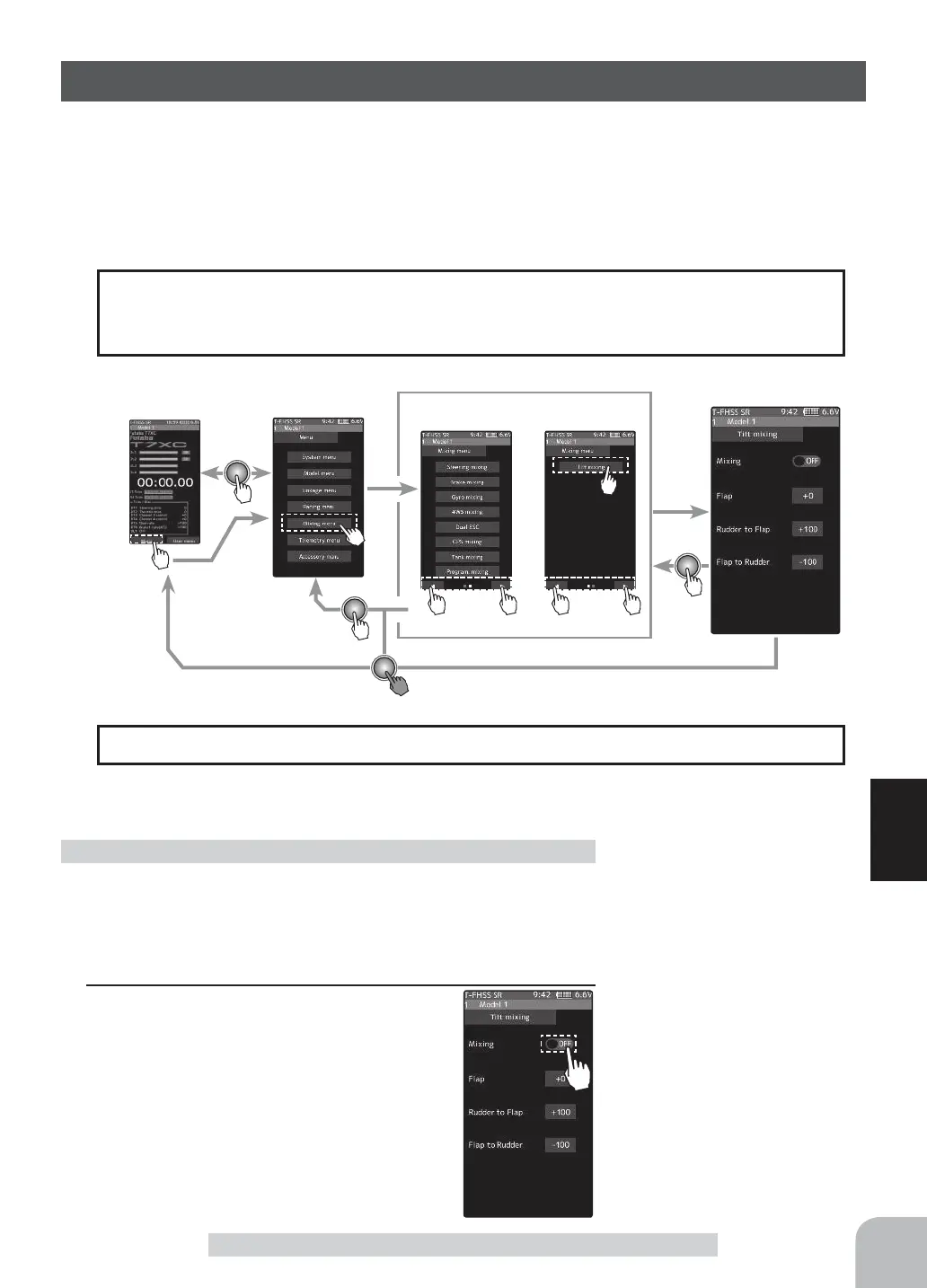

FUTABA 7XC - Tilt Mixing

Home screen
Menu screen
Menu-2
Menu-1
Tilt mixing
123
Function
Tilt Mixing
Tilt Mixing
Tilt mixing uses an outboard engine and applies bidirectional mixing from rudder to ap
and from ap to rudder so that with a boat, rudder operation and tilt mixing operation can
be performed 2 servos.
Tilt mixing can be performed by rudder operation, by steering stick and ap channel.
Steering end point function, curve function, speed function, or D/R function setup also
effects ap channel operation. However, even if set, steering reverse function setup does
not reverse the ap channel.
Effect of the set value of other functions on tilt mixing
When the number of channels is insufcient, cancel the other mixing.
(Preparation)
- Use the "Trim / Dial select" function to select the flap channel
operation dial (page 64).
1
(Function ON/OFF)
Tap "Mixing" (ON) or (OFF) to select ON /
OFF.
"OFF" :Mixing function OFF
"ON" :Mixing function ON
Tilt mixing adjustment
Setting
- Tap (ON) / (OFF).
