FUTABA 7XC - Telemetry System

151
Function
Telemetry System
With the telemetry system, the running status can be displayed at the transmitter and also
recorded as a data log by installing various sensor units to the chassis
(The T-FHSS SR, S-FHSS and FASST systems do not have a telemetry function.)
-The sensor data can be checked at the transmitter by connecting the telemetry sensor sold
separately to the S.BUS2 connector of the R334SBS receiver.
-To log this information, a start/stop switch is set by
"
Switch select
"
function (page 67).
The log data recorded on a microSD card can be converted to CSV format by the telemetry
log converter released at our web page. When copying or moving the log le, always select
both .FLI and .FLD les.

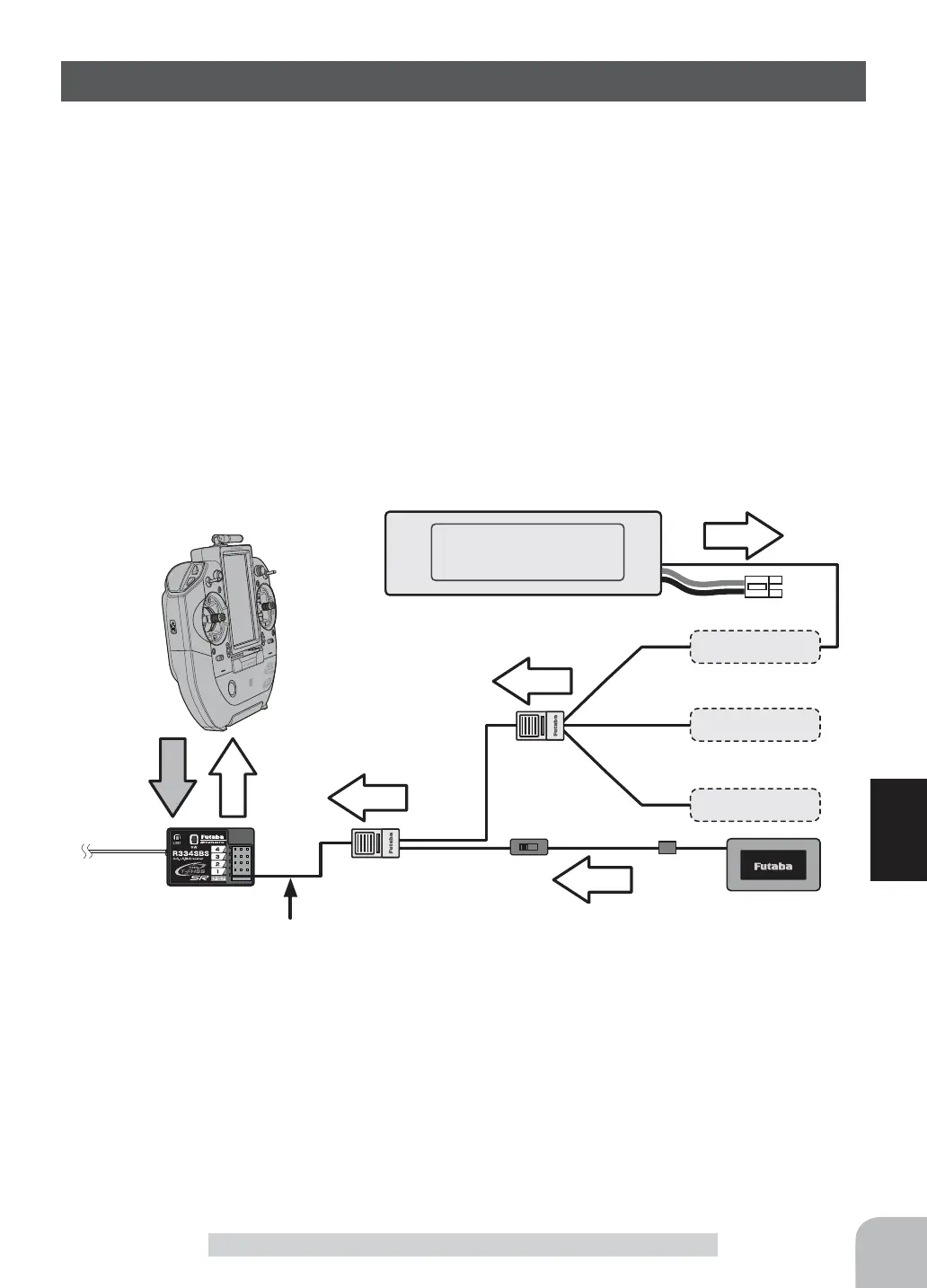

-The gure is an example of connection of a telemetry sensor. The data of up to the follow
-
ing 3 types of sensor and the receiver power supply voltage can be transmitted by using the
3-way extension cord or double extension cord sold separately.
The receiver power supply can also be connected to the S.BUS2 connector or channel 1 to 4
connector. A receiver power supply voltage sensor is unnecessary.
Usable sensor options (As of May 2018)
Temperature sensor (SBS-01T) Perfect for engine head, etc.
Temperature sensor (SBS-01TE) Used by attaching to a motor, etc.
RPM Sensor (SBS-01RM) Measures speed over the 360 to 100,000rpm range.
Brushless type RPM Sensor (SBS-01RB) Measures speed over the 360 to 300,000rpm range.
Voltage Sensor (SBS-01V) Measures external power supply voltages up to 100V.
Current sensor (SBS-01C)
Measures external power supply voltages up to 70V, capacity and consumption capacity.
GPS sensor (SBS-01/02G) Detect the GPS and measure the position and speed of the car body.
Compatibility with non-Futaba sensors (Castle TL0). (Refer to the sensor instruction manual for more information.)
Info
Info
Info
Info
Signal
Info
Voltage Sensor
Temperature
Sensor
RPM Sensor
Battery voltage is displayed
at the transmitter.
Power battery voltage is
displayed at the transmitter.
voltage
T-FHSS Receiver
Transmitter
Switch
Connect to S.BUS2 Connector
HUB
Connection
diagram
Telemetry System
*Info: Info displayed at the transmitter
