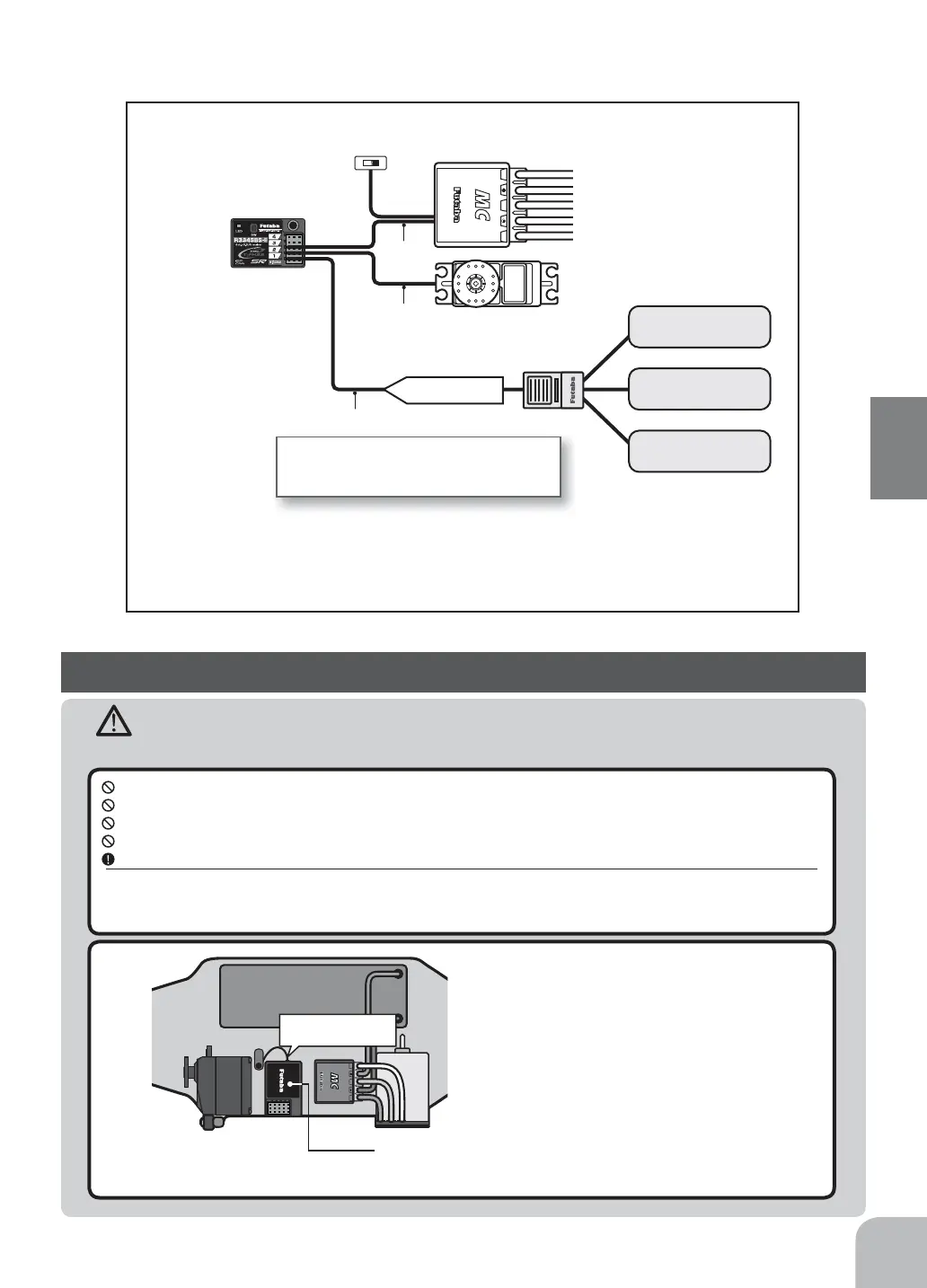

Connection example of S. BUS using a telemetry sensor
Installation Safety Precautions
Warning
Receiver (receiver antenna)
Do not cut or bundle the receiver antenna wire.
Do not bundle the receiver antenna wire together with the motor controller lead wire.
Keep the receiver antenna wire at least 1cm away from motor, battery, and other wiring carrying heavy current.
Do not use a metal receiver antenna holder on a plate made of metal, carbon, or other conductive material.
Install the receiver antenna holder as closely as possible to the receiver.
If the antenna wire is cut, bundled, or routed near a noise source, the receiving sensitivity will drop, the running (cruising)
range will decrease, and you may lose control of the model.
*Noise is transmitted through metal, carbon, and other conductive material, so keep the receiver antenna wire away from such parts.
Install the receiver as far away as possible from the
battery, motor controller, motor, silicon cord and
other noise sources. Keep it away from the antenna
wire, in particular.
Since the antenna of built-in antenna receivers is installed
under this, do not place wiring or other objects on it.
Battery
Antenna
Receiver
ESC
A CB
Each telemetry sensor is connected
to the S.BUS 2 port collectively with a
hub or double extention cable.
Switch
Note
:
In SR mode, the S.BUS 2 port cannot be used other than battery input.
The telemetry system can only be used with TFHSS.
CH1
CH2
S.BUS2
S.BUS2
Telemetry sensors
(Option)
Temperature
sensor
RPM sensor
Voltage sensor
