FUTABA 7XC - Neutral Adjuster Operation

5
5
7
3
Cover
Neutral adjuster
mounting screw
Neutral adjuster
lever
24
Before Using
2

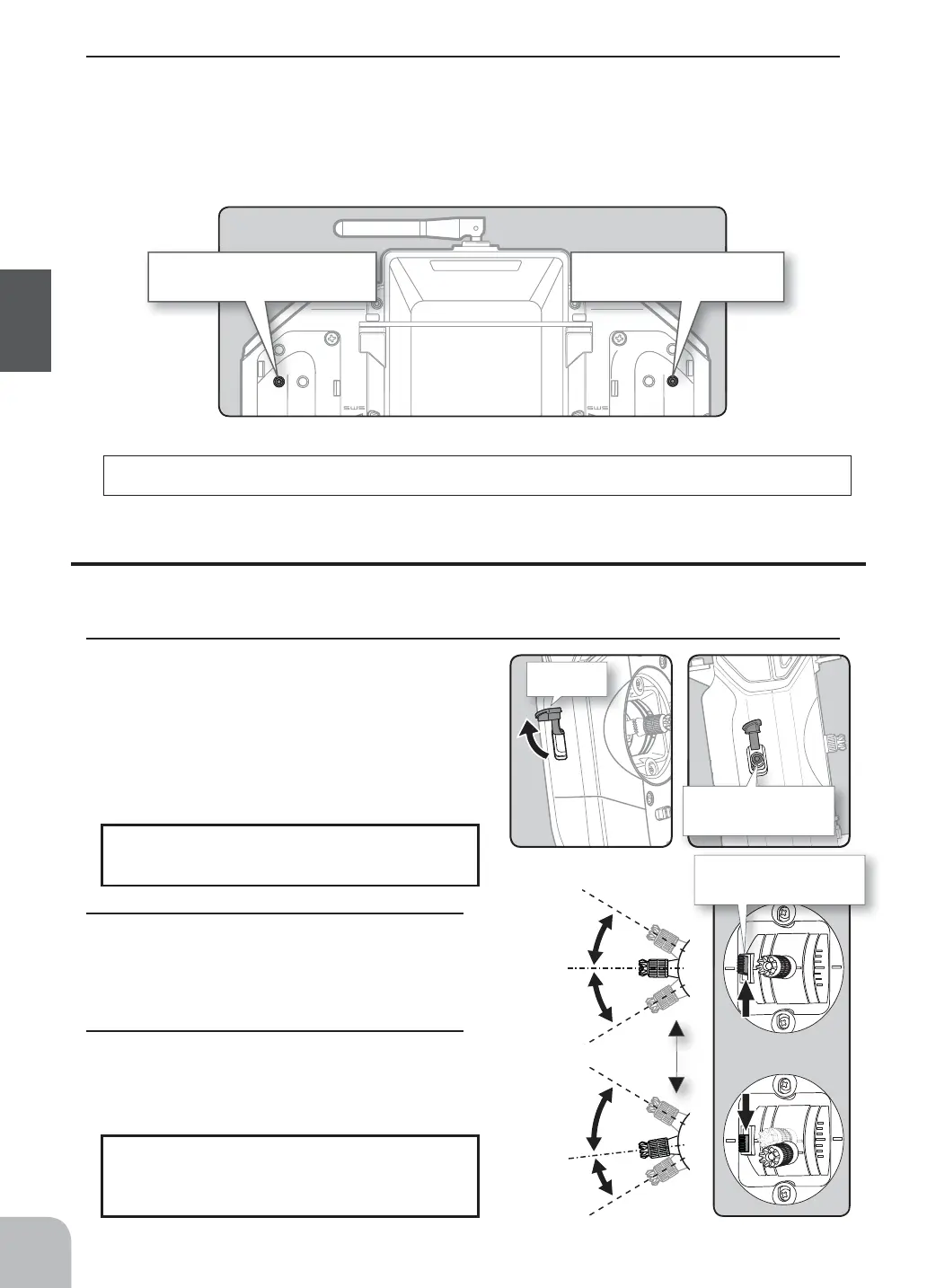

Using a 1.5mm hex wrench, adjust the stick spring tension by turning the screw inside the
adjusting hole.
- The spring is set to the weakest tension at the factory.
- When the adjusting screw is turned clockwise, the spring tension increases.
Note:
If turned too far counterclockwise, the adjusting screw may fall out.
Steering stick adjusting
screw
Throttle stick adjusting
screw
Adjustment
1
Open the cover as shown, and using a 2.0mm
hex wrench, loosen the neutral adjuster
mounting screw by turning it slightly counter-
clockwise.
-Always loosen this screw.
2
Move the adjuster lever up and down to de-
termine the neutral position.
Note:
Note:
If the neutral adjuster mounting screw is
turned too much, the screw may fall out.
When the neutral adjuster is moved, per-
form throttle side correction by
"
Calibra-
tion
"
function (page 184).
Neutral Adjuster Operation
The neutral adjuster sets the throttle stick neutral position freely within the range of 5: 5 to 7:
3.
3
Retighten the mounting screw loosened at
step 1 and fasten the neutral adjuster.
