FUTABA 7XC - Mechanical Throttle Stick Stroke Adjustment; Stick Tension Adjustment

Note:
Adjusting the stroke also changes the operation amount of the throttle servo (motor control-
ler). For that reason, the throttle side correction must be performed with the
"
Calibration
"
function(page 184). Also, actually check the operation amount of the throttle servo (motor
controller) and adjust the operation amount of the throttle again with EPA (end point adjuster)
function.
Grip
Grip
Grip
23
Before Using

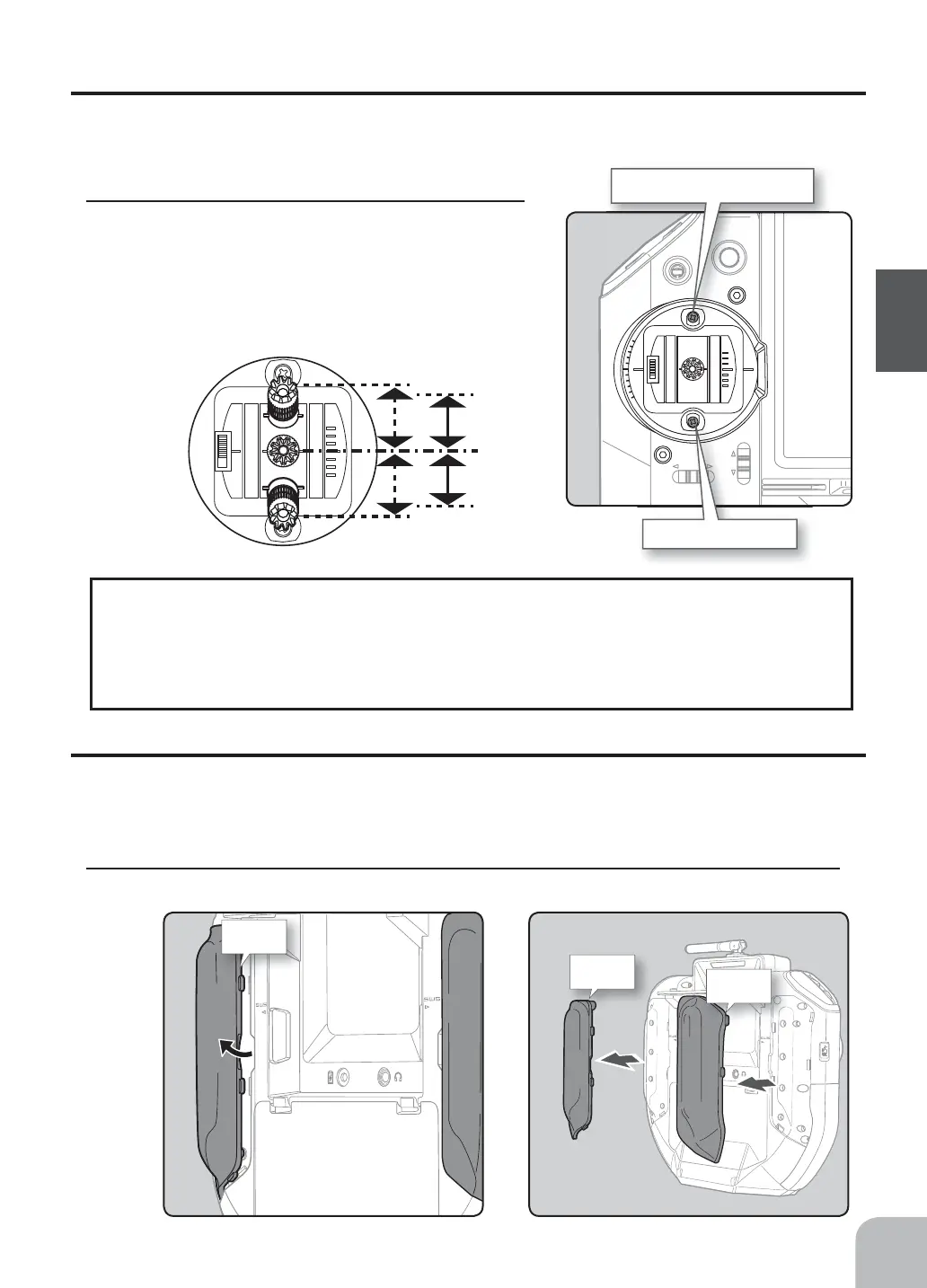

Mechanical Throttle Stick Stroke Adjustment
Make this adjustment when you want to reduce the throttle stick range at the full power or
brake/reverse positions.
Stick Tension Adjustment
Make this adjustment when you want to change the steering stick or throttle stick spring’s
tension.
Adjustment
1
Remove the left and right grips referring to the fi gure below.
Forward side
Brake (reverse) side
Adjustment
1
Make this adjustment by turning the setting screw in
the fi gure with a Phillips screwdriver.
-
When the adjusting screw is turned counter clockwise, the
stroke is reduced. Please adjust while moving the stick.
