Warning
Connector Connections
Be sure the receiver, servo, battery and connectors are fully and firmly connected.
If vibration from the model causes a connector to work loose while the model is in operation, you may lose control .

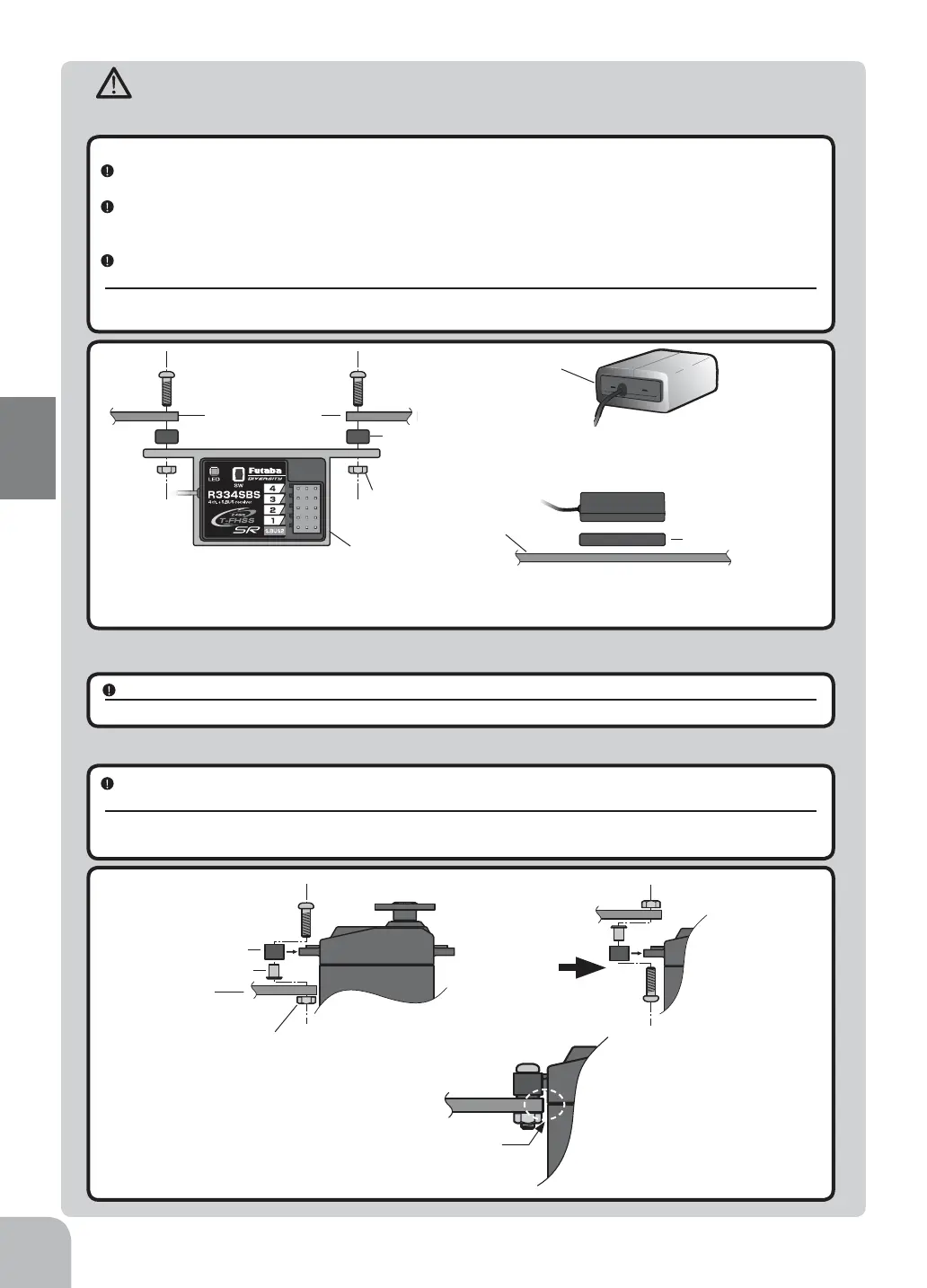

Servo Installation
When you install the servos, always use the rubber grommets provided in servo hardware bags. Mount the
servos so they do not directly come in contact with the mount.
If the servo case comes in direct contact with the mount, vibration will be directly transmitted to the servo.
If this condition continues for a long time, the servo may be damaged and control will be lost.
Screw
Mechanical plate
Nut (as required)
Eyelet
Damper
(or)
When installing the servo, always install the accessory
rubber grommet and grommet ush against the servo.
A vibration-damping effect is not obtained if the
rubber grommet and grommet are not installed
correctly.
Receiver Vibration-proofing / Waterproofing
(Car)
Vibration-proof the receiver by wrapping it in foam rubber or other vibration-absorbing material and mount it with
thick double-sided tape.
When using the receiver holder supplied with the model kit, mount the holder to the chassis through a rubber
grommet.
(Boat)
Vibration-proof the receiver by wrapping it in foam rubber or other vibration-absorbing material. Also waterproof
the receiver by cruising it in a plastic bag.
If the receiver is exposed to strong vibration and shock, or the ingression of water, it may not operate correctly and you
may lose control of the model.
Screw
Mechanical plate
Nut (as required)
Receiver holder
Damper
When using the receiver holder supplied
with the kit, install the receiver through a
rubber grommet.
Foam rubber, etc.
Wrap the receiver in foam rubber or other vibration-
absorbing material. Do not use hard material. Hard
material does not have a vibration-proong effect.
Mechanical plate
Thick double-
sided tape
When mounting the receiver with double-sided tape,
do not use a stiff tape. Stiff tape does not have a vibra-
tion-proong effect.
32
Installation
