Spring
Spring hook
Swing arm
Ratchet plate
2x4mm hexagon socket
button head screw
Wiring
26
Before Using
7
When the work is completed, re-attach the rear case using a Phillips screwdriver and a 1.5
mm hex wrench.
- Take great care not to damage the wiring when re-attaching the rear case.
- If the screw is too tightly tightened, the case will be damaged.
- Foreign substances must not be allowed to get into the interior of the case.
8
Install bottom rubber, dustproof cap, battery, battery cover and grips in original positions.
6
Using a 1.5
mm hex wrench fasten the ratch-
et plate. Use the 2 x 4 mm hexagon socket
button head screw in the accessories bag.
- A small amount of servo gear grease should be applied
to the ratchet teeth.
- If the ratchet plate falls out, the transmitter will be dam-
aged short-circuited internally. Please install securely.
5

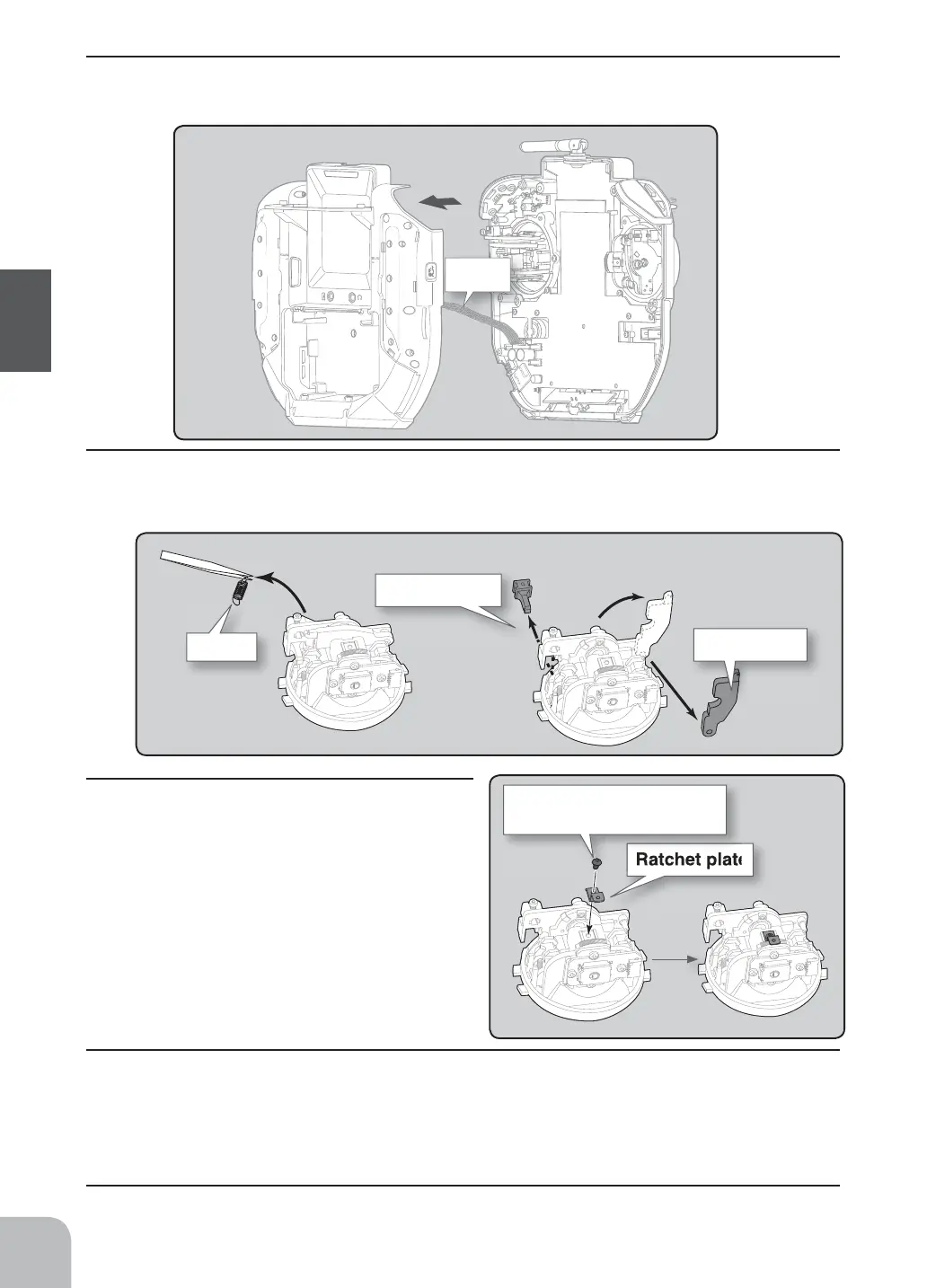

Remove the swing arm, spring and spring hook from the throttle stick as shown in the fi gure.
- Retain these parts in case the stick is to be changed back to self-centering type later.
4
Gently remove the rear case, without pulling excessively on the wiring.
-Don’t touch internal electronic components.
