Receiver
R334SBS
Link failed
Link established
The link is completed. Repeat the linking operation
T-FHSS T-FHSS SR
Receiver software version
The software version of the receiver is
displayed only on "T - FHSS" system.
*Telemetry: ON / Receiver: Power ON
36
Initial Set-Up
*
After set up this far is complete, when using a FASST system (R614FS/FF/FF-E) or S-
FHSS system (R2104GF, R204GF-E, etc.) receiver, go to "Receiver Other Than T-FHSS"
on page 37. When using a T-FHSS SR receiver (R334SBS) and T-FHSS receiver (R304SB,
etc.) go to next step 3.
3
Bring the transmitter and receiver within 50cm of each other (antennas do not touch) and
turn on the receiver power.
4

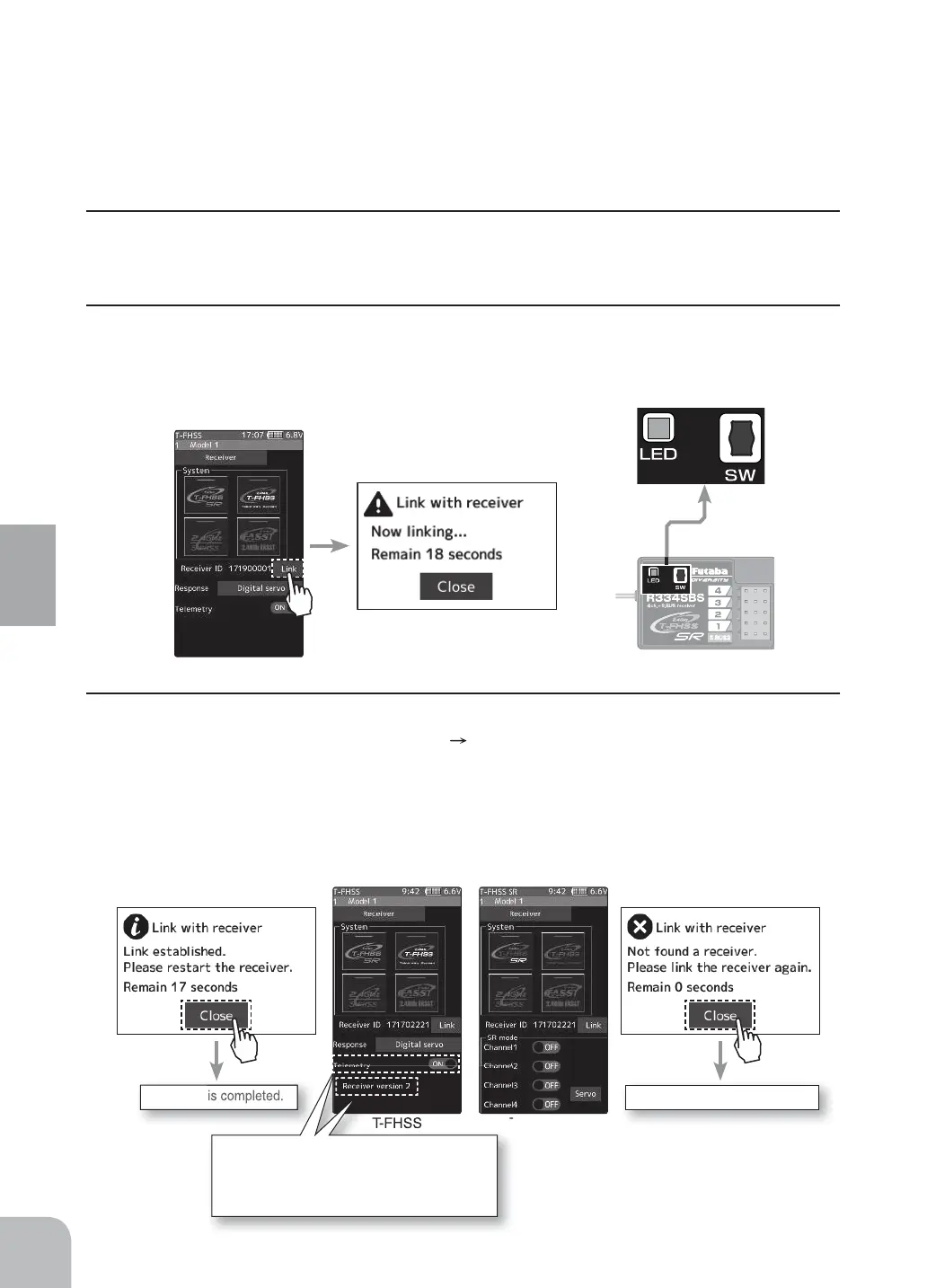

Touch [Link] on the transmitter T7XC screen, you will hear a chime sound and T7XC will
enter the link mode for 20 seconds. During the 20 second link mode, push the receiver side
push switch for about 2 seconds or more.
5
During the 20 seconds link mode, press the receiver for at least 2 seconds. The LED blinks
red and then changes to a greenish red
green steady light. When the T7XC makes a
beeping sound and the message "Link with receiver" appears on the screen, release the
receiver push switch. This ends reading of mutual ID and displays the memorized receiver
ID number on the T7XC screen. Power cycle the receiver. If the "Receiver not found" error
screen is displayed, linking failed. Check the set contents and repeat the linking operation.
To Next Page
