Fail-Safe position setting
While holding the stick, tap the
Fail-Safe position button.
Battery fail-safe function
OFF, ON
Initial value: OFF
Fail-safe mode
Off, Hold, Fail-safe
57
Function
Fail-safe/ Battery Fail-safe
1
(Battery fail-safe function ON/OFF)
Tap B-F /S (ON) or (OFF) of each channel to select ON / OFF.
2
(Battery fail-safe voltage setting)
Tap the voltage display of battery fail-safe
voltage. Value input buttons appear on the
Fail-Safe menu screen.
Use the [+] or [-] button to select the voltage.
* Voltage setting is not possible with the S - FHSS sys-
tem fixed at 3.8 V.
* Since FASST R604 Series receivers are not for high
voltage use, the use of LiFe and Li-Po batteries is
prohibited. Therefore, the 4.75v and 5.5v settings
are prohibited. The 5.5 V setting of the FASST
system can only be used by the receiver with
R614FS (FSE).
B-F/S function ON/OFF & Battery Fail-safe voltage setting
Battery Fail-safe Voltage
T-FHSS SR/T-FHSS
3.8,4.0,4.2,4.4,4.6,4.8,5.0,
5.3,5.6,5.9,6.2,6.5,6.8,7.1,7.4V
FASST
3.5,3.8,4.4,4.75
5.5V ( Only R614 )
S-FHSS
Only 3.8V
Example:
Ni-MH /Ni-Cd 4cell---3.8V
Ni-MH /Ni-Cd 6cell---4.4V
LiFe 2cell---4.75/4.8V
Li-Po 2cell---5.5/5.6V
When the receiver power supply of an electric car uses a common power supply from an ESC, we recommend that this function be set
to OFF because the voltage supplied to the receiver may drop momentarily and the battery fail-safe function may be activated.

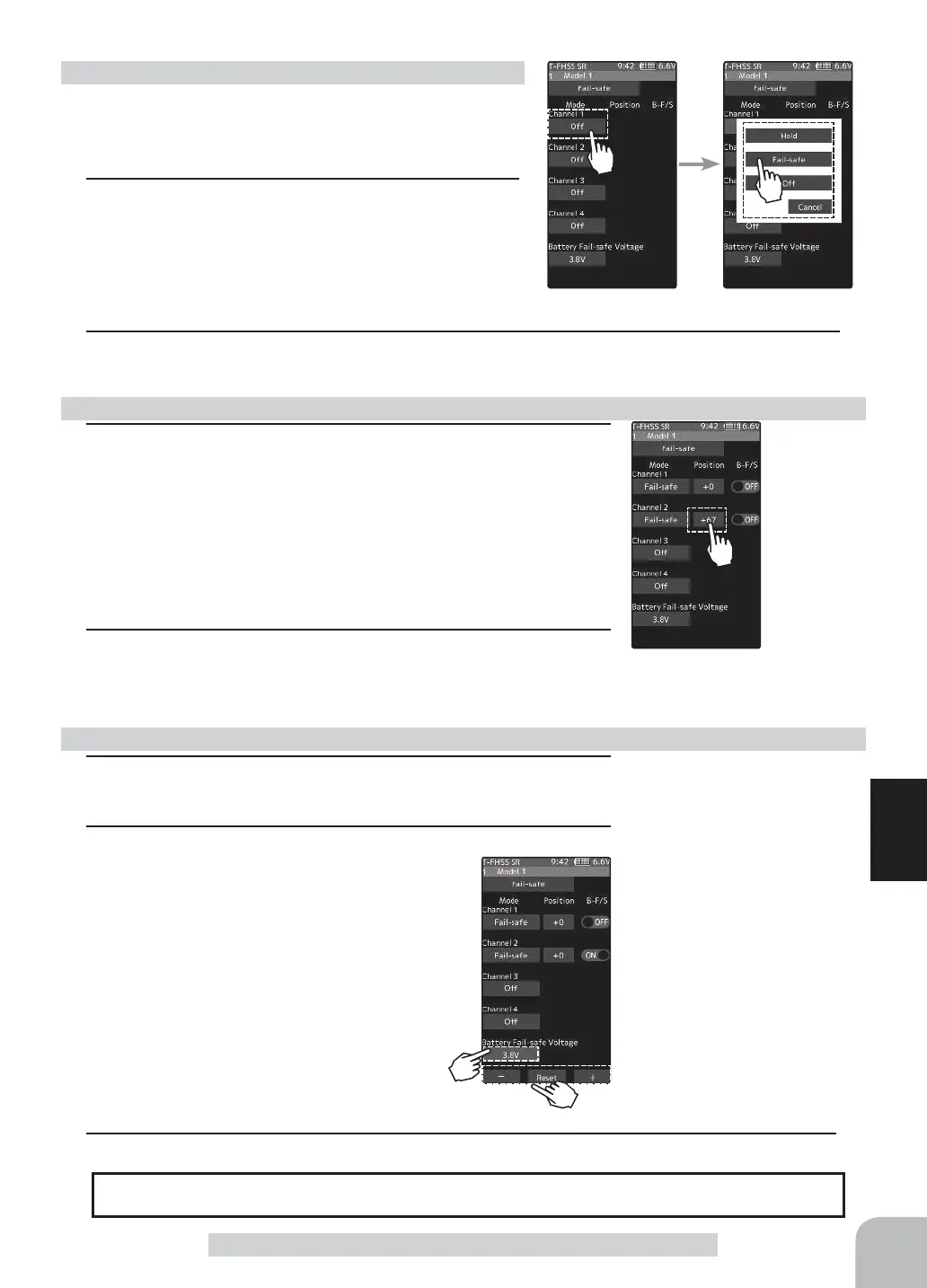

(Preparation)
- Tap the fail-safe part of the channel you want to set.
The mode list appears on the Fail-safe menu screen.
1
(Mode selection)
Tap from the list and select the mode. To cancel,
tap [Cancel].
(Each channel can be individually set.)
Fail-safe mode selection
1
(Servo position setup)
Tap the [Mode] button of the channel you want to set, and set
that channel to the Fail-safe mode.
Hold the corresponding steering stick, throttle stick, or other
control in the position you want the servo to move to when the
fail-safe function is activated, and tap the [Position] button.
The position is displayed as a value.
2
When finished, return to the Linkage menu screen by pressing
the HOME button.
Fail-safe function setup
2
When finished with hold or off mode setting, return to the Linkage menu screen by pressing
the HOME button. When setting fail-safe, set the servo position by the following method.
3
When finished, return to the Linkage menu screen by pressing the HOME button.
