Chapter 9: Setting up the CS534
9.1 Overview
The CS534 listen-in module is a two-way audio and voice communicator for the CSx75 control panel. Once the
control panel has communicated an alarm, the CS534 listen-in module allows a monitoring service operator to
listen-in to a customer’s premises. It can also provide basic two-way voice communication. This procedure is
controlled from the central station by the use of a touch tone telephone.
9.2 Installing the CS534 listen-in module
The CS534 listen-in module is installed on top of the main panel board and must be connected to the expansion
header. For more details on how to install the CS534 listen-in module in the various housings, see chapter A-4
Installing a basic system.

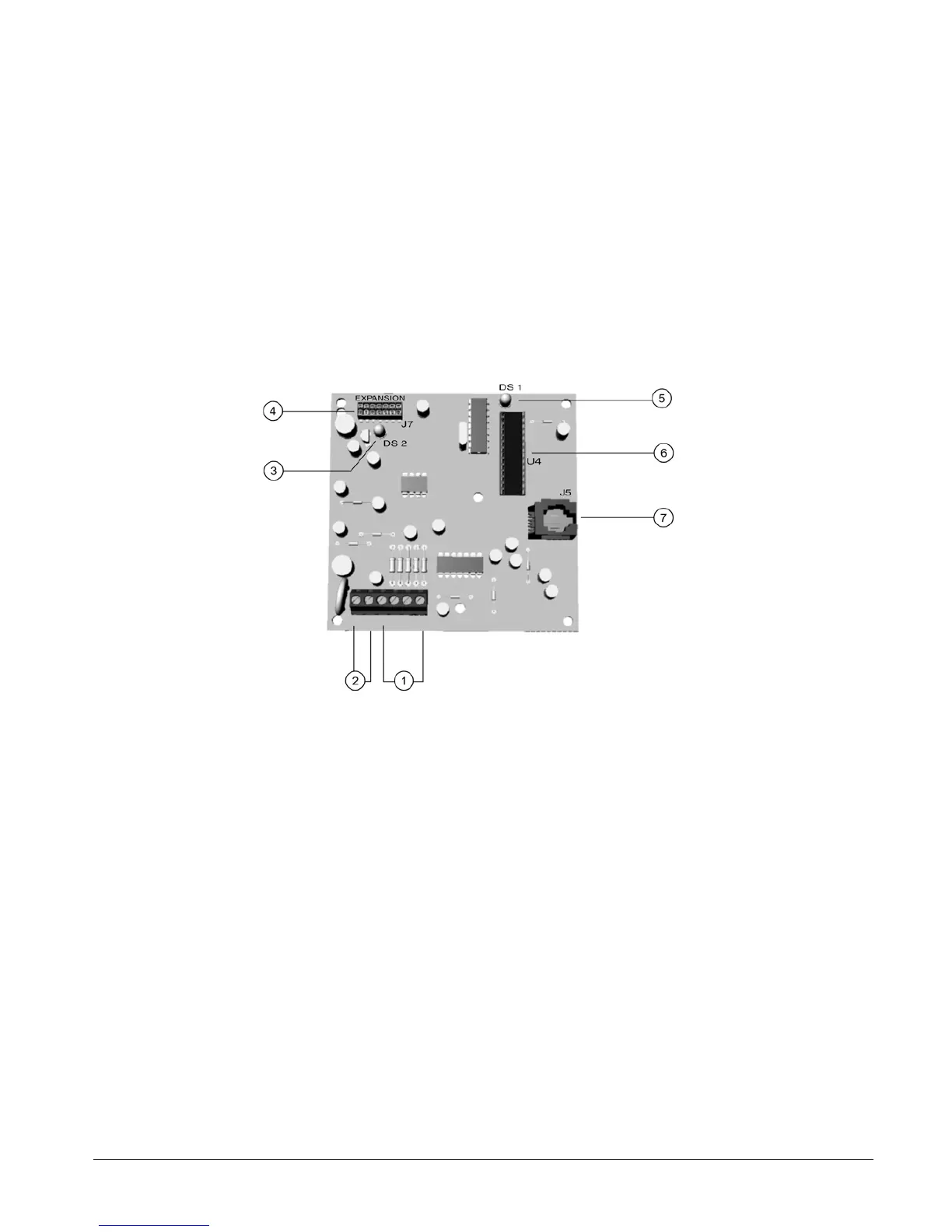

1
Microphone channels A and B
Wire run can be 300 m if microphone wires are in a separate jacket from the speaker, 150 m if in the same jacket.
2
Speaker terminals
Maximum speaker wire run = 300 m
Minimum speaker rating is 5 W, 8 ohms
3
Supervision LED
4
Expansion port
5
Bus supervision LED
6
Processor
7
X-10 Connection: RJ11
