GE 269Plus

GE Power Management 269Plus Motor Management Relay 4- 15
4 COMMUNICATIONS MEMORY MAP
4
40183 00B6 182 RTD4 High Alarm Level 0 to 201 (201=OFF) °C
40184 00B7 183 RTD5 High Alarm Level 0 to 201 (201=OFF) °C
40185 00B8 184 RTD6 High Alarm Level 0 to 201 (201=OFF) °C
40186 00B9 185 Negative KVAR Alarm Level 1 to 251 (251 = OFF) × 100
40187 00BA 186 Power Factor Trip/
Alarm Start Block Delay
1 to 255 (255 = OFF) sec.
40188 00BB 187 Undefined
40189 00BC 188 Undefined
40190 00BD 189 Undefined
40191 00BE 190 Undefined
40192 00BF 191 Undefined
40193 00C0 192 Overvoltage Trip Assignment 16 to 18 F3
40194 00C1 193 Undercurrent Trip Assignment 16 to 18 F3
40195 00C2 194 Undefined
40196 00C3 195 Undefined
40197 00C4 196 Undefined
40198 00C5 197 Undefined
40199 00C6 198 Undefined
40200 00C7 199 Undefined
40201 00C8 200 Overvoltage Alarm Assignment 13 to 16 F3
40202 00C9 201 Mechanical Jam Alarm Assignment 13 to 16 F3
40203 00CA 202 Undefined
40204 00CB 203 Undefined
40205 00CC 204 Undefined
40206 00CD 205 Undefined
40207 00CE 206 Stator RTD High Alarm Assignment 13 to 16 F3
40208 00CF 207 RTD High Alarm Assignment 13 to 16 F3
40209 00D0 208 Undefined
40210 00D1 209 Undefined
40211 00D2 210 Undefined
40212 00D3 211 Undefined
40213 00D4 212 Undefined
40214 00D5 213 Undefined
40215 00D6 214 Undefined
40216 00D7 215 Undefined
40217 00D8 216 Undefined
40218 00D9 217 Undefined
40219 00DA 218 Undefined

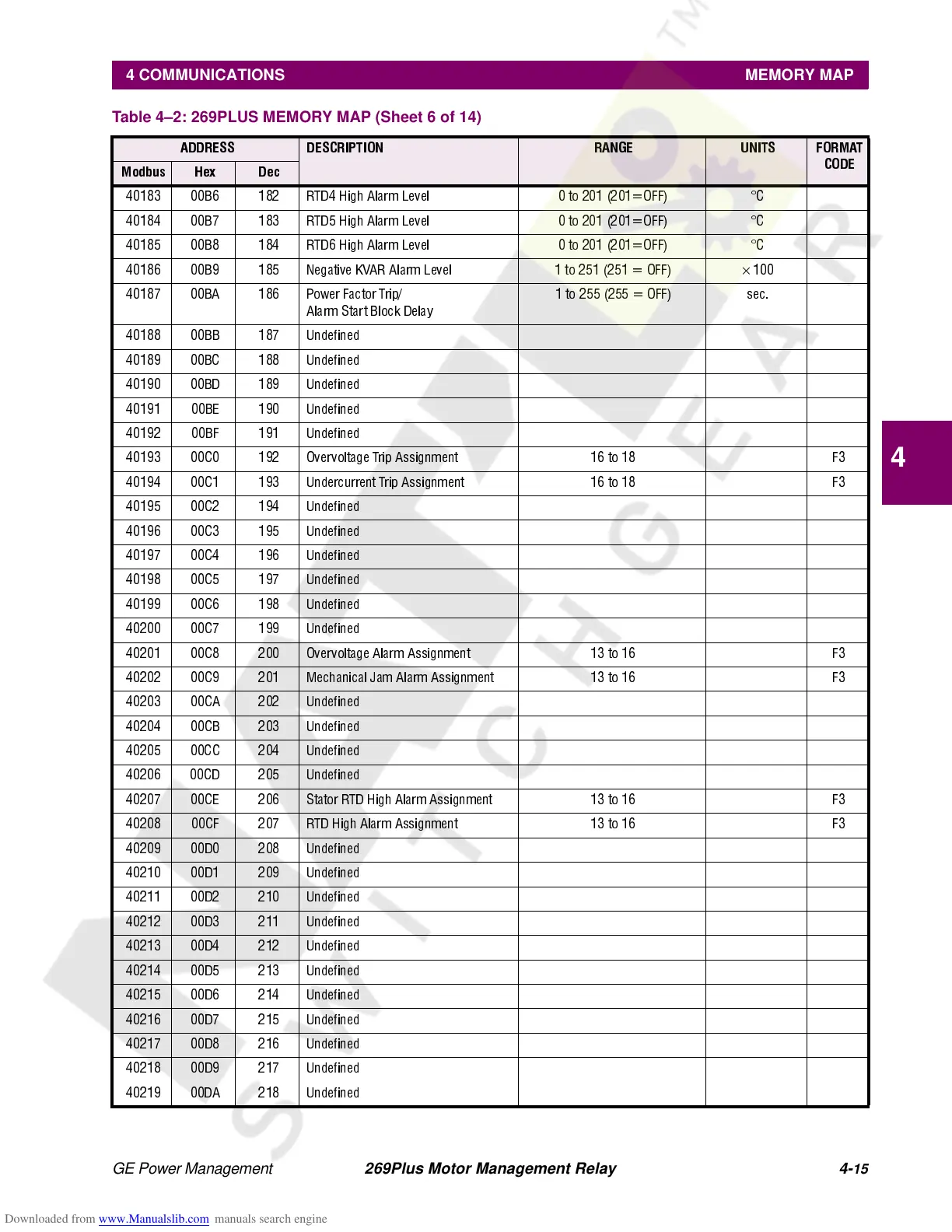

Table 4–2: 269PLUS MEMORY MAP (Sheet 6 of 14)
ADDRESS DESCRIPTION RANGE UNITS FORMAT
CODE
Modbus Hex Dec
