MEMORY MAP 4 COMMUNICATIONS
4
40145 0090 144 Undefined - REMOVED FROM MAP DO NOT ALTER
40146 0091 145 Undefined - REMOVED FROM MAP DO NOT ALTER
40147 0092 146 Reserved - REMOVED FROM MAP DO NOT ALTER
40148 0093 147 Undefined - REMOVED FROM MAP DO NOT ALTER
40149 0094 148 Reserved (Factory Setpoints Loaded) DO NOT ALTER
40150 0095 149 Undefined DO NOT ALTER
40151 0096 150 Undefined DO NOT ALTER
40152 0097 151 Undefined DO NOT ALTER
40153 0098 152 Setpoints Status Bits Register 3 0 to 65535 F32
40154 0099 153 Setpoints Status Bits Register 1 0 to 65535 F13
40155 009A 154 Setpoints Status Bits Register 2 0 to 65535 F14
40156 009B 155 TRPMSGCONT (Reserved)
40157 009C 156 TIMEOUT (Display timeout counter)
40158 009D 157 Undefined DO NOT ALTER
40159 009E 158 Meter VT Secondary 40 to 240 V
40160 009F 159 Meter CT Primary 20 to 1500 1
40161 00A0 160 Meter VT Ratio 10 to 2550 × 0.1
40162 00A1 161 Undervoltage Alarm Level 30 to 96 (96 = OFF) % VT
40163 00A2 162 Undervoltage Alarm Delay 1 to 255 sec.
40164 00A3 163 Undervoltage Trip Level 30 to 96 (96 = OFF) % VT
40165 00A4 164 Undervoltage Trip Delay 1 to 255 sec.
40166 00A5 165 Power Factor Lead Alarm Level 5 to 100 (100 = OFF) × 0.01
40167 00A6 166 Power Factor Lag Alarm Level 5 to 100 (100 = OFF) × 0.01
40168 00A7 167 Power Factor Alarm Delay 1 to 255 sec.
40169 00A8 168 Power Factor Lead Trip Level 5 to 100 (100 = OFF) × 0.01
40170 00A9 169 Power Factor Lag Trip Level 5 to 100 (100 = OFF) × 0.01
40171 00AA 170 Power Factor Trip Delay 1 to 255 sec.
40172 00AB 171 Positive KVAR Alarm Level 1 to 251 (251 = OFF) × 100
40173 00AC 172 KVAR Alarm Delay 1 to 255 sec.
40174 00AD 173 Analog Output Scale Factor 1 to 255
40175 00AE 174 Power Factor Protection Delay 1 to 255 (255 = OFF) sec.
40176 00AF 175 Overvoltage Alarm Level 101 to 116 (116 = OFF) % VT
40177 00B0 176 Overvoltage Alarm Delay 1 to 255 sec.
40178 00B1 177 Overvoltage Trip Level 101 to 116 (116 = OFF) % VT
40179 00B2 178 Overvoltage Trip Delay 1 to 255 sec.
40180 00B3 179 RTD1 High Alarm Level 0 to 201 (201=OFF) °C
40181 00B4 180 RTD2 High Alarm Level 0 to 201 (201=OFF) °C
40182 00B5 181 RTD3 High Alarm Level 0 to 201 (201=OFF) °C

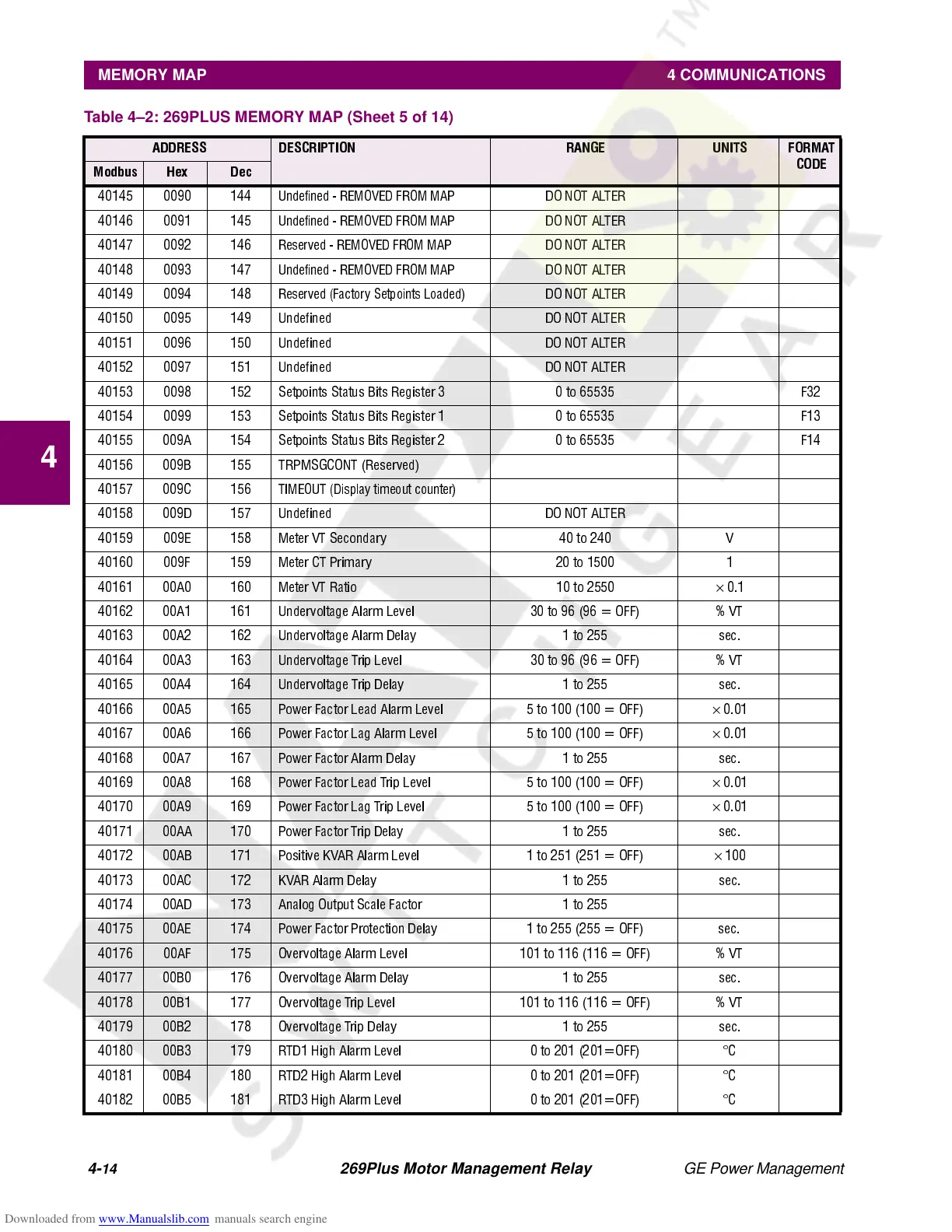

Table 4–2: 269PLUS MEMORY MAP (Sheet 5 of 14)
ADDRESS DESCRIPTION RANGE UNITS FORMAT
CODE
Modbus Hex Dec
