4 COMMUNICATIONS MEMORY MAP
4
ACTUAL VALUES – READ ONLY
40513 0000 0 GE product device code 20 or 52 F15
40514 0001 1 GE product hardware rev code 0000H to FFFFH F16
40515 0002 2 GE product firmware rev code 0100H to FFFFH F17
40516 0003 3 GE Mod. File Number 0 to FFFFH F18
40517 0004 4 Undefined
40518 0005 5 Undefined
40519 0006 6 Undefined
40520 0007 7 Undefined
40521 0008 8 Undefined
40522 0009 9 Undefined
40523 000A 10 Undefined
40524 000B 11 Undefined
40525 000C 12 Undefined
40526 000D 13 Undefined
40527 000E 14 Undefined
40528 000F 15 Undefined
40529 0010 16 phase 1 current 0 to 18000 A
40530 0011 17 phase 2 current 0 to 18000 A
40531 0012 18 phase 3 current 0 to 18000 A
40532 0013 19 average current 0 to 18000 A
40533 0014 20 hottest stator temperature 0 to 200 °C
40534 0015 21 unbalance ratio 0 to 31 %
40535 0016 22 ground fault current 0 to 255
× 0.1 A (2000:1)
40536 0017 23 bargraph count 0 to 24 x0.25 FLC
40537 0018 24 undefined
40538 0019 25 undefined
40539 001A 26 undefined
40540 001B 27 undefined
40541 001C 28 hottest stator RTD # 1 to 6
40542 001D 29 hottest stator temperature 0 to 200 °C
40543 001E 30 RTD 1 temperature 0 to 201 (201 = no RTD) °C
40544 001F 31 RTD 2 temperature 0 to 201 (201 = no RTD) °C
40545 0020 32 RTD 3 temperature 0 to 201 (201 = no RTD) °C
40546 0021 33 RTD 4 temperature 0 to 201 (201 = no RTD) °C
40547 0022 34 RTD 5 temperature 0 to 201 (201 = no RTD) °C
40548 0023 35 RTD 6 temperature 0 to 201 (201 = no RTD) °C
40549 0024 36 RTD 7 temperature 0 to 201 (201 = no RTD) °C

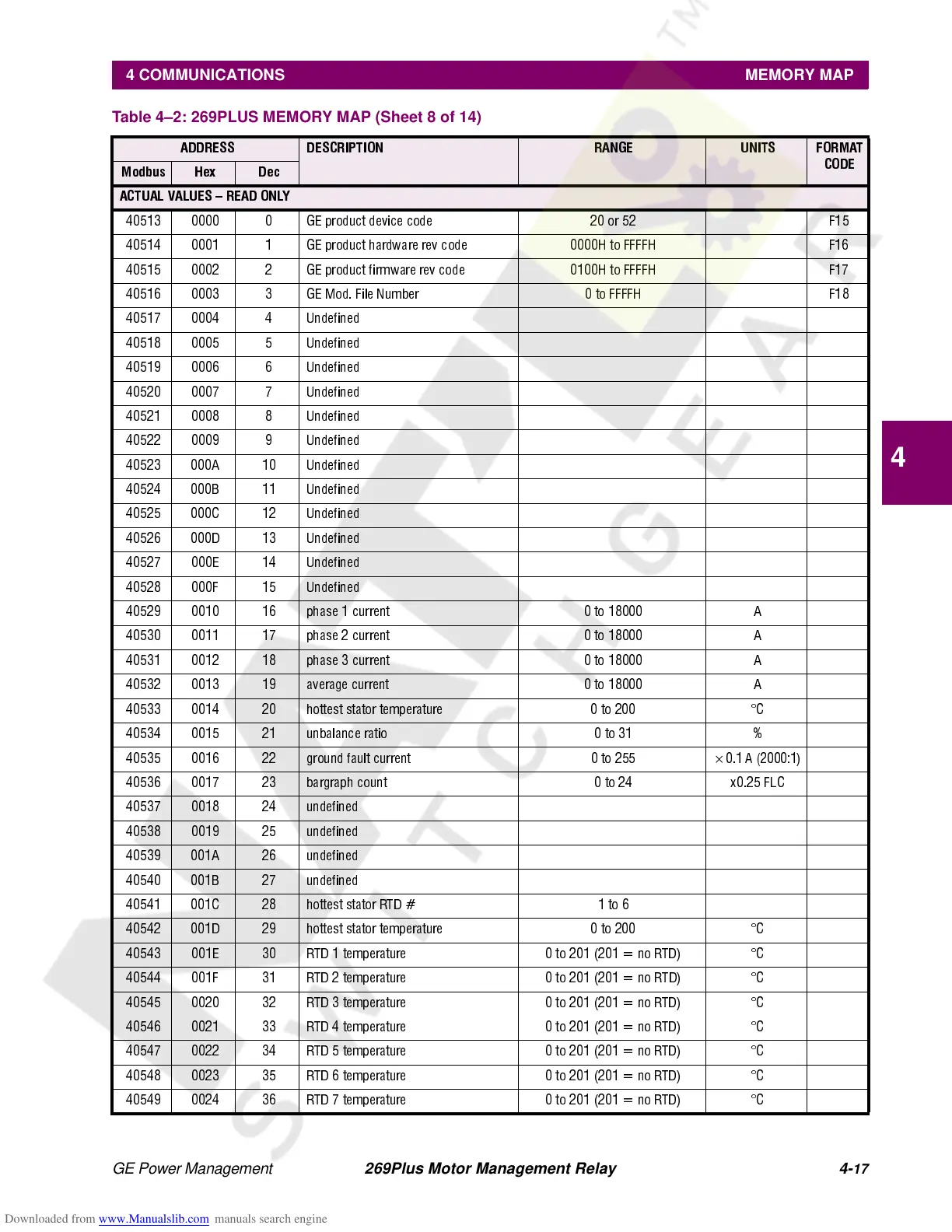

Table 4–2: 269PLUS MEMORY MAP (Sheet 8 of 14)
