MEMORY MAP 4 COMMUNICATIONS
4
40550 0025 37 RTD 8 temperature 0 to 201 (201 = no RTD) °C
40551 0026 38 RTD 9 temperature 0 to 201 (201 = no RTD) °C
40552 0027 39 RTD 10 temperature 0 to 201 (201 = no RTD) °C
40553 0028 40 hottest stator RTD # since last acc. 1 to 6
40554 0029 41 hottest stator temp. since last acc. 0 to 200 °C
40555 002A 42 max. RTD 7 since last acc. 0 to 200 °C
40556 002B 43 max. RTD 8 since last acc. 0 to 200 °C
40557 002C 44 max. RTD 9 since last acc. 0 to 200 °C
40558 002D 45 max. R TD 10 since last acc. 0 to 200 °C
40559 002E 46 undefined
40560 002F 47 undefined
40561 0030 48 undefined
40562 0031 49 undefined
40563 0032 50 # of O/V trips since last commissioning 0to255
40564 0033 51 estimated-time-to-trip 0 to 65535 (65535 = no reading) sec.
40565 0034 52 motor load (% Full load) 0 to 1200 %
40566 0035 53 thermal capacity used 0 to 100 %
40567 0036 54 starts/hr counter 1 0 to 60 min.
40568 0037 55 starts/hr counter 2 0 to 60 min.
40569 0038 56 starts/hr counter 3 0 to 60 min.
40570 0039 57 starts/hr counter 4 0 to 60 min.
40571 003A 58 starts/hr counter 5 0 to 60 min.
40572 003B 59 running hours since commissioning 0 to 65535 hrs.
40573 003C 60 # of starts since commissioning 0 to 65535
40574 003D 61 # of trips since commissioning 0 to 65535
40575 003E 62 # of O/L trips since commissioning 0 to 255
40576 003F 63 # of Rapid trips since commissioning 0to255
40577 0040 64 # of U/B trips since commissioning 0 to 255
40578 0041 65 # of G/F trips since commissioning 0 to 255
40579 0042 66 # of RTD trips since commissioning 0 to 255
40580 0043 67 # of start trips since commissioning 0 to 255
40581 0044 68 # of S/C trips since commissioning 0 to 255
40582 0045 69 MegaWattHours since commissioning 0 to 65535 MWhr
40583 0046 70 undervoltage trips since commissioning 0to255
40584 0047 71 power factor trips since commissioning 0to255
40585 0048 72 voltage phase reversal trips since
commissioning
0to255
40586 0049 73 Motor Alarm Status 2 0 to 255 F21

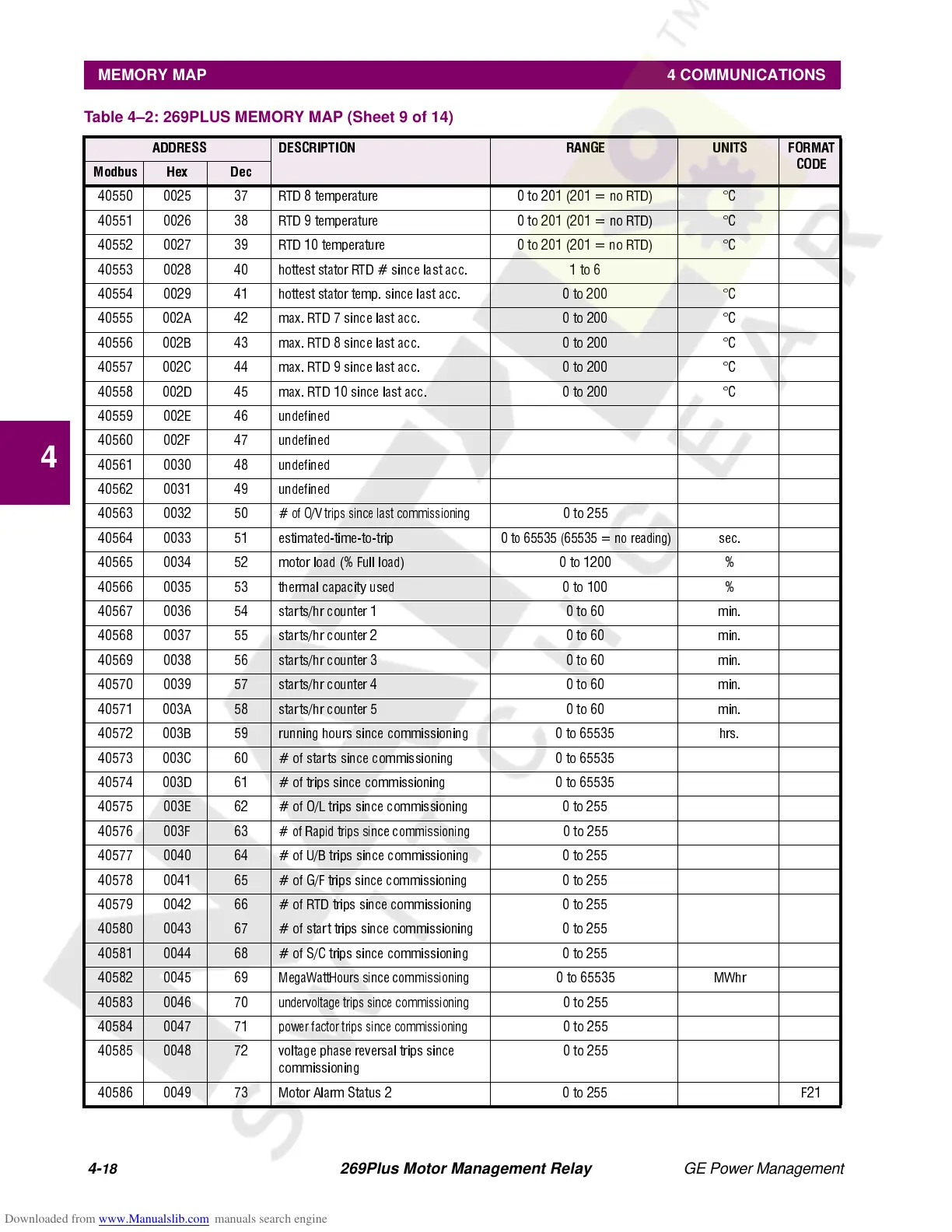

Table 4–2: 269PLUS MEMORY MAP (Sheet 9 of 14)
