GE 269Plus

GE Power Management 269Plus Motor Management Relay 4- 19
4 COMMUNICATIONS MEMORY MAP
4
40587 004A 74 Motor Trip Status 2 0 to 255 F22
40588 004B 75 Lotemp Alarm RTD Num 1 to 10
40589 004C 76 Reserved
40590 004D 77 Motor Current Status 0 to 3 F23
40591 00 4E 78 Moto r Alar m Statu s 1 0 to 6 5535 F19
40592 00 4F 79 Moto r Trip Sta tu s 1 0 to 6 5535 F20
40593 005 0 80 Inhibit Type 37H to 3AH F24
40594 005 1 81 Meter Failure Type 3BH to 3CH F25
40595 005 2 82 Setpoint Statu s bits Register 1 0 to 6 5535 F13
40596 0053 83 Setpoint Status bits Register 2 0 to 65535 F14
40597 0054 84 LEDATA 0 to 255 F26
40598 0055 85 Lockout Time 0 to 60 min.
40599 0056 86 Pre-Trip average current 0 to 18000 A
40600 0057 87 Pre-Trip unbalance ratio 0 to 31 %
40601 0058 88 Pre-Trip ground fault current 0 to 255 × 0.1 A (2000:1)
40602 0059 89 Pre-Trip maximum stator # 1 to 6
40603 005A 90 Pre-Trip maximum stator temp. 0 to 200 °C
40604 005B 91 Pretrip Average Voltage 0 to 65535 V
40605 005C 92 Pretrip Watts 0 to 65535 kW
40606 005D 93 Pretrip VARS 0 to 65535 kvars
40607 005E 94 Pretrip Power Factor 0 to 100 (100 = OFF) × 0.01
40608 005F 95 Pretrip Power Factor sign 4E H, 5D H, 5E H F29
40609 0060 96 Pretrip Frequency 0, 400 to 720 (0 = out of range) × 0.1
40610 0061 97 Tripped RTD Trip Level 0 to 200 °C
40611 0062 98 Tripped RTD Number 1 to 10
40612 0063 99 Pre-Trip kWatt Sign 35H to 36H F27
40613 0064 100 Pre-Trip kVAR Sign 35H to 36H F27
40614 0065 101 Cause of Last Trip Message 45H to 56H F28
40615 0066 102 Learned avg. Istart (avg. of 4 starts) 0 to 18000 A
40616 0067 103 Learned last Istart 0 to 18000 A
40617 0068 104 Learned K factor 3 to 19 × 0.1
40618 0069 105 Learned running cool time 5 to 60 min.
40619 006A 106 Learned stopped cool time 5 to 60 min.
40620 006B 107 Learned acceleration time 0 to 255 × 0.5 sec.
40621 006C 108 Learned start capacity 10 to 90 %
40622 006D 109 Time between starts counter 1 to 254 min.
40623 006E 110 Learned Last Start Thermal Capacity 0 to 100 %
40624 006F 111 Pre-Trip Phase 1 Current (Ia) 0 to 18000 A

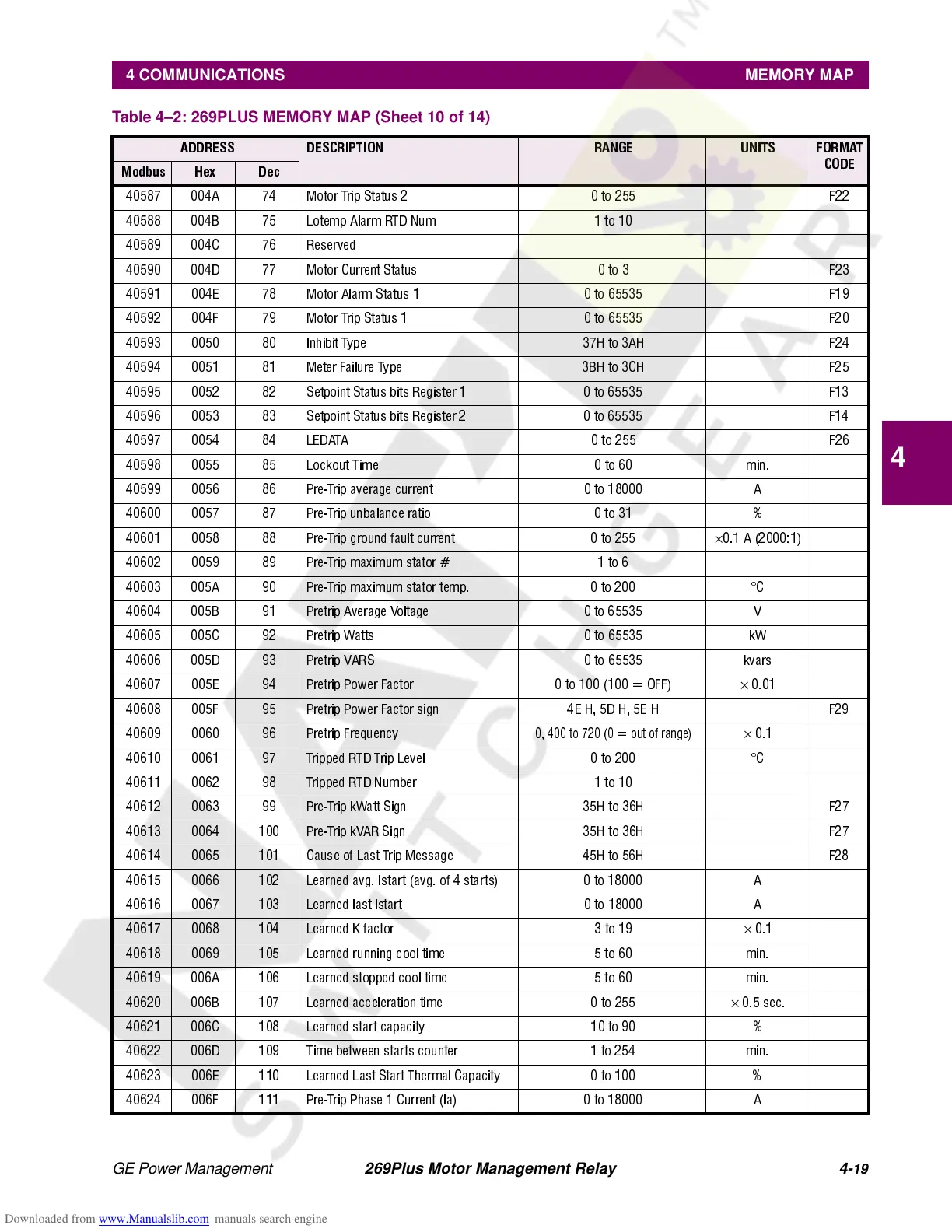

Table 4–2: 269PLUS MEMORY MAP (Sheet 10 of 14)
ADDRESS DESCRIPTION RANGE UNITS FORMAT
CODE
Modbus Hex Dec
