FORMAT CODES 4 COMMUNICATIONS
4
0000 0000 0101 1000 Undefined
0000 0000 0101 1001 Undefined
0000 0000 0101 1010 Undefined
0000 0000 0101 1111 Inhibit Lockout
F29 16 bits PowerFactorSign
0000 0000 0100 1110 ‘ ‘ Blank
0000 0000 0101 1101 Lead
0000 0000 0101 1110 Lag
F30 16 bits RTD Type
0000 0000 0000 0000 100 Ohm Platinum RTD
0000 0000 0000 0001 100 Ohm Nickel RTD
0000 0000 0000 0010 120 Ohm Nickel RTD
0000 0000 0000 0011 10 Ohm Copper RTD
F31 16 bits Serial Number Letter Code
0000 0000 0110 0001 Hardware Revision “C”
0000 0000 0110 0010 Hardware Revision “D”
0000 0000 0110 0011 Hardware Revision “E”
0000 0000 0110 0100 Hardware Revision “B”
F32 16 bits Setpoints Status Register 3
0000 0000 0000 0001 Enable U/V Trips & Alarm if Avg. Volts = 0
0000 0000 0000 0010 Enable Differential Input to Read 52b
F33 16 bits Self Test Alarm Status
0000 0000 0001 0011 Analog to Digital (A/D) Hardware Failure Alarm
0000 0000 0001 0100 RTD Hardware (H/W) Failure Alarm
0000 0000 0001 0101 RAM Memory Failure Alarm
0000 0000 0001 1000 Board/PROM Mismatch Failure

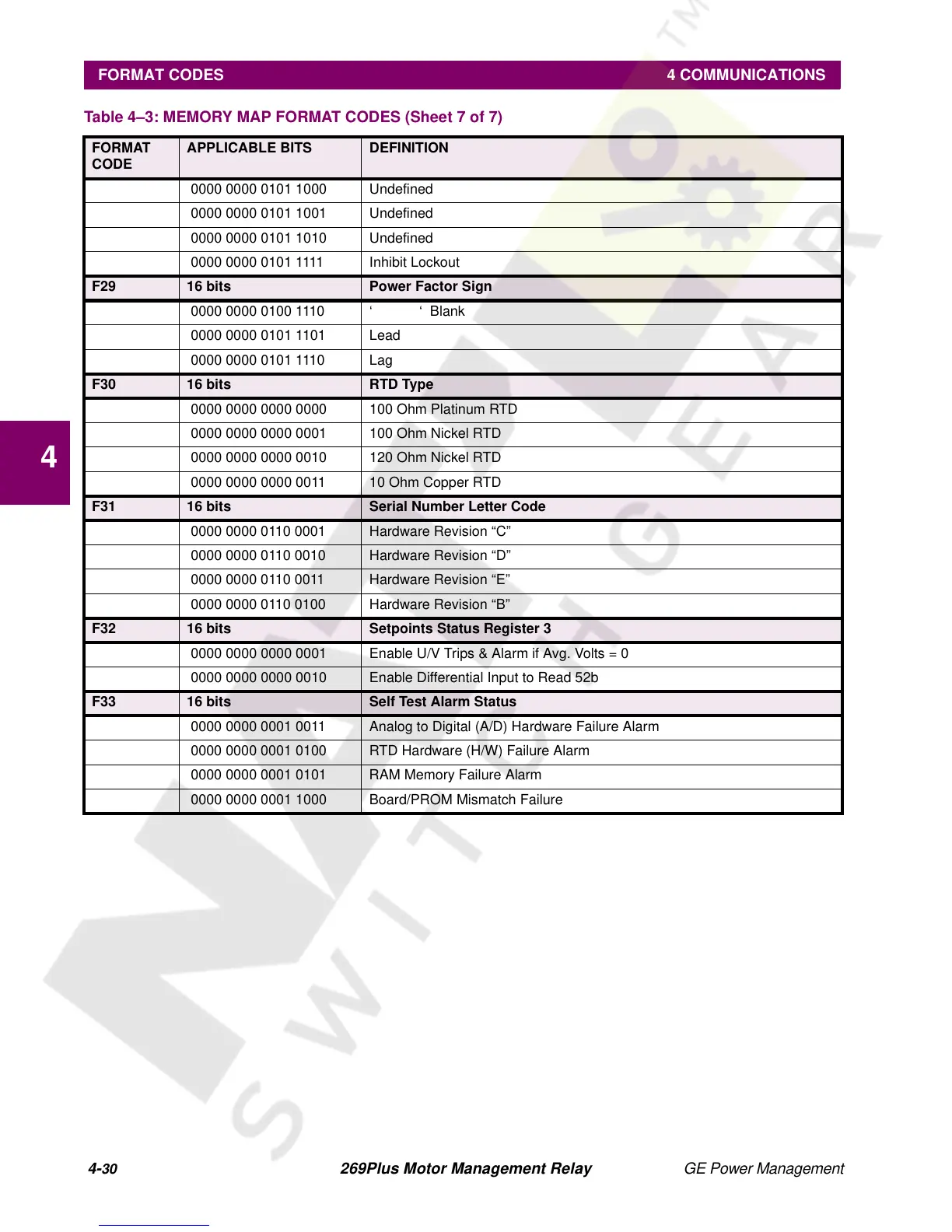

Table 4–3: MEMORY MAP FORMAT CODES (Sheet 7 of 7)
FORMAT
CODE
APPLICABLE BITS DEFINITION
