4 COMMUNICATIONS FORMAT CODES
4
0000 0000 0011 1001 Time Between Starts
0000 0000 0011 1010 Backspin Timer
F25 16 bits Meter Communication Failure Type
0000 0000 0011 1011 Incompatible Revisions
0000 0000 0011 1100 Hardware Failure
F26 16 bits Illuminated LEDs
0000 0000 0000 0001 AUX. 2 relay active
0000 0000 0000 0010 AUX. 1 relay active
0000 0000 0000 0100 ALARM relay active
0000 0000 0000 1000 TRIP relay active
0000 0000 0001 0000 undefined
0000 0000 0010 0000 undefined
0000 0000 0100 0000 undefined
0000 0000 1000 0000 undefined
F27 16 bits Power Sign
0000 0000 0011 0101 '+'
0000 0000 0011 0110 '–'
0000 0000 0100 1110 ‘ ‘ Blank
F28 16 bits Cause of Last Trip
0000 0000 0100 0101 Overload Trip
0000 0000 0100 0110 Unbalance Trip
0000 0000 0100 0111 Short Circuit Trip
0000 0000 0100 1000 Rapid Trip Trip
0000 0000 0100 1001 Stator RTD Trip
0000 0000 0100 1010 RTD Trip
0000 0000 0100 1011 Ground Fault Trip
0000 0000 0100 1100 Acceleration Trip
0000 0000 0100 1101 Phase Reversal Trip
0000 0000 0100 1110 BLANK - No Cause of Last Trip
0000 0000 0100 1111 Speed Switch Trip
0000 0000 0101 0000 Differential Trip
0000 0000 0101 0001 Single Phase Trip
0000 0000 0101 0010 Spare Input Trip
0000 0000 0101 0011 Power Factor Trip
0000 0000 0101 0100 Undervoltage Trip
0000 0000 0101 0101 Overvoltage Trip
0000 0000 0101 0110 Undercurrent Trip
0000 0000 0101 0111 Undefined

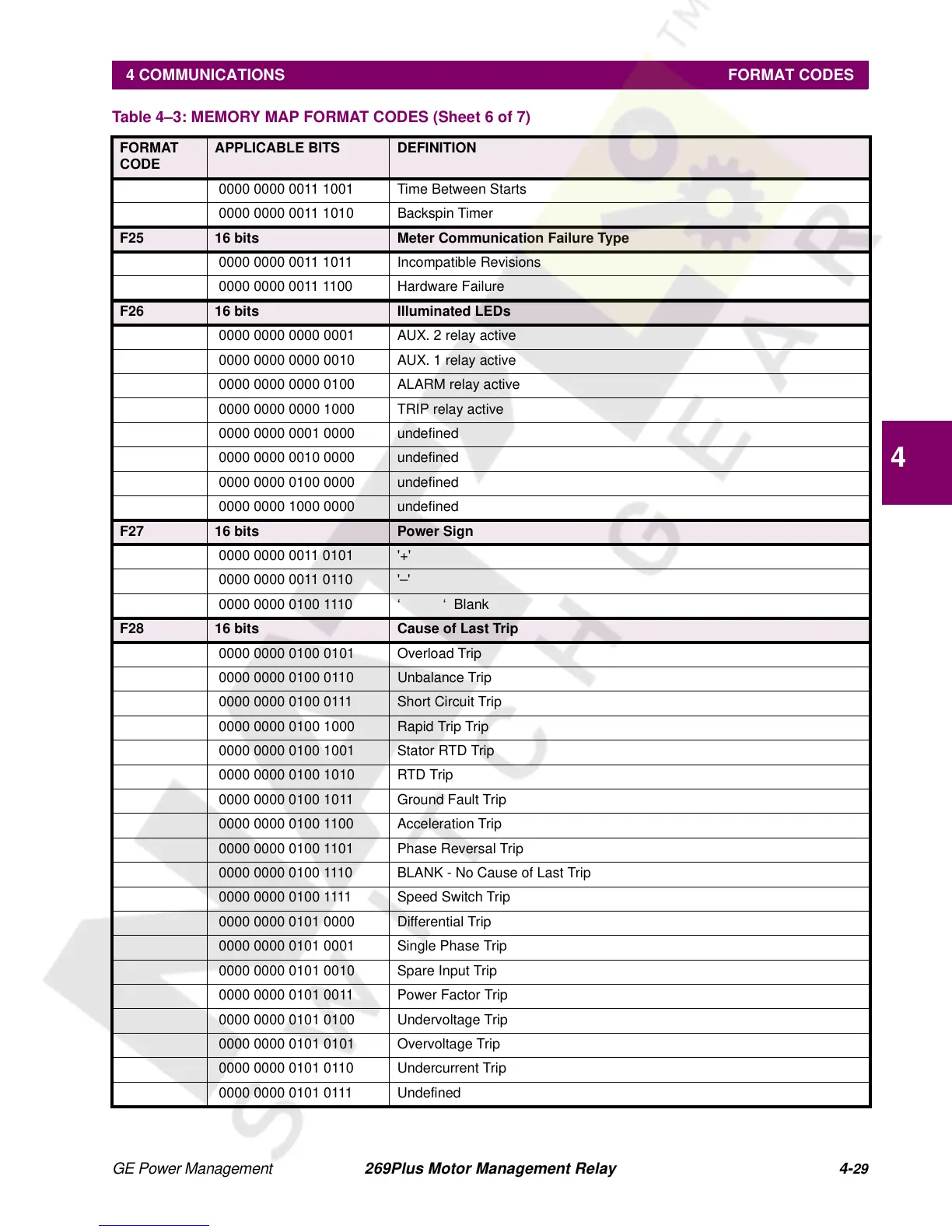

Table 4–3: MEMORY MAP FORMAT CODES (Sheet 6 of 7)
FORMAT
CODE
APPLICABLE BITS DEFINITION
