269PLUS COMMISSIONING SUMMARY 9 COMMISSIONING
9
PAGE 7: METERING SETPOINTS
METERING SETPOINTS SET/ON LINE?
METER PHASE CT PRIMARY A
PHASE VT RATIO
METER PHASE VT SECONDARY V
ENABLE U/V TRIP & ALARM IF AVG.V=0
UNDERVOLTAGE ALARM LEVEL % VT
U/V ALARM TIME DELAY sec.
UNDERVOLTAGE TRIP LEVEL % VT
U/V TRIP TIME DELAY sec.
OVERVOLTAGE ALARM LEVEL % VT
OVERVOLTAGE ALARM TIME DELAY sec.
OVERVOLTAGE TRIP LEVEL % VT
O/V TRIP TIME DELAY sec.
BLOCK PF PROTECTION ON START?
BLOCK PF ALM. & TRIP ON START BY
7
sec.
PF PROTECTION DELAY
6
sec.
POWER FACTOR LEAD ALARM LEVEL
POWER FACTOR LAG ALARM LEVEL
POWER FACTOR ALARM TIME DELAY
POWER FACTOR LEAD TRIP LEVEL
POWER FACTOR LAG TRIP LEVEL
POWER FACTOR TRIP TIME DELAY sec.
POSITIVE KVAR ALARM LEVEL kvars
NEGATIVE KVAR ALARM LEVEL kvars
KVAR ALARM TIME DELAY sec.
ENABLE VOLTAGE PHASE REVERSAL?
ANALOG OUT SCALE FACTOR

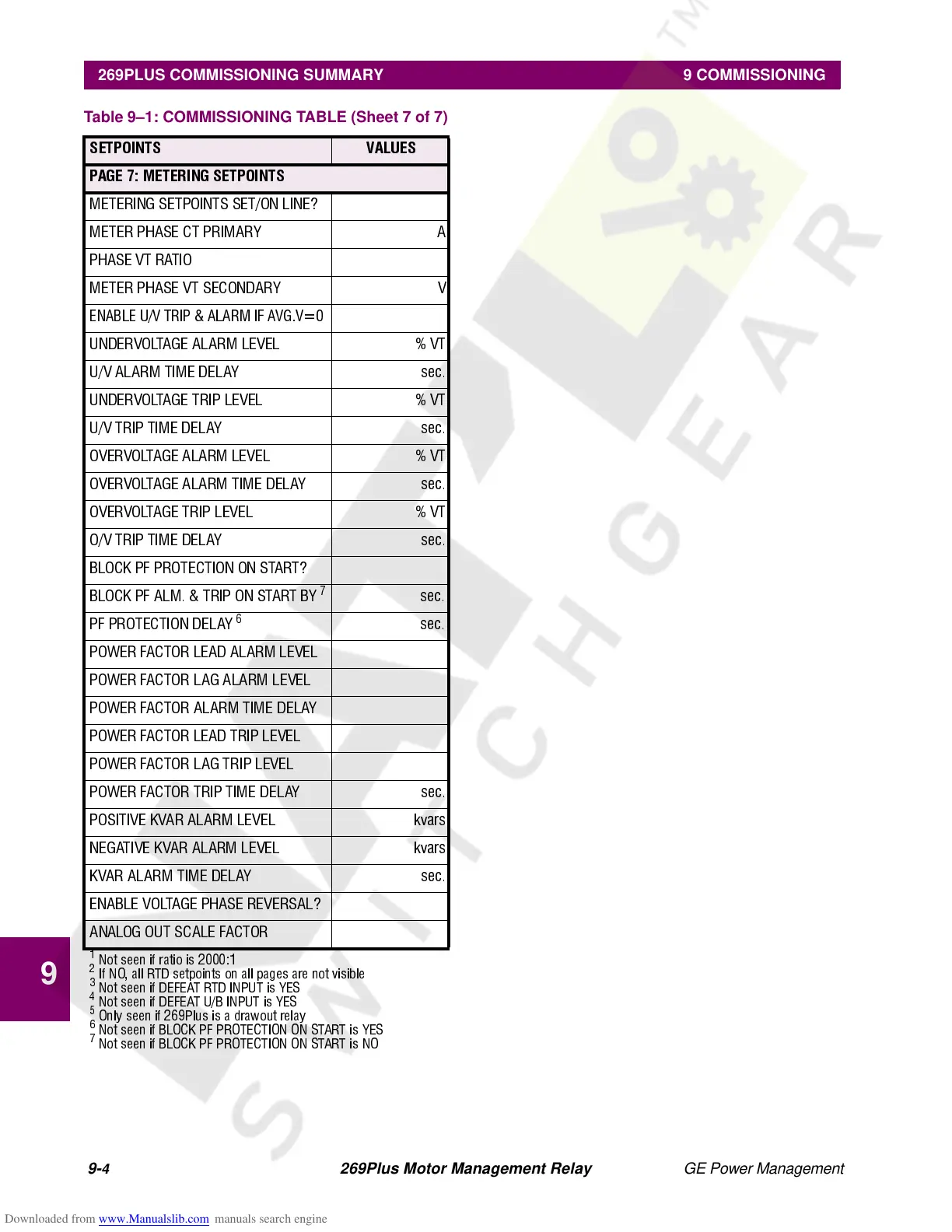

Table 9–1: COMMISSIONING TABLE (Sheet 7 of 7)
SETPOINTS VALUES
1
Not seen if ratio is 2000:1
2
If NO, all RTD setpoints on all pages are not visible
3
Not seen if DEFEAT RTD IN PUT is YES
4
Not seen if DEFEAT U/B INPUT is YES
5
Only seen if 269Plus is a drawout relay
6
Not seen if BLOCK PF PROTECTION ON START is YES
7
Not seen if BLOCK PF PROTECTION ON START is NO
