GE 269Plus

3- 20 269Plus Motor Management Relay GE Power Management
SETPOINTS MODE 3 SETUP AND USE
3
130 Range: 1.01 to 1.50 ×FLC or OFF, in steps of 0.01
Factory Value = OFF; Manual Reference: 3.17
131
SETPOINTS PAGE 2: RTD SETPOINTS
21
22
Range: 100 OHM PLATINUM, 10 OHM COPPER,
100 OHM NICKEL, 120 OHM NICKEL.
Displays the RTD type accepted by the relay. To
change, contact the factory. Manual Reference: 3.18
23
Range: YES or NO
If set to NO , RTD messages in Setpoints and Actual
Values are not displayed. If no RTDs are connected
and Alarm and Trip levels are set, trips will occur.
Factory Value = YES; Manual Reference: 3.18
24
Range C (° Celsius) or F (° Fahrenheit)
Factory Value = C; Manual Reference: 3.18
2 5 Range: 0 to 6 in steps of 1
Factory Value = 6; Manual Reference: 3.18
26
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
27
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
28
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18
or
Range: 0 to 200°C or OFF, in steps of 1°C
(32 to 392°F in steps of 1°F if Fahrenheit)
Factory Value = OFF; Manual Reference: 3.18

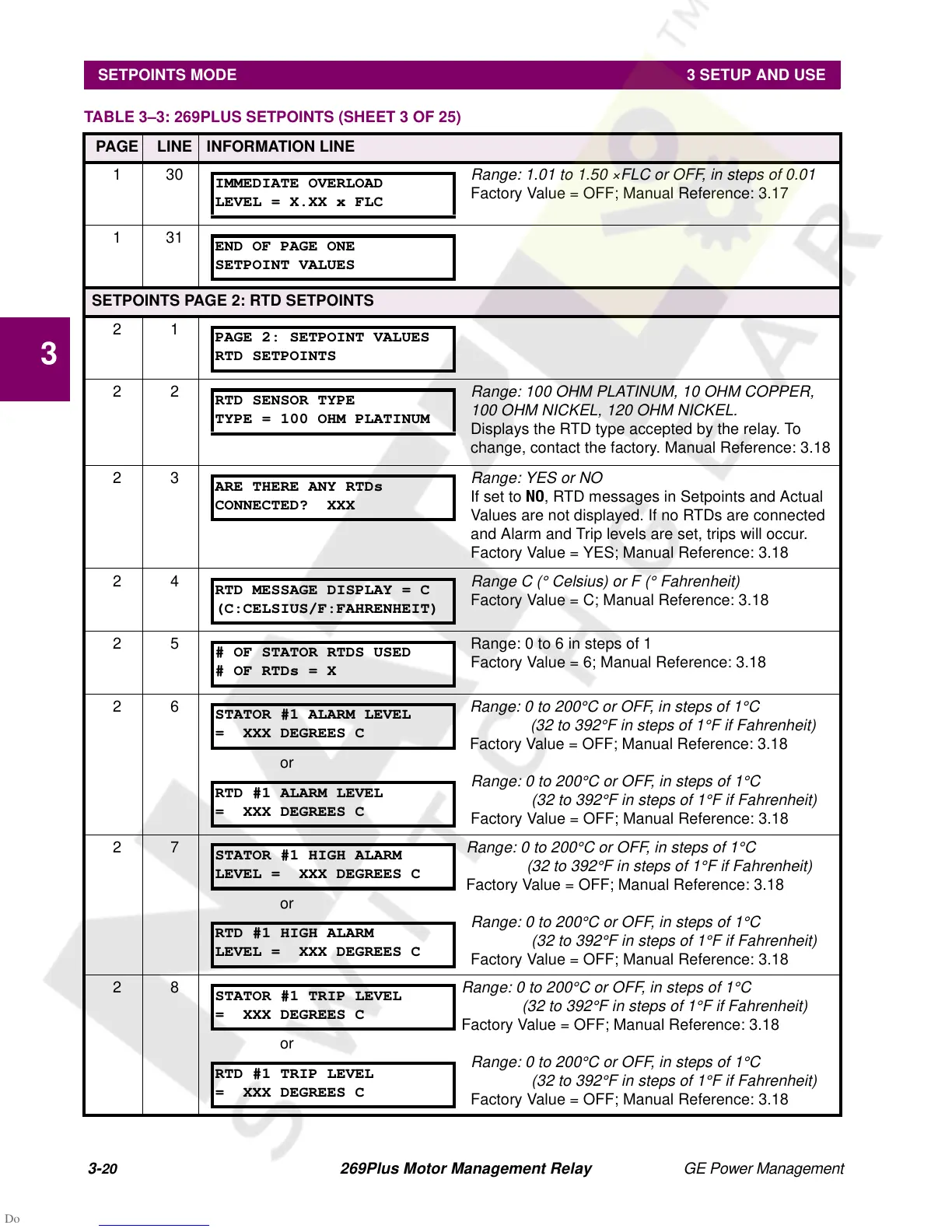

TABLE 3–3: 269PLUS SETPOINTS (SHEET 3 OF 25)
PAGE LINE INFORMATION LINE
IMMEDIATE OVERLOAD
LEVEL = X.XX x FLC
END OF PAGE ONE
SETPOINT VALUES
PAGE 2: SETPOINT VALUES
RTD SETPOINTS
RTD SENSOR TYPE
TYPE = 100 OHM PLATINUM
ARE THERE ANY RTDs
CONNECTED? XXX
RTD MESSAGE DISPLAY = C
(C:CELSIUS/F:FAHRENHEIT)
# OF STATOR RTDS USED
#OFRTDs=X
STATOR #1 ALARM LEVEL
= XXX DEGREES C
RTD #1 ALARM LEVEL
= XXX DEGREES C
STATOR #1 HIGH ALARM
LEVEL = XXX DEGREES C
RTD #1 HIGH ALARM
LEVEL = XXX DEGREES C
STATOR #1 TRIP LEVEL
= XXX DEGREES C
RTD #1 TRIP LEVEL
= XXX DEGREES C
