GE 269Plus

3- 38 269Plus Motor Management Relay GE Power Management
SETPOINTS MODE 3 SETUP AND USE
3
613
SETPOINTS PAGE 7: METERING SETPOINTS
71
This page enable the 269Plus to display and/or trip and alarm on voltage or power values
received from a GE Power Management MPM meter.
72
This setpoint enables 269Plus communications with a GE Power Management meter.
NOTE: The CT and VT ratio must be programmed before "YES" is entered for this
setpoint.
Range: YES (initiates communication and enables all page 7 setpoints)
NO (disables communicates and disables all page 7 setpoints).
Factory Value = NO
73
This message is shown when the answer to the question in the above setpoint is NO ;i.e.the
meter is not online.
74
Enter the phase CT primary value of the current transformers connected to the meter.
NOTE: Failure to enter a correct value for CT primary will result in incorrect values
from the meter!
Range: 20 to 1500 A in steps of 1 A.
Factory Value = 100
75
Enter the phase VT ratio of the voltage transformers connected to the meter.
Failure to enter a correct value for VT ratio will result in incorrect values from
the meter.
Range: 1 to 255 in steps of 1
Factory Value = 1

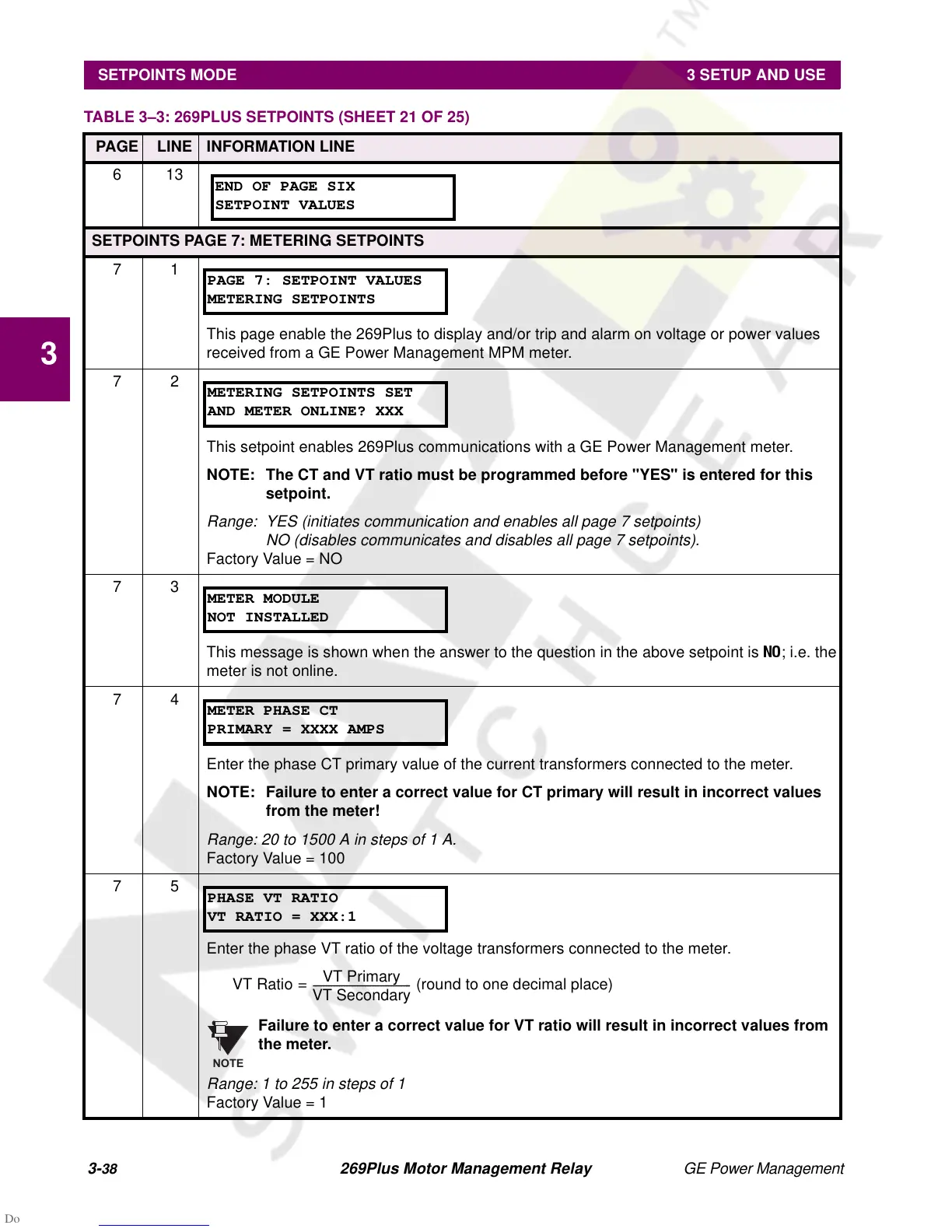

TABLE 3–3: 269PLUS SETPOINTS (SHEET 21 OF 25)
PAGE LINE INFORMATION LINE
END OF PAGE SIX
SETPOINT VALUES
PAGE 7: SETPOINT VALUES
METERING SETPOINTS
METERING SETPOINTS SET
AND METER ONLINE? XXX
METER MODULE
NOT INSTALLED
METER PHASE CT
PRIMARY = XXXX AMPS
PHASE VT RATIO
VT RATIO = XXX:1
VT Ratio
VT Primary
VT Secondary
--------------------------------------= (round to one decimal place)
NOTE
