GE 269Plus

3- 40 269Plus Motor Management Relay GE Power Management
SETPOINTS MODE 3 SETUP AND USE
3
711
This line sets the time for an undervoltage trip condition to persist in order to facilitate a trip.
Range: 1 to 255 seconds in steps of 1 sec.
Factory Value = 5 seconds
712
This line sets the threshold for the overvoltage alarm as a percentage of VT primary. The
alarm level programmed here is compared to the average voltage received from the meter.
Range: 101 to 115% of VT or OFF, in steps of 1%
Factory Value = OFF.
713
Sets the time that an overvoltage alarm must persist in order to facilitate an alarm. The alarm
level programmed here is compared to the average voltage received from the meter.
Range: 1 to 255 seconds in steps of 1 sec.
Factory Value = 10 seconds
714
This line sets the threshold for the overvoltage trip condition as a percentage of VT primary.
The trip level programmed here is compared to the average voltage received from the meter.
Range: 101 to 115% of VT or OFF, in steps of 1%
Factory Value = OFF
715
This line sets the time that an overvoltage trip must persist in order to facilitate a trip.
Range: 1 to 255 seconds in steps of 1 sec.
Factory Value = 5 seconds
716
When programmed to YES ,the PF PROTECTION DELAY setpoint is not shown. Instead, the
BLOCK PF ALARM & TRIP ON START setpoint is shown.
Range: YES ( BLOCK PF ALARM & TRIP ON START BY is shown and may be enabled; PF
PROTECTION DELAY
is not shown), NO ( BLOCK PF ALARM & TRIP ON START BY is not
shown;
PF PROTECTION DELAY is shown and may be enabled)
Factory Value = NO

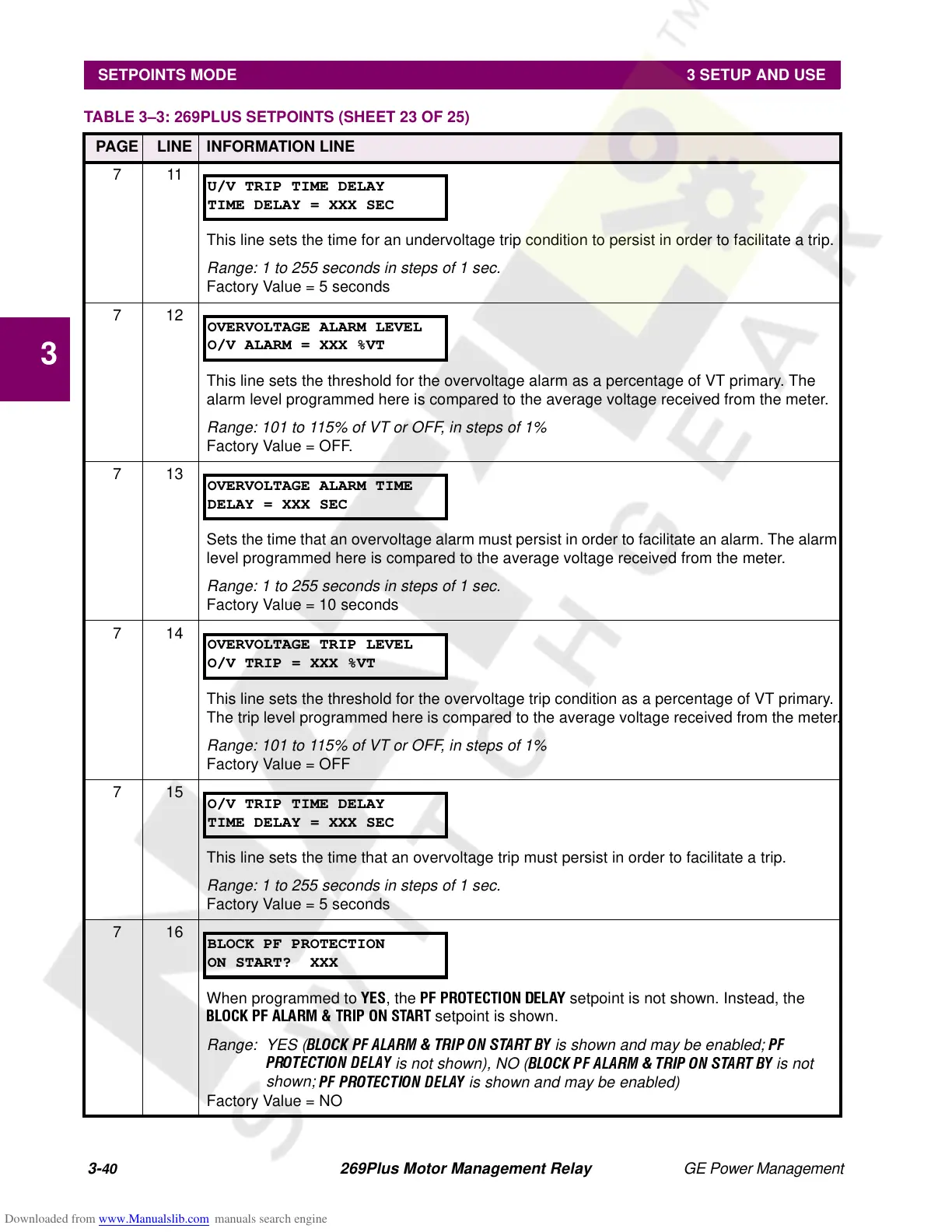

TABLE 3–3: 269PLUS SETPOINTS (SHEET 23 OF 25)
PAGE LINE INFORMATION LINE
U/V TRIP TIME DELAY
TIME DELAY = XXX SEC
OVERVOLTAGE ALARM LEVEL
O/V ALARM = XXX %VT
OVERVOLTAGE ALARM TIME
DELAY = XXX SEC
OVERVOLTAGE TRIP LEVEL
O/V TRIP = XXX %VT
O/V TRIP TIME DELAY
TIME DELAY = XXX SEC
BLOCK PF PROTECTION
ON START? XXX
