GE Power Management 269Plus Motor Management Relay 3- 41
3 SETUP AND USE SETPOINTS MODE
3
717
When enabled, Power Factor alarm and trip protection are blocked from the time the motor
starts until the time delay programmed expires.
Range: 1 to 254 seconds or OFF, in steps of 1 sec. (OFF disables this function)
Factory Value = OFF
718
When enabled after a successful start, the power factor must be within range of the power
factor lead/lag trip levels for this time before the power factor trip & alarm features are active.
Range: 1 to 254 seconds or OFF, in steps of 1 sec. (OFF disables this function)
Factory Value = OFF
719
This line sets the power factor "lead" alarm threshold level for a power factor alarm condition.
Range: 0.05 to 0.99 in steps of 0.01 or OFF. Factory Value = OFF
720
This line sets the power factor "lag" alarm threshold level for a power factor alarm condition.
Range: 0.05 to 0.99 or OFF, in steps of 0.01
Factory Value = OFF
721
This line sets the time that a power factor alarm condition must persist to facilitate an alarm.
Range: 1 to 255 seconds in steps of 1 sec.
Factory Value = 10 seconds
722
This line sets the power factor "lead" trip threshold level for a power factor trip condition.
Range: 0.05 to 0.99 or OFF, in steps of 0.01
Factory Value = OFF
723
This setpoint sets the power factor "lag" trip threshold level for a power factor trip condition.
Range: 0.05 to 0.99 or OFF, in steps of 0.01
Factory Value = OFF

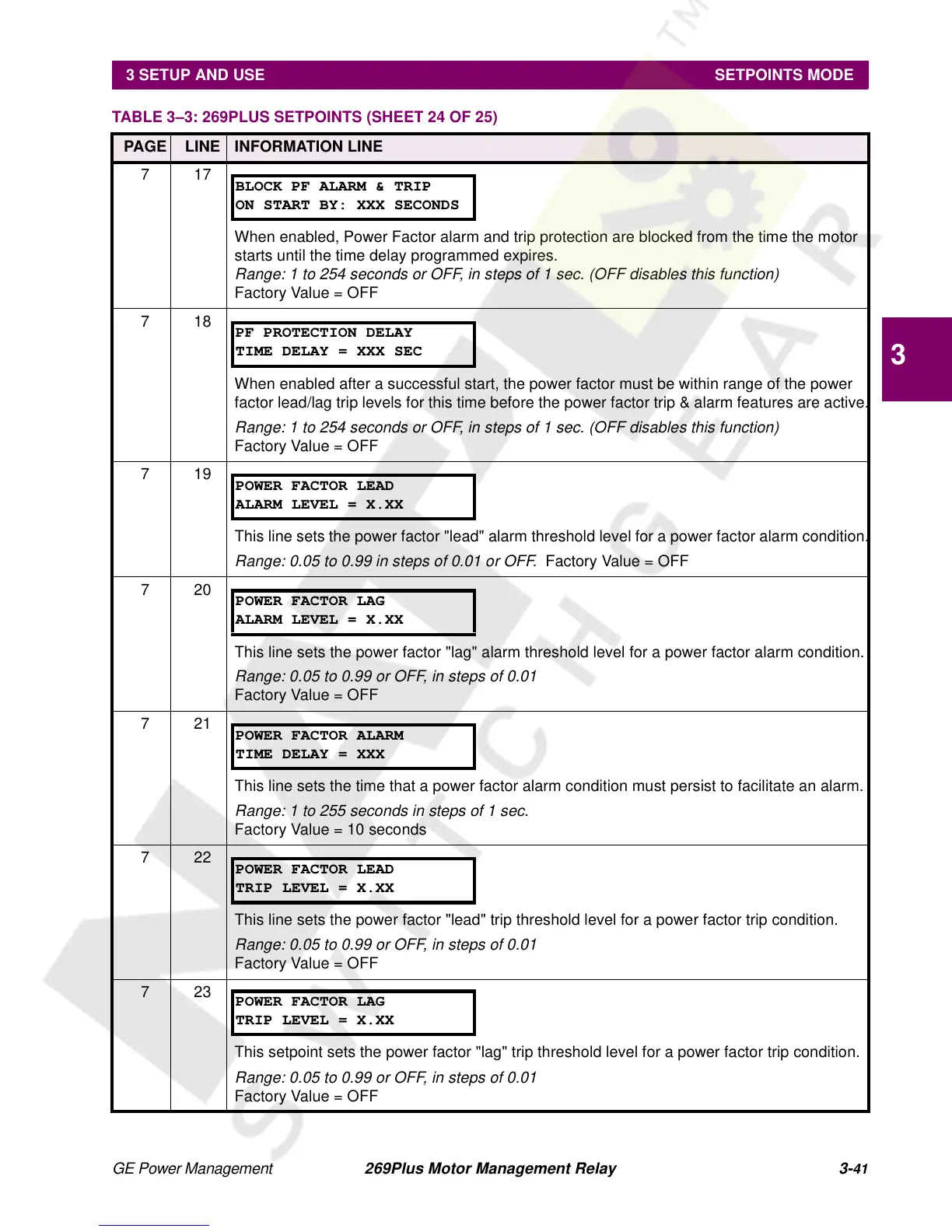

TABLE 3–3: 269PLUS SETPOINTS (SHEET 24 OF 25)
PAGE LINE INFORMATION LINE
BLOCK PF ALARM & TRIP
ON START BY: XXX SECONDS
PF PROTECTION DELAY
TIME DELAY = XXX SEC
POWER FACTOR LEAD
ALARM LEVEL = X.XX
POWER FACTOR LAG
ALARM LEVEL = X.XX
POWER FACTOR ALARM
TIME DELAY = XXX
POWER FACTOR LEAD
TRIP LEVEL = X.XX
POWER FACTOR LAG
TRIP LEVEL = X.XX
