2.2 Liquid flow path
Introduction
ÄKTA pure is a liquid chromatography system with a flexible flow path.
This section provides an overview of the liquid flow path, and its possibilities.
Example of a typical liquid flow path

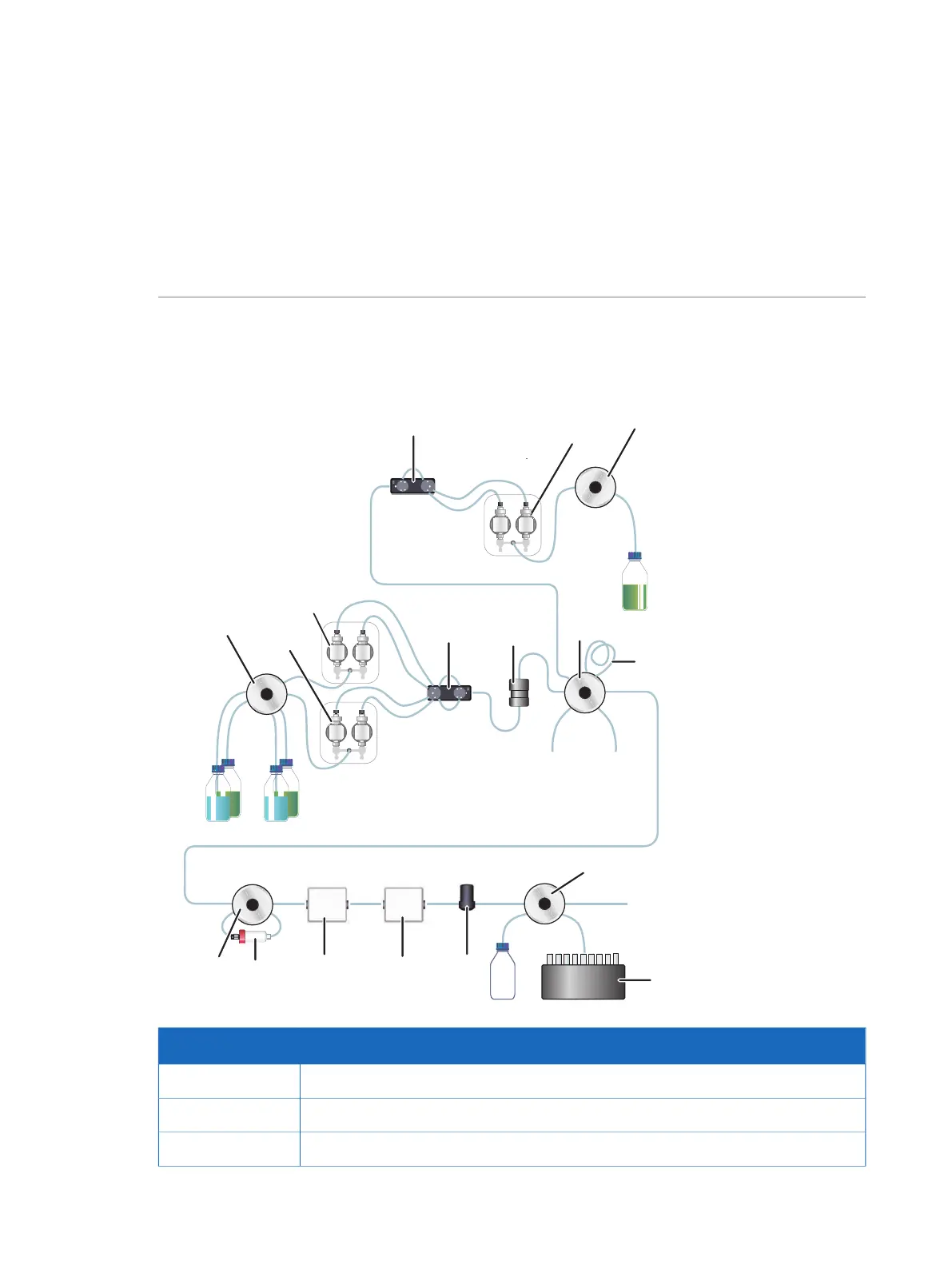

The illustration below shows the flow path for a typical system configuration. The individual instrument
modules are presented in the table below. The configuration of the system is defined by the user.
4
5
6
7
8
9
10
11
12
13
14
15
16
17
W1 W2
W
3
2
1
DescriptionPart
Pressure monitor1
Sample pump2
Sample inlet valve3
