Aisys
9-36 04/08 M1046983
9.13 Servicing the Vent Engine
The Vent Engine is found in a housing located below the breathing system bellows
assembly.

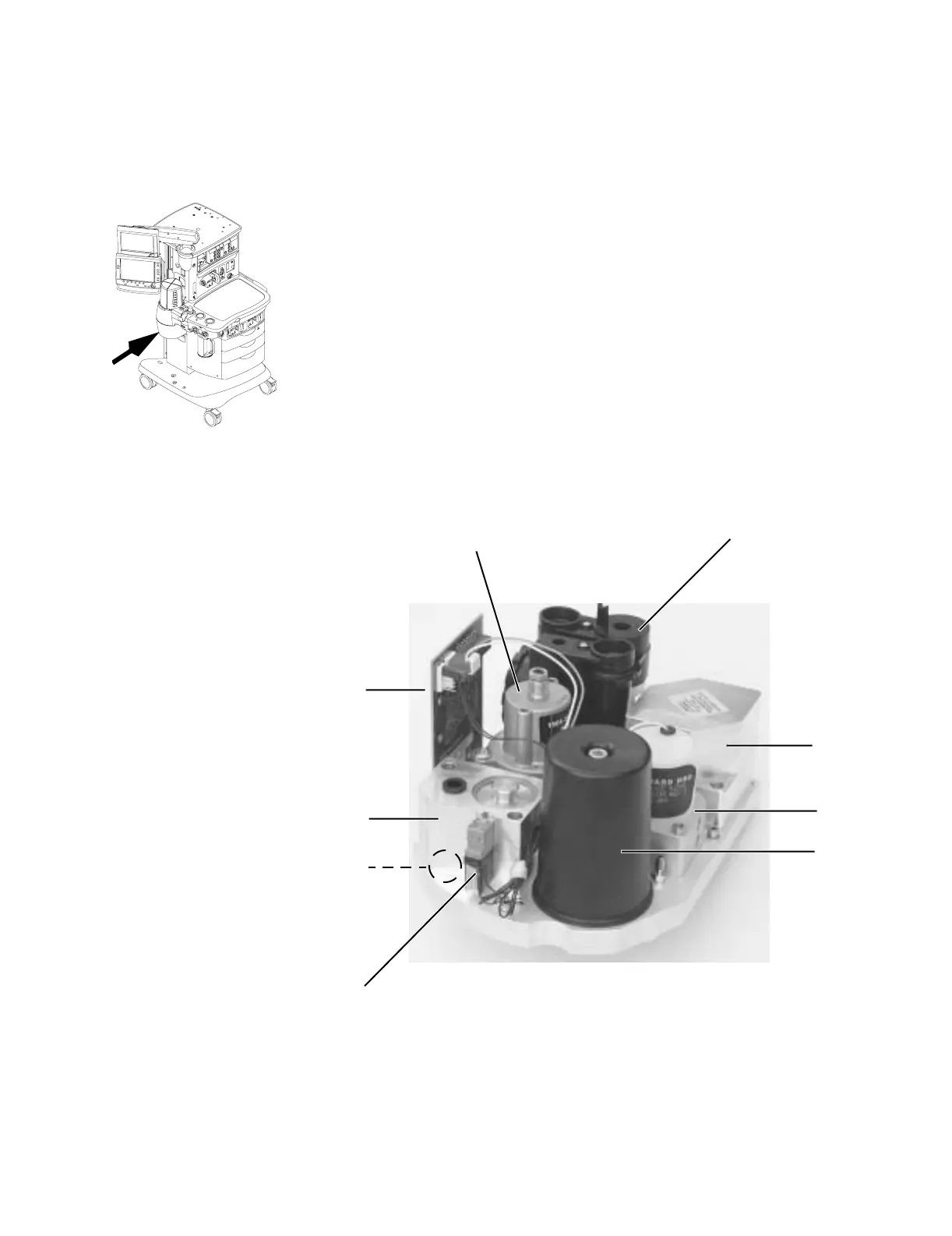

The Vent Engine includes the following subassemblies.
• Vent Engine Connector board (1)
• Gas Inlet Valve Assembly (2)
• Inlet Filter (3) - located under the gas inlet valve
• Inlet Valve Solenoid (4)
• Drive Gas Regulator (5)
• Flow Control Valve (6)
• Reservoir (7)
• Drive Gas Check Valve (8)
• Interface Manifold (9)
To replace any of the Vent Engine components, you must first remove the Vent Engine
from the housing (refer to Section 9.13.1).
1
2
7
6
8
5
9
4
3
