GE Datex-Ohmeda Aisys Carestation User Manual

2 Theory of Operation
M1046983 04/08 2-15

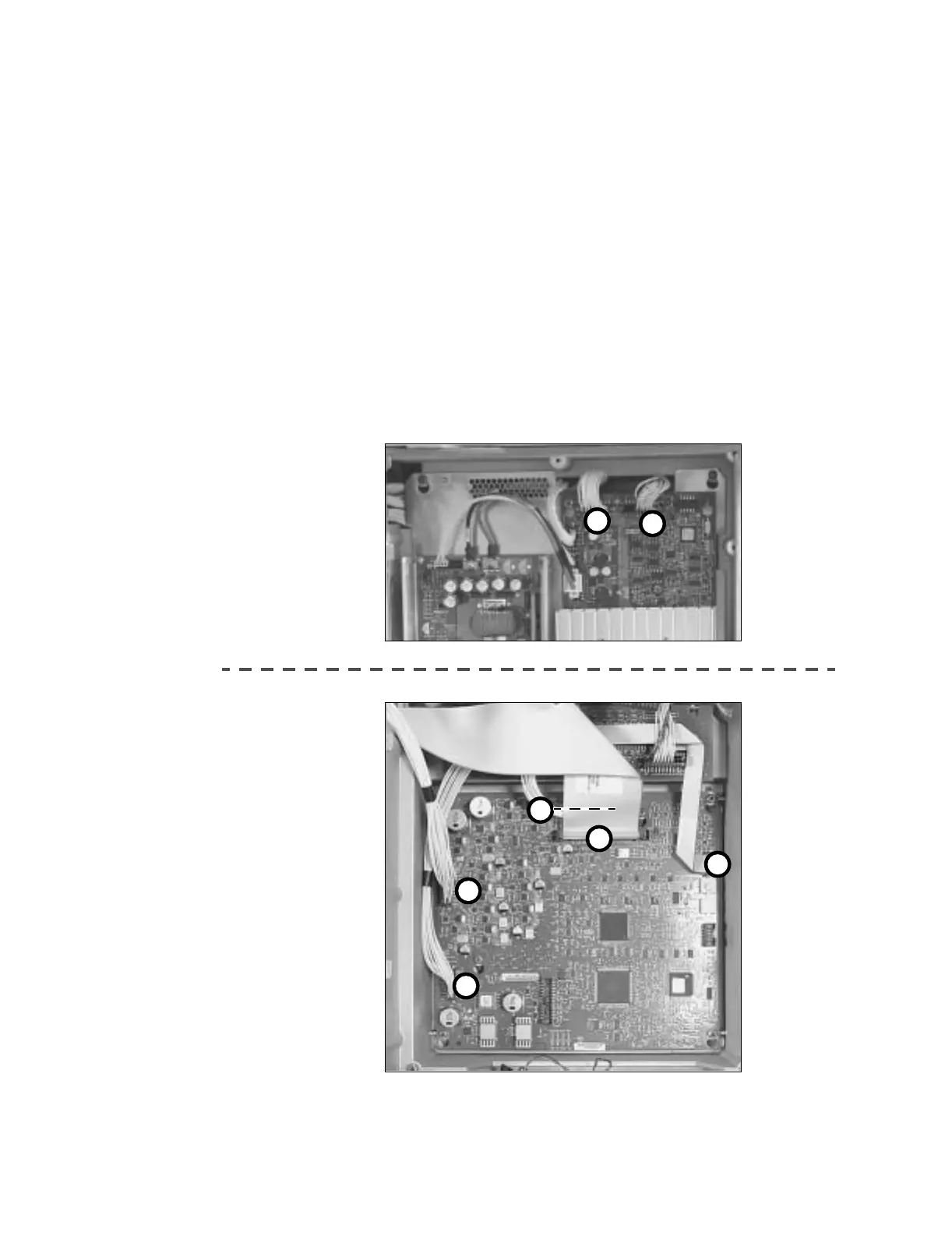

2.6 Power Controller and Anesthesia Control board connections
The Power Controller:
• Distributes 12.5 VDC power and communicates with the Display Unit (by way of the
Display Connector board) through connector (10).
• Distributes 12.5 VDC power to the Anesthesia Control board through connector (14).
The Anesthesia Control board:
• Receives power from the Power Controller board through connector (14).
• Distributes 10VA power supplies to the Pan Connector board through connector (15).
• Communicates with Pan assemblies through connector (16).
• Communicates with Display Unit through connector (12).
• Distributes 10VA power supplies to the Display Unit through connector (11).
14
10
16
11
12
15
14
Anesthesia Control board
Power Controller board
