Aisys
10-36 04/08 M1046983
10.26 Electronic Vaporizer

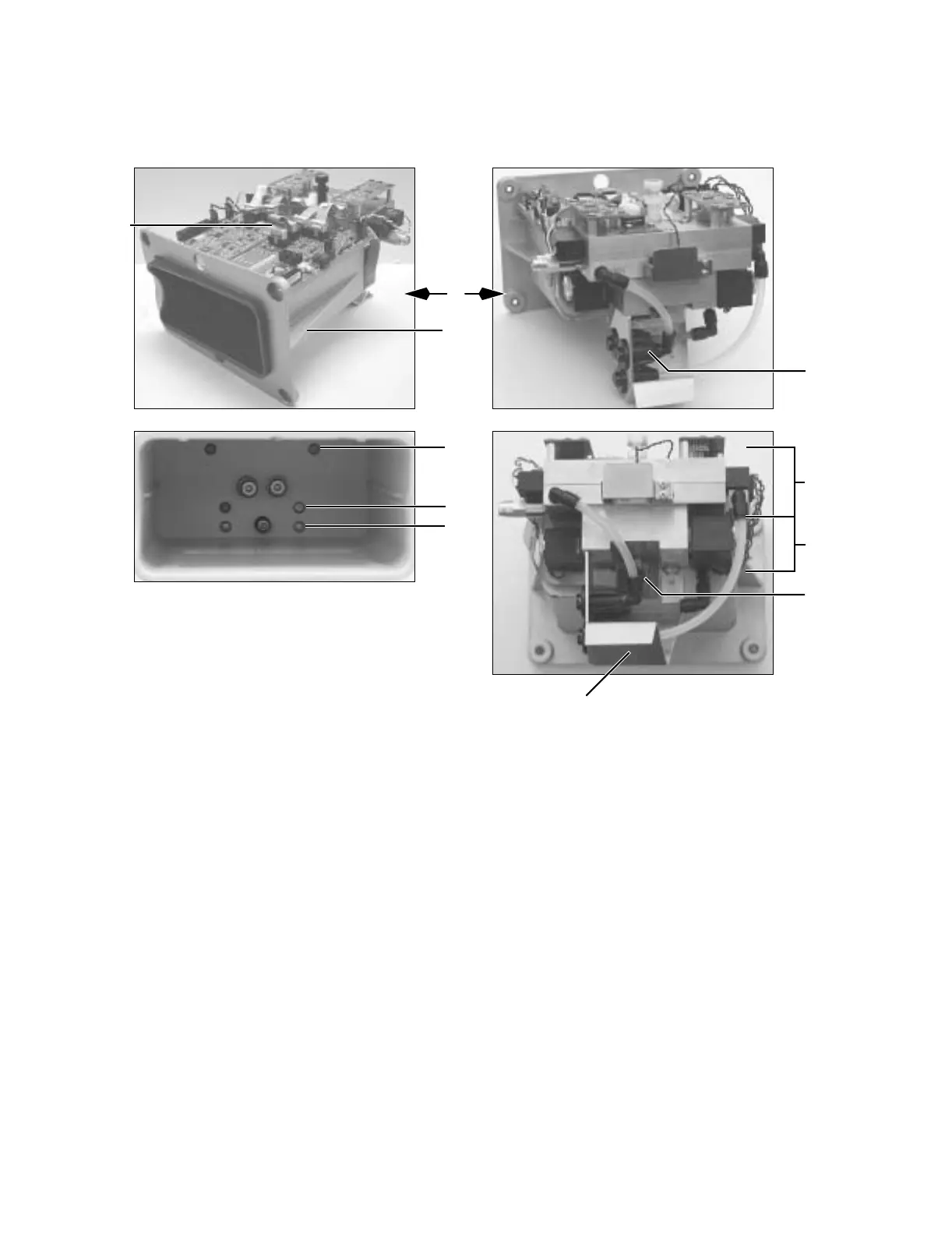

Item Description Stock Number Qty
1 Electronic Vaporizer Assembly 1011-7004-000-S
2* Cassette Bay, with Insulator installed 1011-3054-000-S
3 Cable, Jumper 1011-3552-000
4 Screw, M4x8 BT SKT HD SST Type 316 (6) 0140-6226-118 (6)
5** Bracket, Support 1011-3137-000
6Union, Snap-in Bulkhead, 1/4-inch M1130871 (3)
7 Flowmeter Subassembly Refer to Section
10.26.3
8Valve Block Subassembly Refer to Section
10.26.2
9 Cassette Temperature Subassembly 1011-7002-000-S
* The original cassette bay included threaded inserts to mount the Cassette Interface Board using
Sems screws. The current cassette bay uses studs to mount the Cassette Interface Board with nuts
and washers instead (hardware included in kit). Refer to Section 10.26.1 for required hardware.
** The current bracket is backwards compatible with the original bracket.
1
2
5
4
4
4
3
7
8
6
9
