2.12.4 Fresh gas and O
2
flush flow (with SCGO)
To ABS (Circle)
breathing system
Fresh gas (1) flows from the electronic vaporizer (EV) to the SCGO assembly.
With the Circle system selected, fresh gas flow is channeled to Port 3 of the breathing
system (before the inspiratory check valve).
The output of the O
2
Flush regulator (2) is channeled to the O
2
Flush valve.
When activate, O
2
flush flow joins the fresh gas flow in the SCGO assembly.

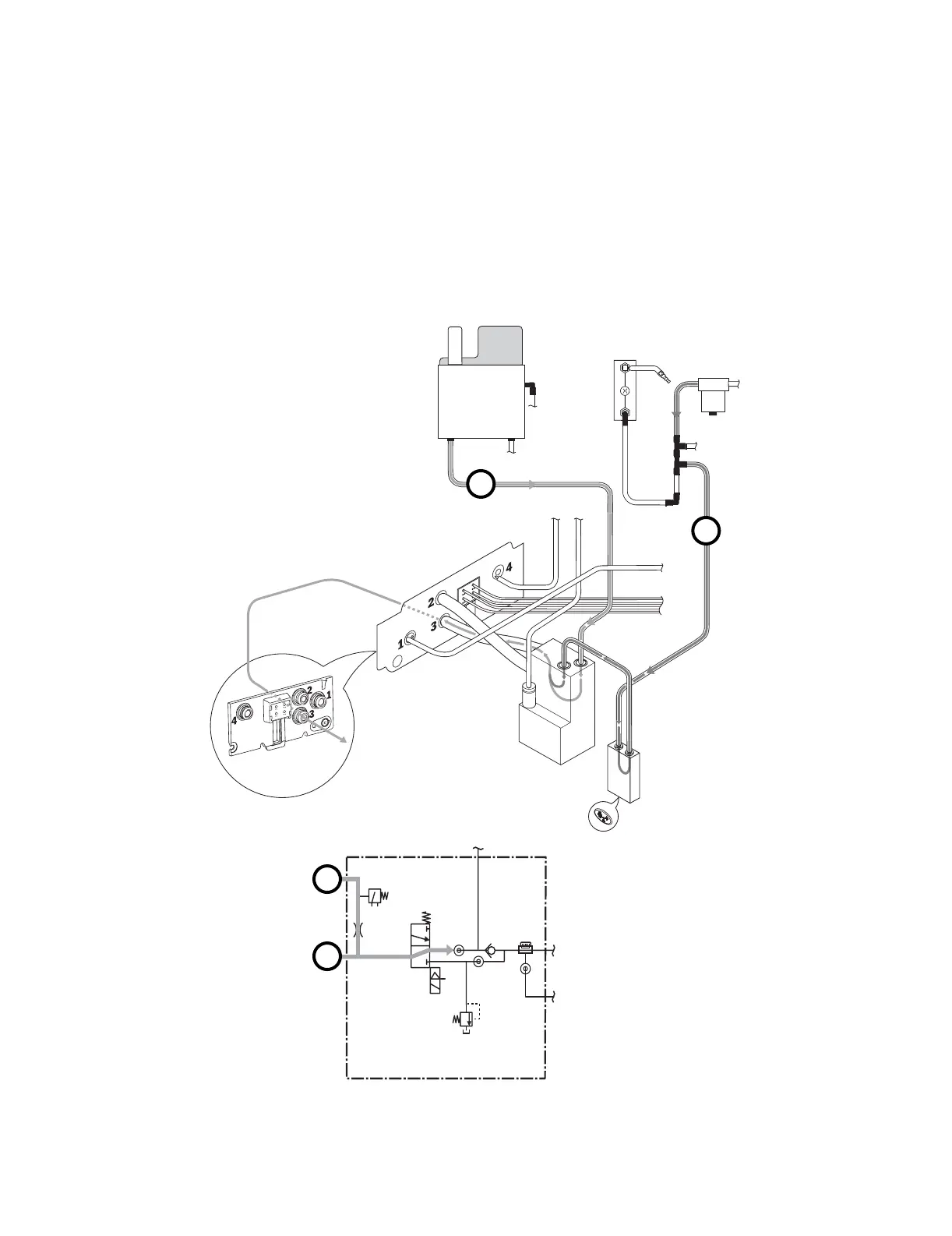

Figure 2-43 • Fresh gas and O
2
flush flow (to ABS)
1
ABS
SCGO
Assembly
2
AB.75.030
EV
Circle or CGO
Selector Switch
(SCGO)
150 cm H2O
FG Pressure
Limiting Valve
SCGO
Variant
Pilot
3
2
1
O2
Sensor
5.4 psi
O2 Flush
Switch
AB.91.118
Insp Flow
Paw Trans
From
O
2
Supply
From
Mixer
To
Mixer
To
Scavenging
Absorber
2
1

GE Datex-Ohmeda Aisys Carestation Specifications

General

Type	Anesthesia Machine
Manufacturer	GE Healthcare
Model	Aisys Carestation
Power Requirements	100-240V AC, 50/60 Hz
Display	High-resolution color touchscreen
Ventilator Type	Electronically controlled ventilator
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Gas Delivery	Oxygen, Nitrous Oxide, Medical Air
Power Supply	AC mains, Battery backup
Integrated Monitoring	Yes
Communication	Ethernet
Connectivity	Ethernet
Alarms	Comprehensive alarm system for ventilation, gas delivery, and patient monitoring parameters
