GE Datex-Ohmeda Aisys Carestation User Manual

10 Illustrated Parts
M1046983 04/08 10-37

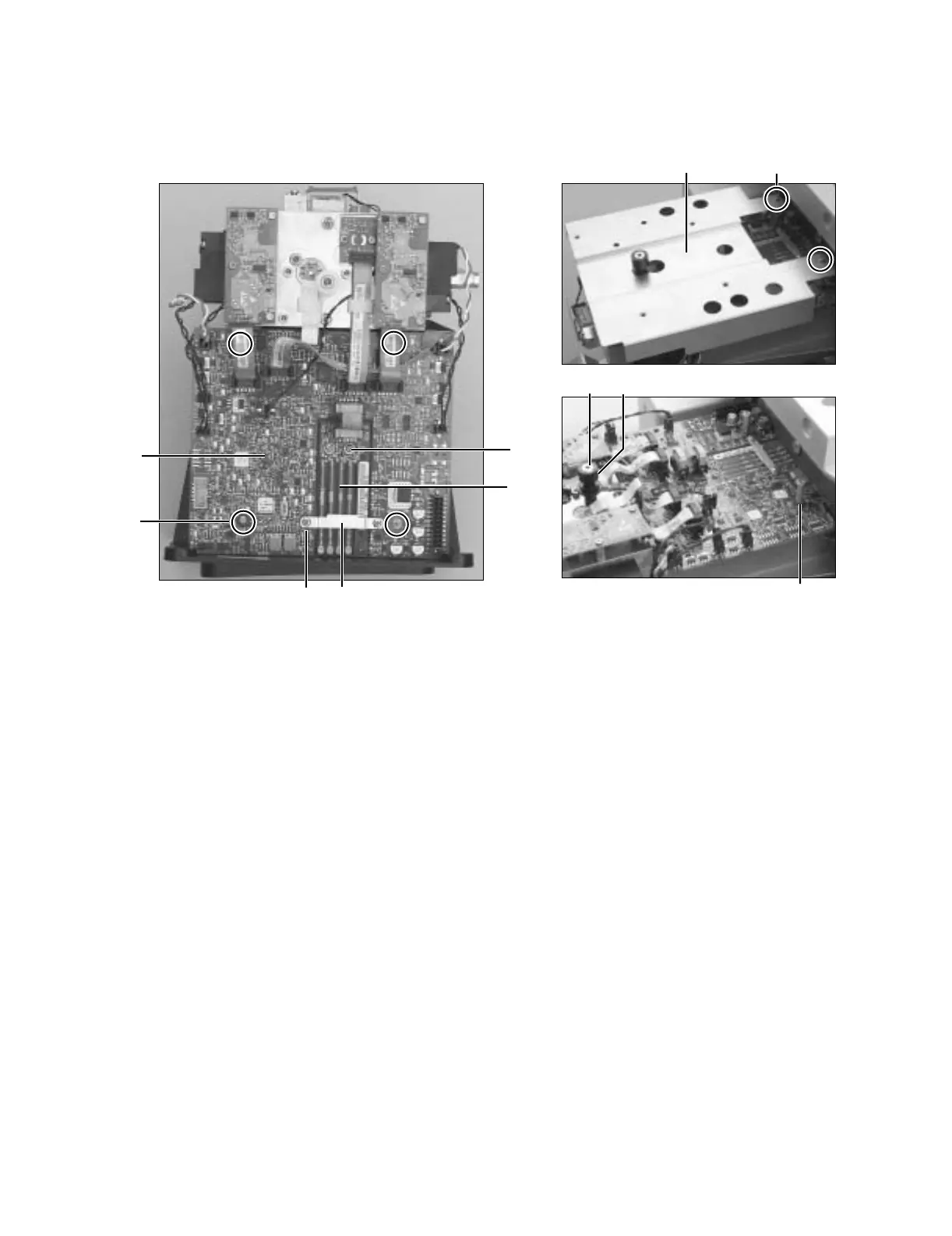

10.26.1 Electronic Vaporizer Agent Delivery
Item Description Stock Number Qty
1Agent Delivery Board 1011-3105-000-S
2 Screw, Sems M3x6 Pozidriv Pan HD 0140-6219-128 (4)
3 Cassette Interface Board 1011-3104-000-S
4Bracket, Cassette Interface Board 1011-3571-000
5 Screw M3x8 Pozidriv Pan HD N111301 (2)
6 Lockwasher, M3 External 9213-0530-003 (2)
7a* Screw, Sems M3x6 Pozidriv Pan HD 0140-6219-128 (2)
7b* Stud, M3
Nut, M3
Washer, M3
M1111335
0144-3536-112
N115001
(2)
(2)
(2)
8Cover Kit (includes Items 9 through 12) M1126638
9Standoff, M3x28 M1123585 (2)
10 Lockwasher, M3 external 9213-0530-003 (2)
11** Bolt, shoulder M1123480
12** Hanging pin M1126635
* Item 7a used with original cassette bays. Items 7b used with current cassette bays.
** Use together if replacing in an original eVap without the cover.
3
1
2
7
45
(6)
8 2
9
(10)
11 12
