GE Datex-Ohmeda Aisys Carestation User Manual

Aisys
9-56 04/08 M1046983
9.23 Reconfigure sample gas return line
Note In the U.S., it is not permitted to return sample gas to the breathing circuit.
Sample gas return is directed to the scavenging system as a factory default. Perform
the following to reroute the sample gas back to the breathing system. Refer to “Tubing”
on page 11-11.
1. Remove the tabletop (Section 9.4).

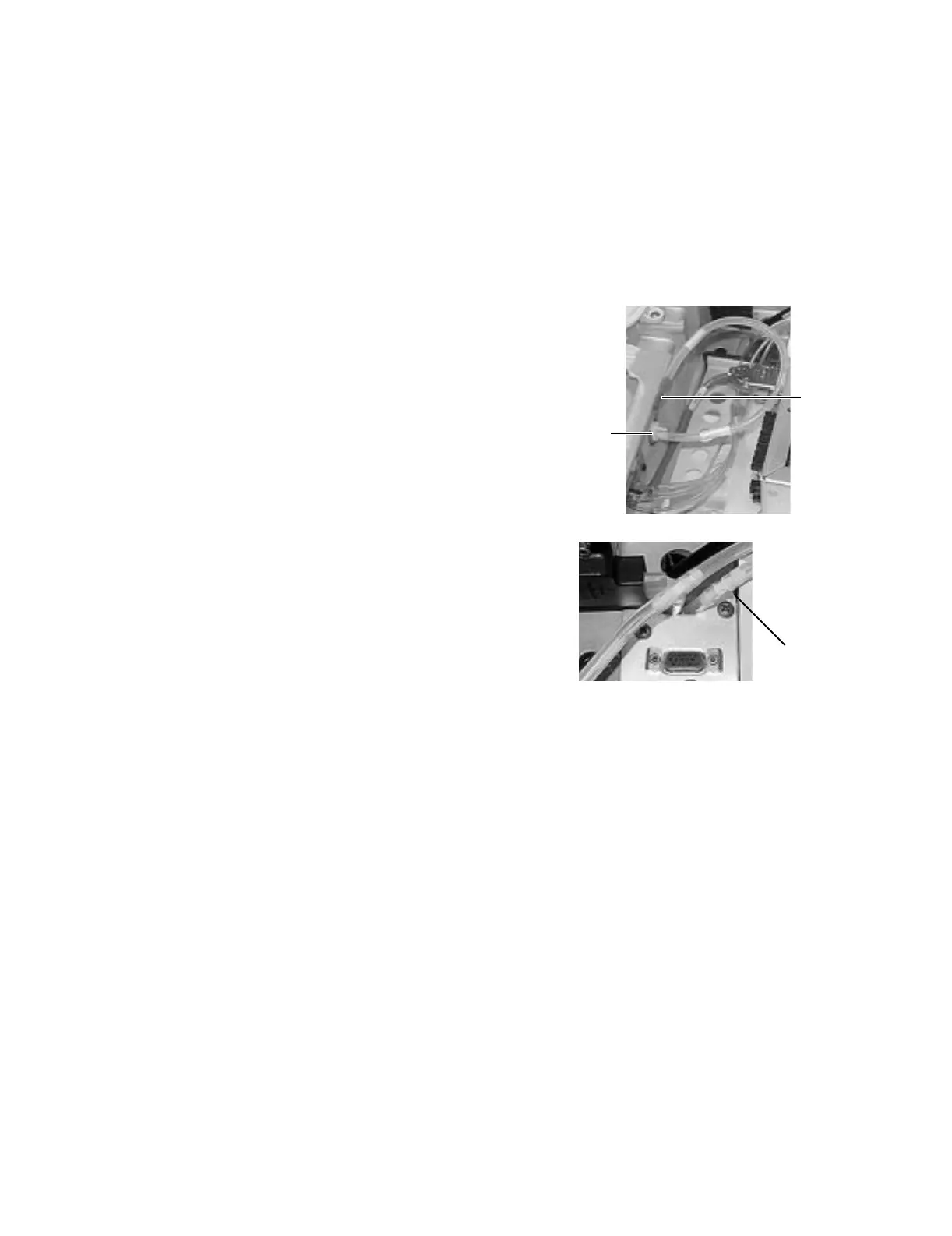

2. Port 4 (A) of the ABS breathing system
is connected to the expiratory circuit,
downstream of the expiratory check
valve. As a factory default, Port 4 is
plumbed with a length of tubing that is
plugged (B) at the far end.
3. Remove the plug from the tube.
4. Find the sample return line at the left-
rear corner of the pan assembly. The
sample return line includes an inline
connector (C) at the point where the
sample line goes down into the vent
engine housing.
5. Separate the scavenging tube,
removing the inline connector from the portion of the tube that extends into the vent
engine housing. Plug the open end of the scavenging tube with the plug removed in
step 3.
6. Insert the inline connector from the sample return port into the open tube to Port 4.
Pull on the connector to ensure that it is securely connected.
7. Replace the tabletop.
8. Perform the checkout procedure (Section 3).
B
A
C

GE Datex-Ohmeda Aisys Carestation Specifications

General

Type	Anesthesia Machine
Manufacturer	GE Healthcare
Model	Aisys Carestation
Power Requirements	100-240V AC, 50/60 Hz
Display	High-resolution color touchscreen
Ventilator Type	Electronically controlled ventilator
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Gas Delivery	Oxygen, Nitrous Oxide, Medical Air
Power Supply	AC mains, Battery backup
Integrated Monitoring	Yes
Communication	Ethernet
Connectivity	Ethernet
Alarms	Comprehensive alarm system for ventilation, gas delivery, and patient monitoring parameters
