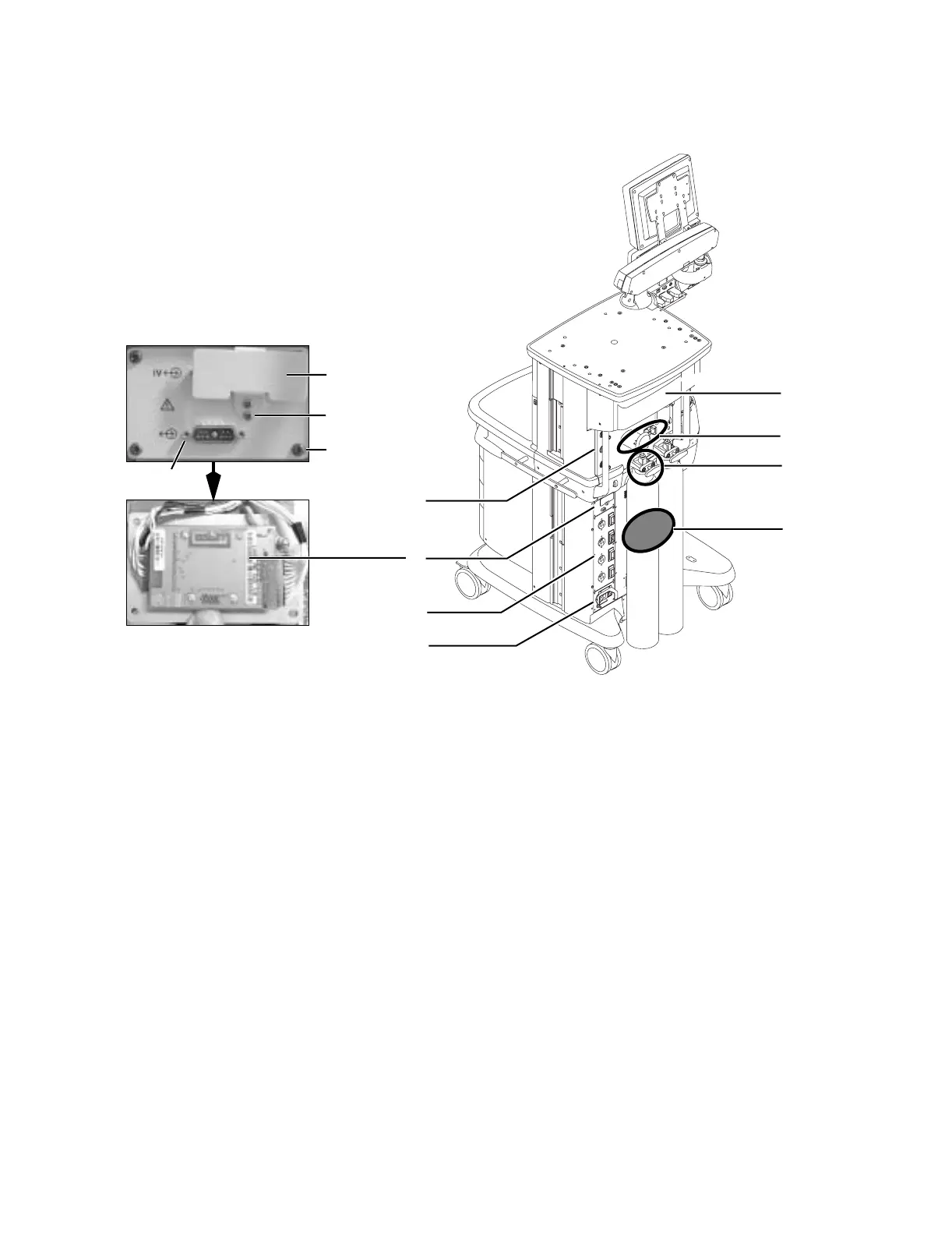

10.4 Components - rear view
AB.75.046
4
2
1
3
5
7
6
8
9
10
11
12
Item Description Stock Number
1AC Inlet Refer to Section 10.5
2AC Outlets Refer to Section 10.6
3 Pipeline Inlets Refer to Section 10.10
4Panel, cosmetic upper rear Refer to Section 10.45
5Rear panel components
Upper enclosure panel items
Refer to Section 10.20
Refer to Section 10.21
6Cylinder Gas Supplies Refer to Section 10.11
7Lower electronic enclosure components
Enclosure panel
Refer to Section 10.7
Refer to Section 10.21
8Auxiliary Connector Board 1011-3579-000
9* Screw, jacksocket hex 1011-3987-000
10 Bracket, plug guard 1011-3899-000
11 Screw, M3x8 Sems 0140-6219-130
12 Screw, M4x8 DIN84 1006-3178-000
* Apply Loctite 242.

GE Datex-Ohmeda Aisys Carestation Specifications

General

Type	Anesthesia Machine
Manufacturer	GE Healthcare
Model	Aisys Carestation
Power Requirements	100-240V AC, 50/60 Hz
Display	High-resolution color touchscreen
Ventilator Type	Electronically controlled ventilator
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Gas Delivery	Oxygen, Nitrous Oxide, Medical Air
Power Supply	AC mains, Battery backup
Integrated Monitoring	Yes
Communication	Ethernet
Connectivity	Ethernet
Alarms	Comprehensive alarm system for ventilation, gas delivery, and patient monitoring parameters
