GE Datex-Ohmeda Aisys Carestation User Manual

10 Illustrated Parts
M1046983 04/08 10-75

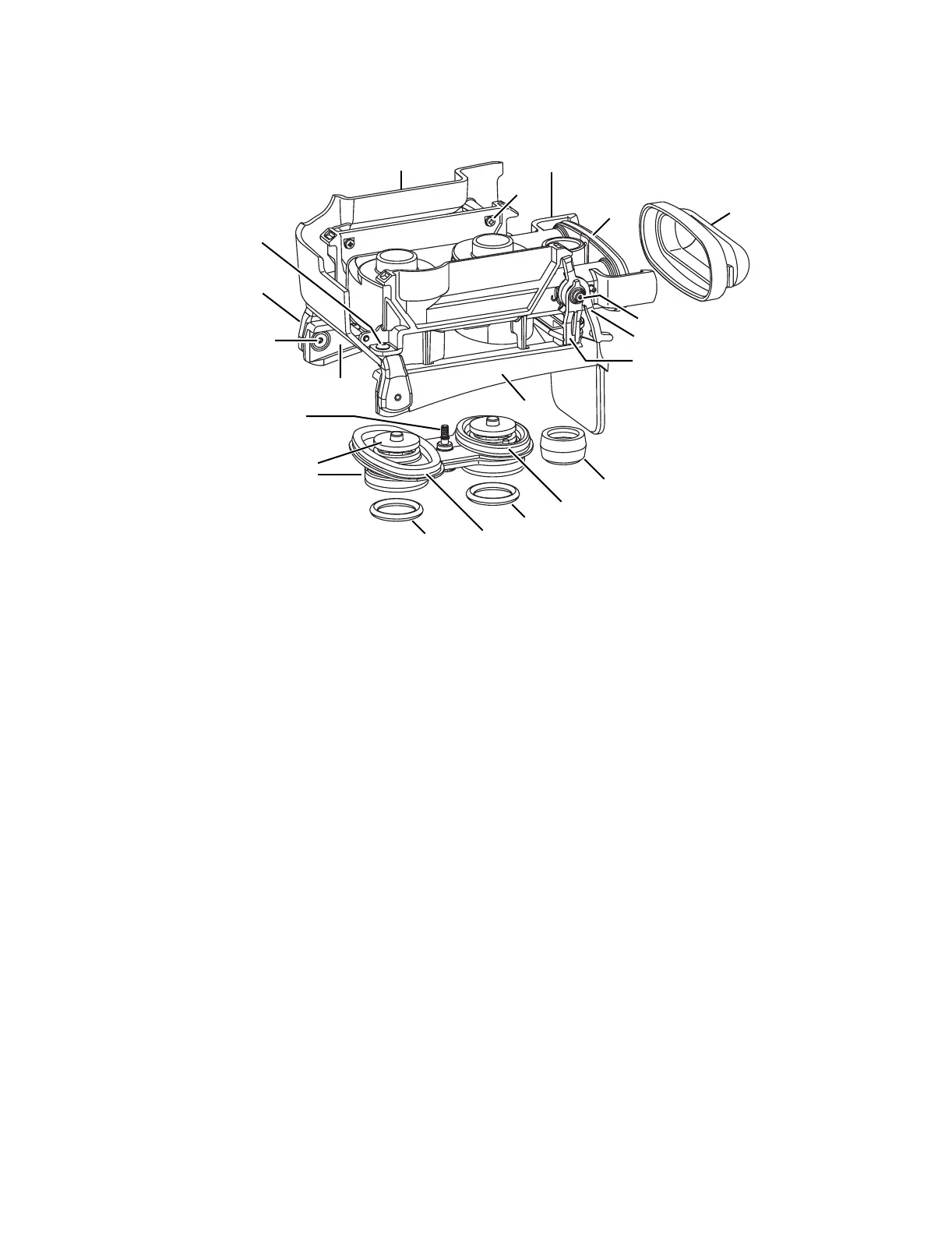

10.40.10 EZchange Canister system (CO
2
Bypass)
Item Description Stock Number Qty
EZchange Canister module 1407-7021-000
1Cover, Bypass Manifold 1407-3123-000
2 Manifold, Bypass 1407-3113-000
3 Screw, M3x8 PT PAN PH SST 0142-4254-106 (2)
4** O-ring, 59.92 ID 66.98 OD 3.53 W SIL 50 DURO 1407-3142-000
5 Cap, Manifold 1407-3130-000
6Lever, Switch Actuator 1407-3116-000
7 Spring, Torsion Switch Actuator Lever 1407-3117-000
8* Screw, M3x0.5 Shoulder 4 DIA X 4 L SST 1407-3915-000 (2)
9Lever, Canister Latch 1407-3115-000
10 Seal, Drain 1407-3121-000
11** O-ring, 37.69 ID 44.75 OD 3.53 W SIL 50 DURO 1407-3129-000
12** O-ring, 50.39 ID 57.45 OD 3.53 W SIL 50 DURO 1407-3143-000
13** O-ring, OD30 ID 22 4W SIL 40 DURO 1407-3104-000 (2)
14*** Valve, Housing Assembly Bypass 1407-3126-000
15 Screw, Thumb M4 Shoulder 7.5 X 7 1407-3410-000
16 Ring, Retaining 3.96 Shaft DIA SST 1407-3411-000
17 Cradle Canister 1407-3118-000
18 Screw, M4x10 CSK SKT HD SST TYPE 316 0140-6226-119 (2)
19** Spacer, Shoulder 6.8 DIA x4.1 L 1407-3120-000 (2)
20 Support, Cradle Pivot 1407-3119-000
21 Screw, M4x8 Sems BT SKT HD SST 316 0144-2436-108 (3)
* Apply Loctite 242.
** Lubricate sparingly with Krytox.
*** Rubber valve seats can not be removed from assembly (Item 14).
AB.82.055
2
1
1
3
2
4
5
6 (7)
8
9
10
13 12
13
11
14
***
15 (16)
17
17
18 (19)
20
21
