2.2 Power subsystem
Mains power enters the system through the AC Inlet module (A), which includes a line
filter and the system circuit breaker. Mains power is routed through the Inrush (B)
board to the isolation transformer (C).
The Inrush board protects against voltage spikes and conditions the AC mains.
The isolated secondary output of the transformer (approximately 180 VAC) is routed
through two, 5-amp fuses (D) to the universal power supply (E). The DC output of the
power supply feeds into the Power Controller board (F). The transformer also supplies
isolated power to the electrical outlets through individual circuit breakers.
The Power Controller board interfaces with the system through:
• the Anesthesia Control board connector (G),
• the Display Connector board connector (H),
• the battery connector (I) and fan connectors (J),
• the Auxiliary Connector board connector (K).

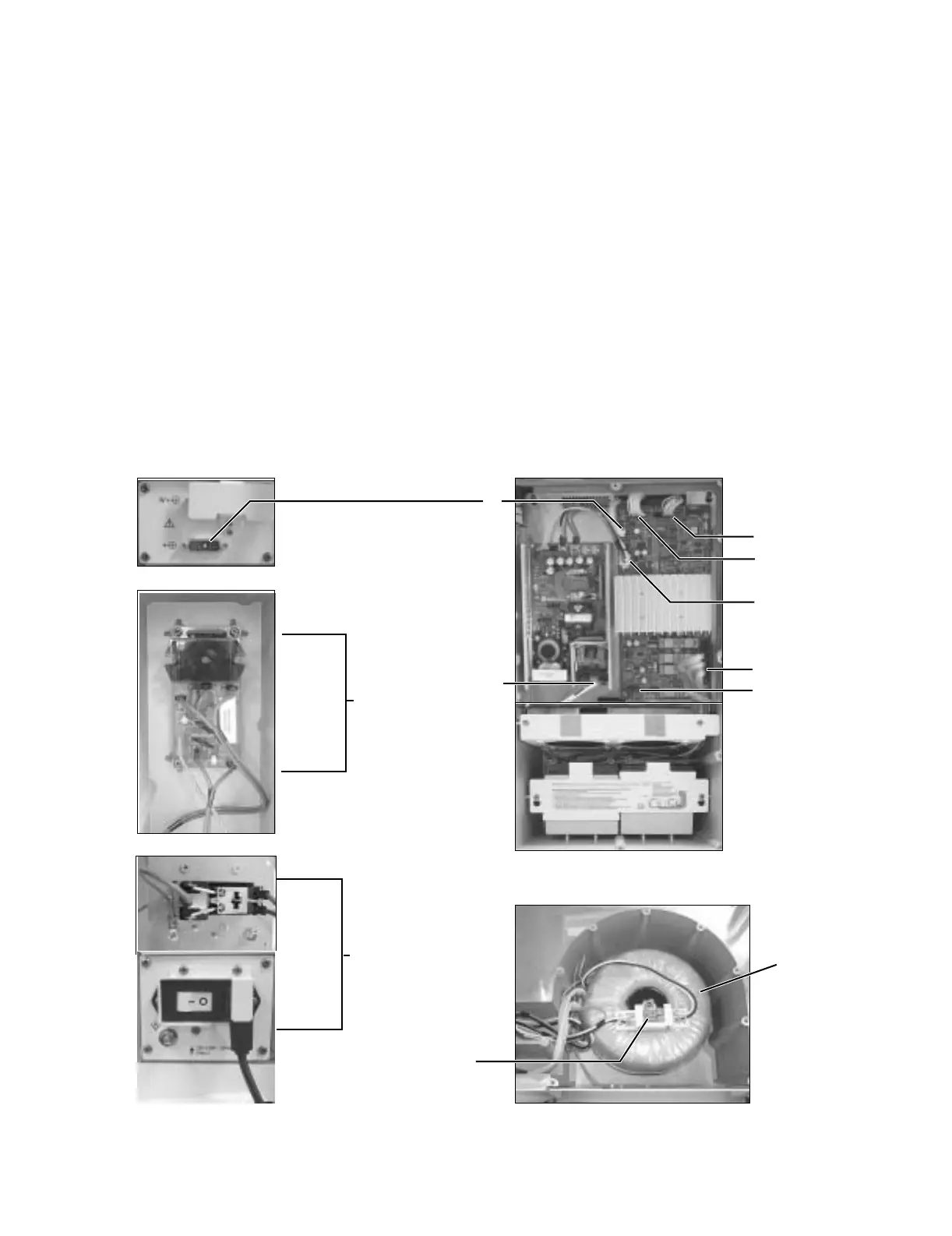

Figure 2-10 • Power subsystem
B
A
D
E
C
G
H
J
I
F
K

GE Datex-Ohmeda Aisys Carestation Specifications

General

Type	Anesthesia Machine
Manufacturer	GE Healthcare
Model	Aisys Carestation
Power Requirements	100-240V AC, 50/60 Hz
Display	High-resolution color touchscreen
Ventilator Type	Electronically controlled ventilator
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Gas Delivery	Oxygen, Nitrous Oxide, Medical Air
Power Supply	AC mains, Battery backup
Integrated Monitoring	Yes
Communication	Ethernet
Connectivity	Ethernet
Alarms	Comprehensive alarm system for ventilation, gas delivery, and patient monitoring parameters
