GE Datex-Ohmeda Aisys Carestation User Manual

Aisys
10-24 04/08 M1046983

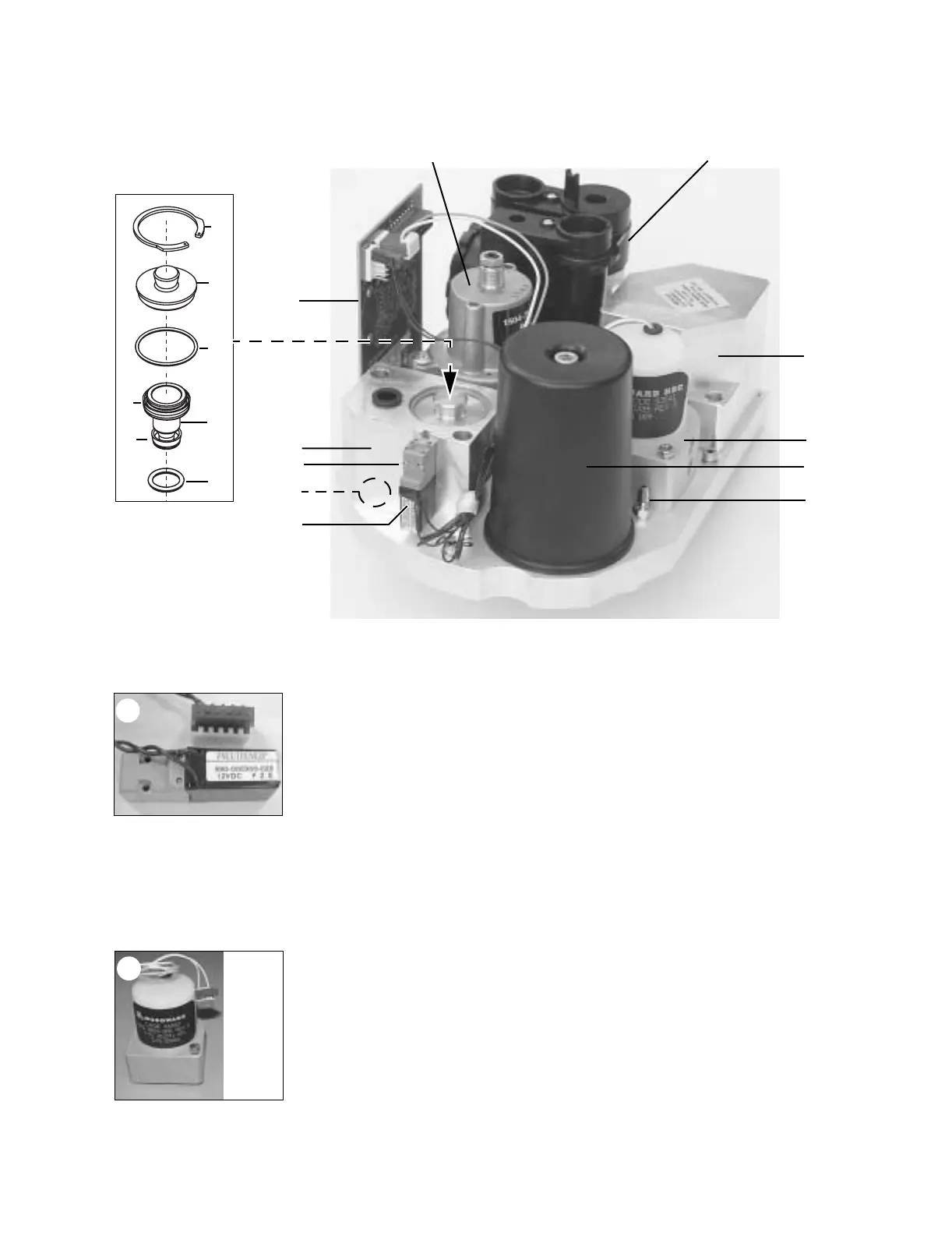

10.17 Vent Engine
Item Description Stock Number
Vent Engine Assembly, Service (Avance/Aisys) 1009-8216-000
1 Gas Inlet Valve (GIV) components Refer to Section 9.13.3
1a
Solenoid, 3-way NO (12 Volt) 1503-3853-000
1b
Screw, M1.6x14 1006-4730-000
1c Retaining ring, 34.9 mm 1500-3158-000
1d Cap, inlet valve 1503-5006-000
1e O-ring, upper Viton 9221-3032-116
1f Shuttle, inlet valve 1503-5018-000
1g U-cup, upper EDPM (fits on shuttle valve) 1503-3090-000
1h U-cup, lower Viton (fits on shuttle valve) 1503-3089-000
1i O-ring, lower Viton 1503-3108-000
2Filter (under GIV), 2-micron (install course side DOWN) 1504-3708-000
4Fitting, manifold pressure 1500-3116-000
5Reservoir, pneumatic engine
O-ring, base, 56.87 ID x 60.43 OD
O-ring, screw head, 0.219 ID x 0.344 OD
Screw, M6x90
1504-3704-000
1504-3614-000
0210-0686-300
1504-3004-000
6 Flow control valve (12 Volt)
O-ring under flow control valve (2 each)
1503-3854-000
1503-3056-000
7Drive gas check valve
O-ring under drive gas check
1503-3006-000
1503-3213-000
8 Interface Manifold Refer to Section 10.17.1
9Regulator, 172 kPa BCG 1504-3623-000
10 Vent Engine Connector board (not part of assembly) 1011-3165-000
10
1
5
6
7
9
8
1a
4
2
AB.23.150
1g
1h
1c
1d
1e
1i
1f
1b
12 Volt
6-pin connector
1a
12 Volt
4-pin
connector
6

GE Datex-Ohmeda Aisys Carestation Specifications

General

Type	Anesthesia Machine
Manufacturer	GE Healthcare
Model	Aisys Carestation
Power Requirements	100-240V AC, 50/60 Hz
Display	High-resolution color touchscreen
Ventilator Type	Electronically controlled ventilator
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Gas Delivery	Oxygen, Nitrous Oxide, Medical Air
Power Supply	AC mains, Battery backup
Integrated Monitoring	Yes
Communication	Ethernet
Connectivity	Ethernet
Alarms	Comprehensive alarm system for ventilation, gas delivery, and patient monitoring parameters
