2.9 Electronic Gas Mixer
The Gas Mixer receives its pneumatic inputs from the pipeline and cylinder supplies
and sends mixed gas to the vaporizer manifold. The Gas Mixer interfaces to the
Anesthesia Control board for power and communications.
The Gas Mixer consists of the following subassemblies and main components:
• Gas Mixer board (A)
• Control Manifold (B) — manifold, selector valves, proportional valves
• Flow sensor assembly (C)
•Mixed gas manifold and exit check valve (D)

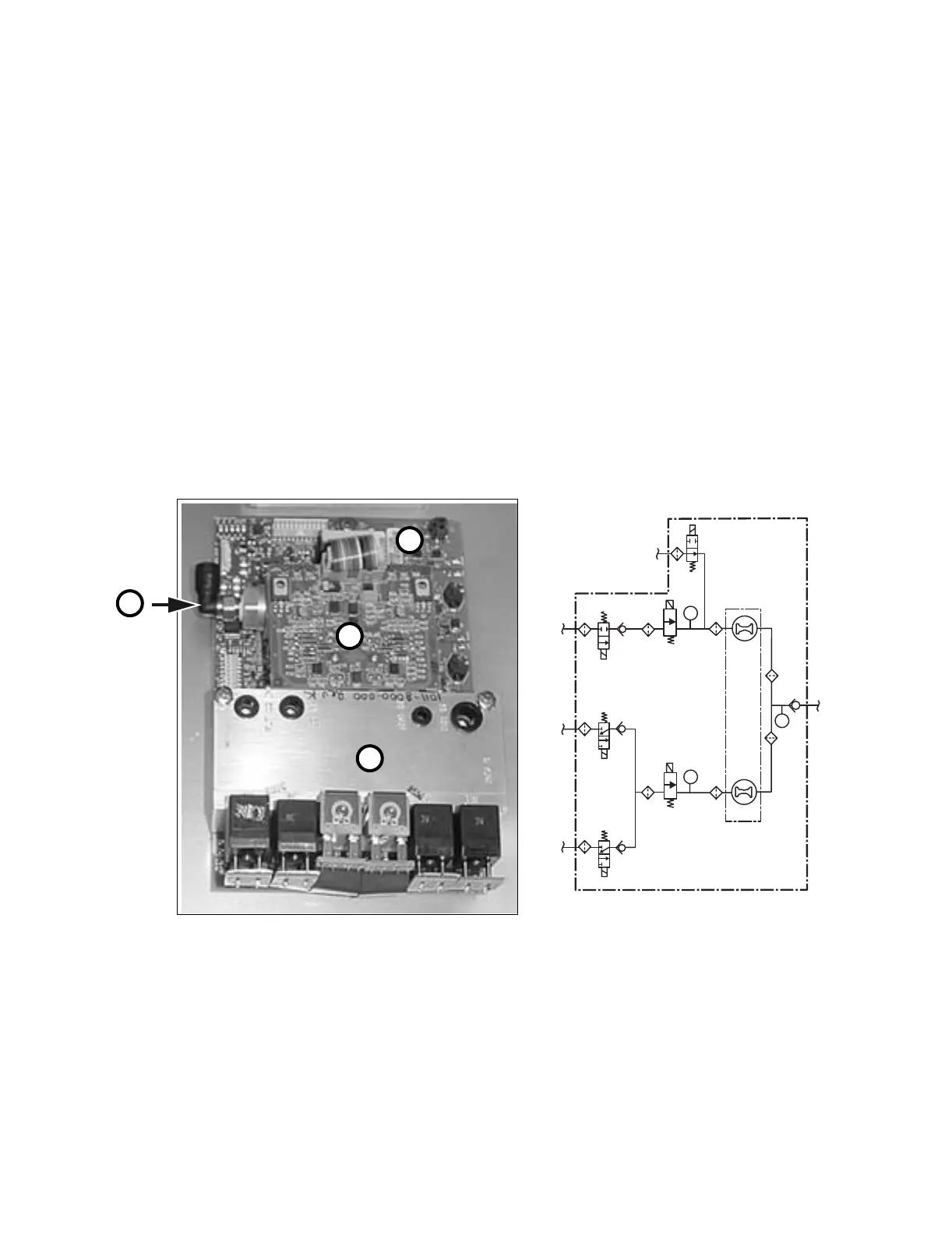

Figure 2-19 • Electronic Gas Mixer
A
B
C
D
Balance
Flow
Controller
Air Selector
Valve
N2O Selector
Valve
O2 Flow
Controller
Alternate O2
Disable Valve
O2 Selector
Valve
P
P
P
Mixer
AB.75.166
