GE Datex-Ohmeda Aisys Carestation User Manual

9 Repair Procedures
M1046983 04/08 9-39

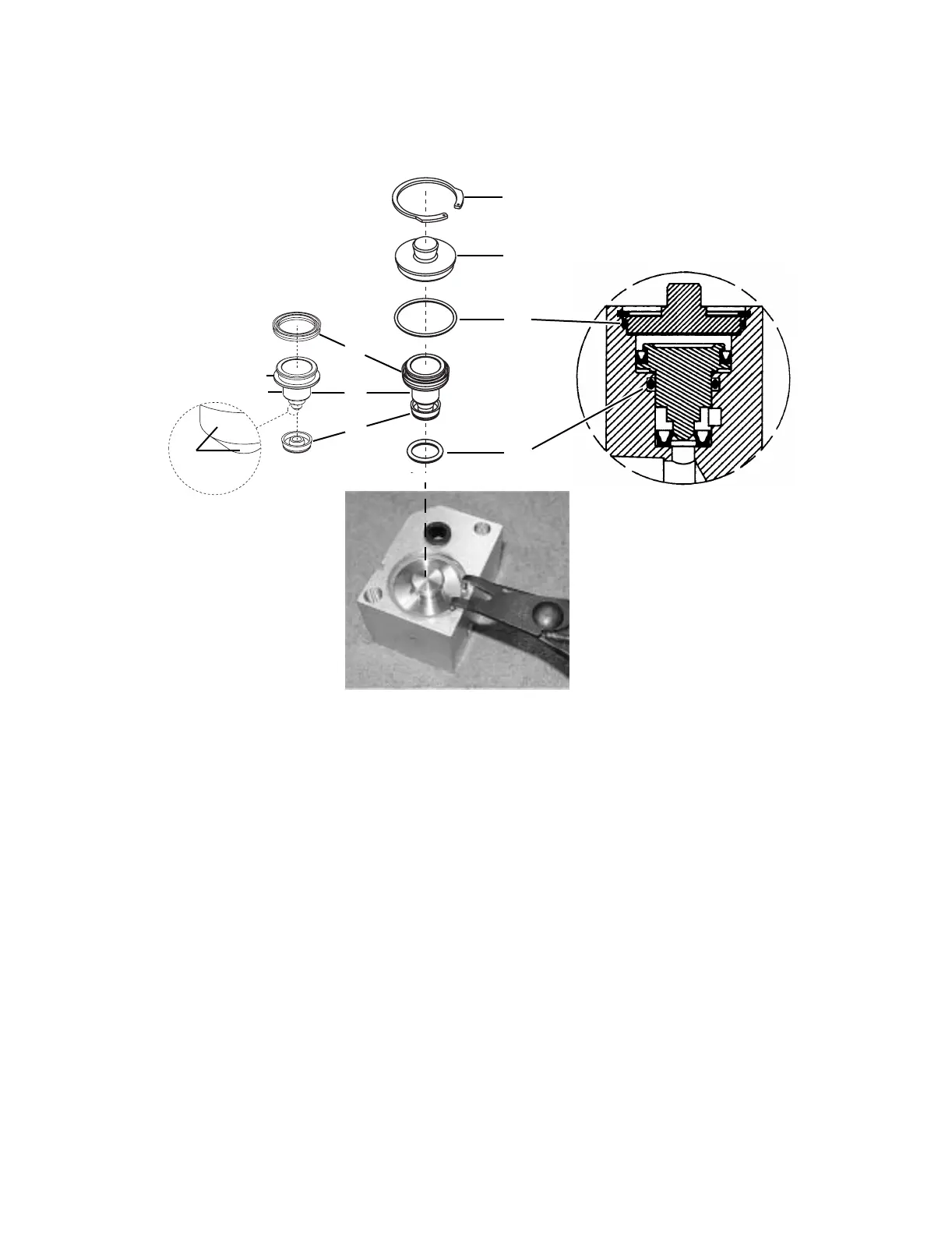

9.13.3 Replacing
GIV components
Lubricate items marked with an asterisk (*) sparingly with Krytox.
1. Remove the retaining ring (A) and the GIV cap (B).
2. Use pneumatic pressure to remove the shuttle. Cover the shuttle with a cloth and
briefly apply pressure (connect the drive gas hose or use pipeline pressure) through
the drive gas inlet.
3. Remove the upper o-ring (C) and the lower o-rings (D).
4. Install the lower o-ring (D*).
5. Lubricate the shuttle (E) at the three areas (*) shown: the circumference of the
shuttle where the upper and lower u-cup seals are placed and the body part of the
shuttle that slides along the lower o-ring.
6. Install the lower u-cup seal (F*) and the upper u-cup seal (G*) on the shuttle.
7. Press the shuttle assembly into the GIV manifold.
8. Install the upper o-ring (C*).
9. Install the cap (B) and the retaining ring (A).
10. Reassemble in reverse order.
AB.23.150
AB.23.149
A
*
*
*
AB.23.148
D*
B
E*
F*
G*
C*

GE Datex-Ohmeda Aisys Carestation Specifications

General

Type	Anesthesia Machine
Manufacturer	GE Healthcare
Model	Aisys Carestation
Power Requirements	100-240V AC, 50/60 Hz
Display	High-resolution color touchscreen
Ventilator Type	Electronically controlled ventilator
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Gas Delivery	Oxygen, Nitrous Oxide, Medical Air
Power Supply	AC mains, Battery backup
Integrated Monitoring	Yes
Communication	Ethernet
Connectivity	Ethernet
Alarms	Comprehensive alarm system for ventilation, gas delivery, and patient monitoring parameters
