GE Datex-Ohmeda Aisys Carestation User Manual

2 Theory of Operation
M1046983 04/08 2-61
2.13.2 Pressure
regulator
The pressure regulator (4) is a non-relieving pressure regulator that regulates high
pressure filtered supply gas down to 172 kPa (25 psi).

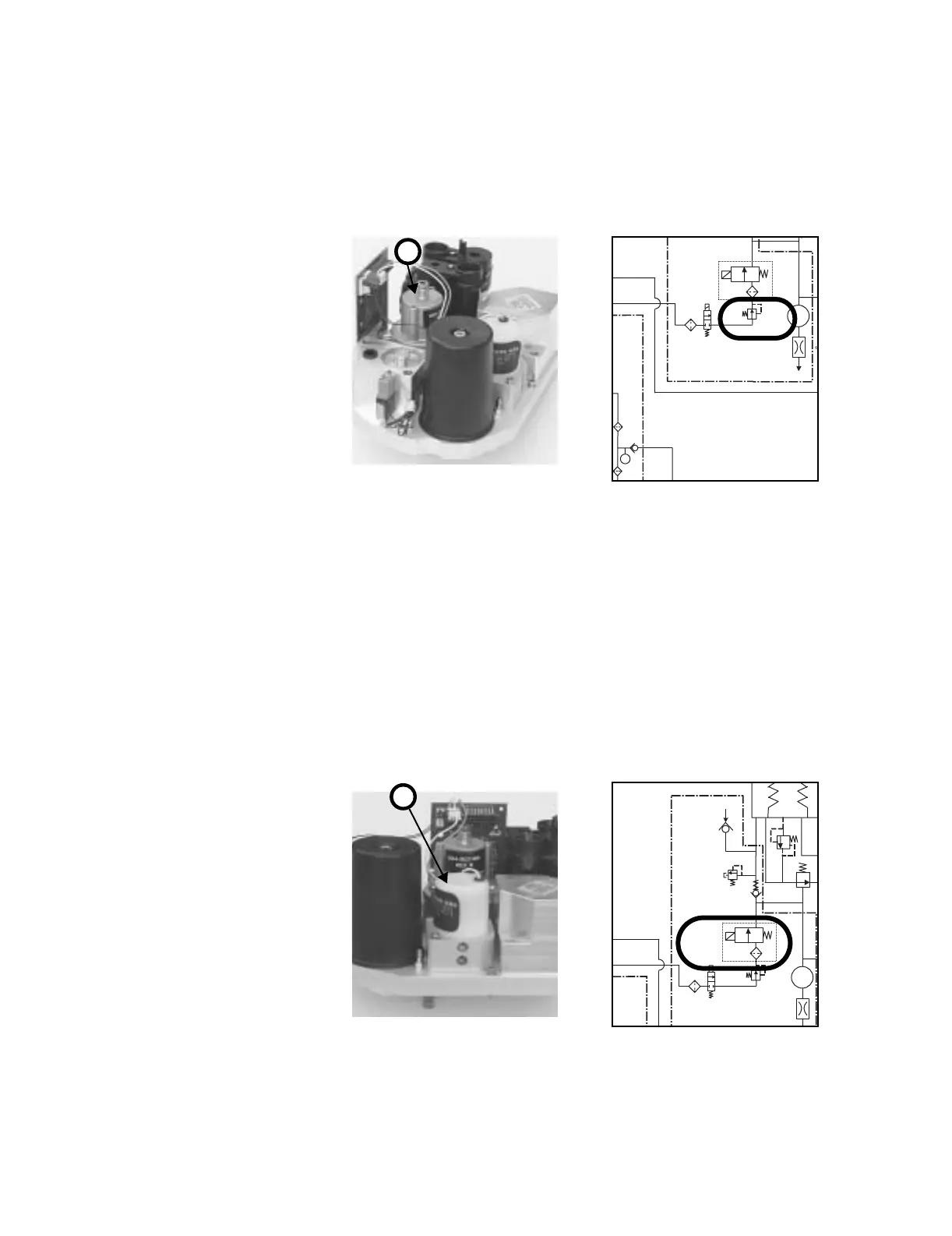

Figure 2-48 • Pressure regulator
2.13.3 Flow
control valve
The flow control valve (5) is controlled by the CPU. Signals are sent to the flow control
valve of the necessary flow determined by ventilator settings and sensor signals. The
flow control valve modulates the incoming 172 kPa (25 psi) drive gases to an output
from 0 to 120 liters per minute at pressures ranging from 0 to 100 cm H
2
O.
Figure 2-49 • Flow control valve
4
Vent to Ambient
(2.0
cm
2
0
5.4 ps
i
25 psig @
15 LPM
(3
.
5
cm
H2O
bias)
Inspiratory Flow
Control Valve
Gas Inlet
Valve
C
if
P
5
Exhal
a
(2.0 c
Popoff
Valve
Atmosphere
25 psig @
15 LPM
Drive Gas Check Valve
(3.5 cm H2O bias)
Free Breathing
Check Valve
Mechanical Overpressure
Valve (110 cm H2O)
Inspiratory Flow
Control Valve
Gas Inlet
Valve
Vent Engine

GE Datex-Ohmeda Aisys Carestation Specifications

General

Type	Anesthesia Machine
Manufacturer	GE Healthcare
Model	Aisys Carestation
Power Requirements	100-240V AC, 50/60 Hz
Display	High-resolution color touchscreen
Ventilator Type	Electronically controlled ventilator
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Gas Delivery	Oxygen, Nitrous Oxide, Medical Air
Power Supply	AC mains, Battery backup
Integrated Monitoring	Yes
Communication	Ethernet
Connectivity	Ethernet
Alarms	Comprehensive alarm system for ventilation, gas delivery, and patient monitoring parameters
