GE Datex-Ohmeda Aisys Carestation User Manual

Aisys
10-66 04/08 M1046983
10.40 Breathing System
10.40.1 APL Valve
Item Description Stock Number QTY
1 APL Valve Assy (includes items 2 through 6) 1009-8200-000
2 SPRING CPRSN 53.14 OD 36.8 L 1.48 N/MM 1406-3328-000
3 RETAINER SPRING APL 1407-3404-000
4 DIAPHRAGM APL 1406-3331-000
5CAGE APL 1406-3333-000
6 POPPET APL VALVE 1406-3332-000
7 RAMP APL 1407-3400-000
8COVER APL 1407-3405-000
9 MANIFOLD APL/BTV 1407-3401-000
10 Cover, Manifold APL/BTV (with 22-mm male bag port)
Cover, Manifold APL/BTV (with Australian bag port - 22 mm female)
1407-3402-000
1407-3412-000
11 WEIGHT DEAD 14CM H2O BCG ABS NEG RELIEF 1407-3406-000
12 SEAL ABS NEG RELIEF VLV 1407-3407-000
13 O-RING 22 ID 30 OD 4 W SI 40 DURO 1407-3104-000
14 O-RING 88.49 ID 95.55 OD 3.53 W SILICONE 50 DURO 1407-3403-000
15 O-RING 1.049ID 1.255OD .103W EPDM NO 121 1407-3408-000
16 SCR M4X16 BT SKT HD SST TYPE 316 0140-6226-115 (2)
17 Lockwasher, M4 external 9213-0540-003 (2)
18 SCR THUMB M4 SHLDR 7.5 X 7 1407-3410-000 (3)
19 RING RETAINING 3.96 SFT DIA CRESCENT SST 1407-3411-000 (3)
20 SCR M4 X 40 FL HD SST PH 0140-6226-122 (2)
21 O-RING 2.9 ID 6.46 OD 1.78 W EP 70 DURO 1407-3409-000 (2)
22 SCR SEMS M4X8 BT SKT HD W/EXT L/W SST 316 0144-2436-108 (3)

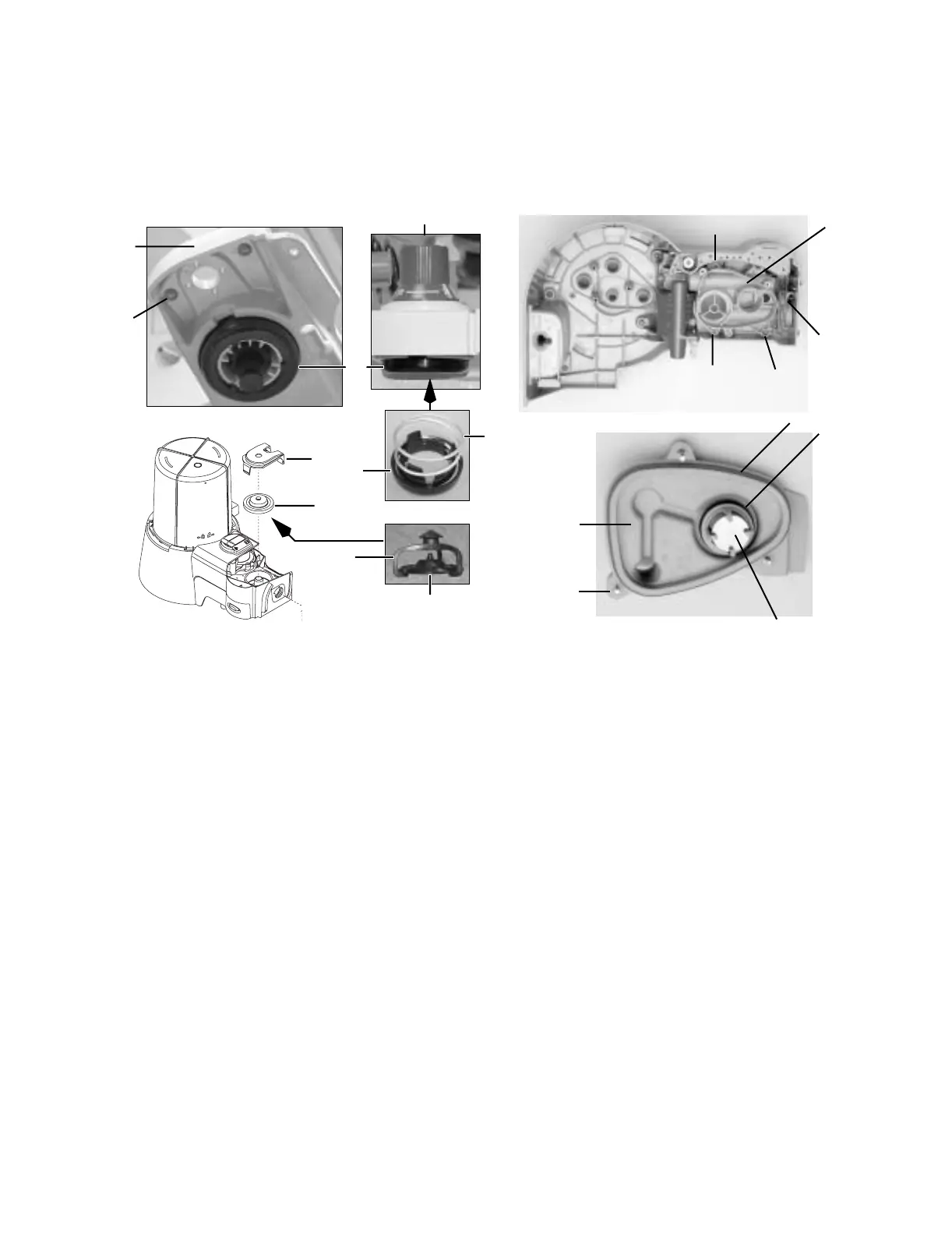

AB.82.008
8
18
(19)
10
20 (21) 16 (17)
20 (21)
22
2
7
4
9
14
11 (12)
15
13
1
5
6
3
3

GE Datex-Ohmeda Aisys Carestation Specifications

General

Type	Anesthesia Machine
Manufacturer	GE Healthcare
Model	Aisys Carestation
Power Requirements	100-240V AC, 50/60 Hz
Display	High-resolution color touchscreen
Ventilator Type	Electronically controlled ventilator
Ventilation Modes	Volume Control, Pressure Control, SIMV, Pressure Support, Manual
Gas Delivery	Oxygen, Nitrous Oxide, Medical Air
Power Supply	AC mains, Battery backup
Integrated Monitoring	Yes
Communication	Ethernet
Connectivity	Ethernet
Alarms	Comprehensive alarm system for ventilation, gas delivery, and patient monitoring parameters
