DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
6 - 12 Section 6-3 - Monitor Arm and/or Monitor range of motion Adjustment procedure
Monitor Arm Vertical adjustment - Ergotron Arm
If the Monitor is too loose or too tight when it is tilted, perform a Tilt adjustment.

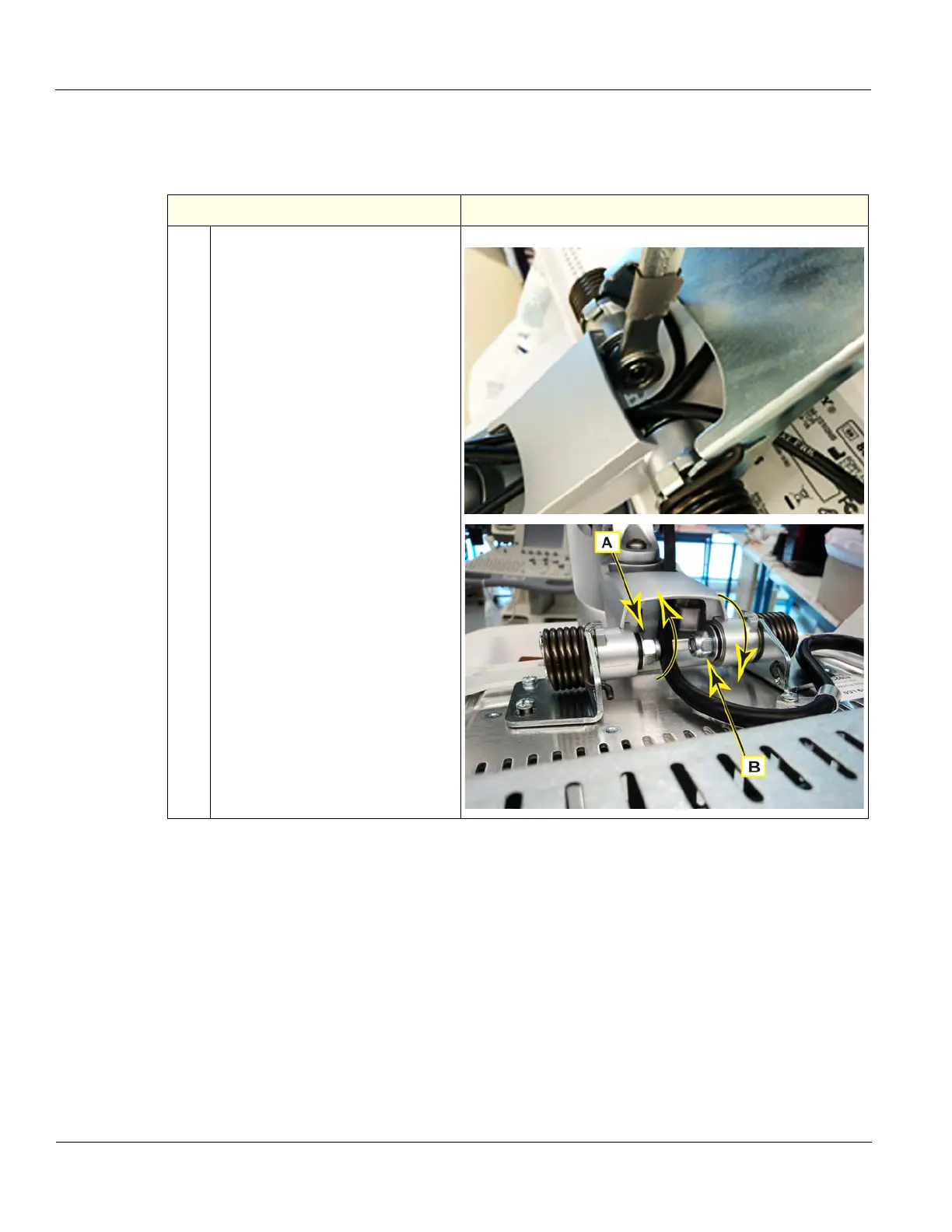

Table 6-6 Monitor Tilt adjustment - Ergotron Arm
Steps Corresponding Graphic
1. Tilt the Monitor down and remove
the Monitor Rear Cover.
If you have a thick wrench, it is
easier to reach the nuts by using the
boxed end of the wrench.
If the Monitor is too loose, turn the
Adjustment Nut (A) towards the
back and Nut (B) towards the front
to increase the friction, using a
13 mm wrench.
Turn the Nuts the opposite direction
to decrease the friction. The Monitor
should stay in the position it is
released at.
NOTE: Be sure to tighten or loosen
both sides equally. Start with 1/4
turn and test full 90 degree
movement before tightening or
loosening more.
Reinstall the Monitor Rear Cover.
To Next Page
