GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 102 Section 8-7 - Replacing Top Console Parts

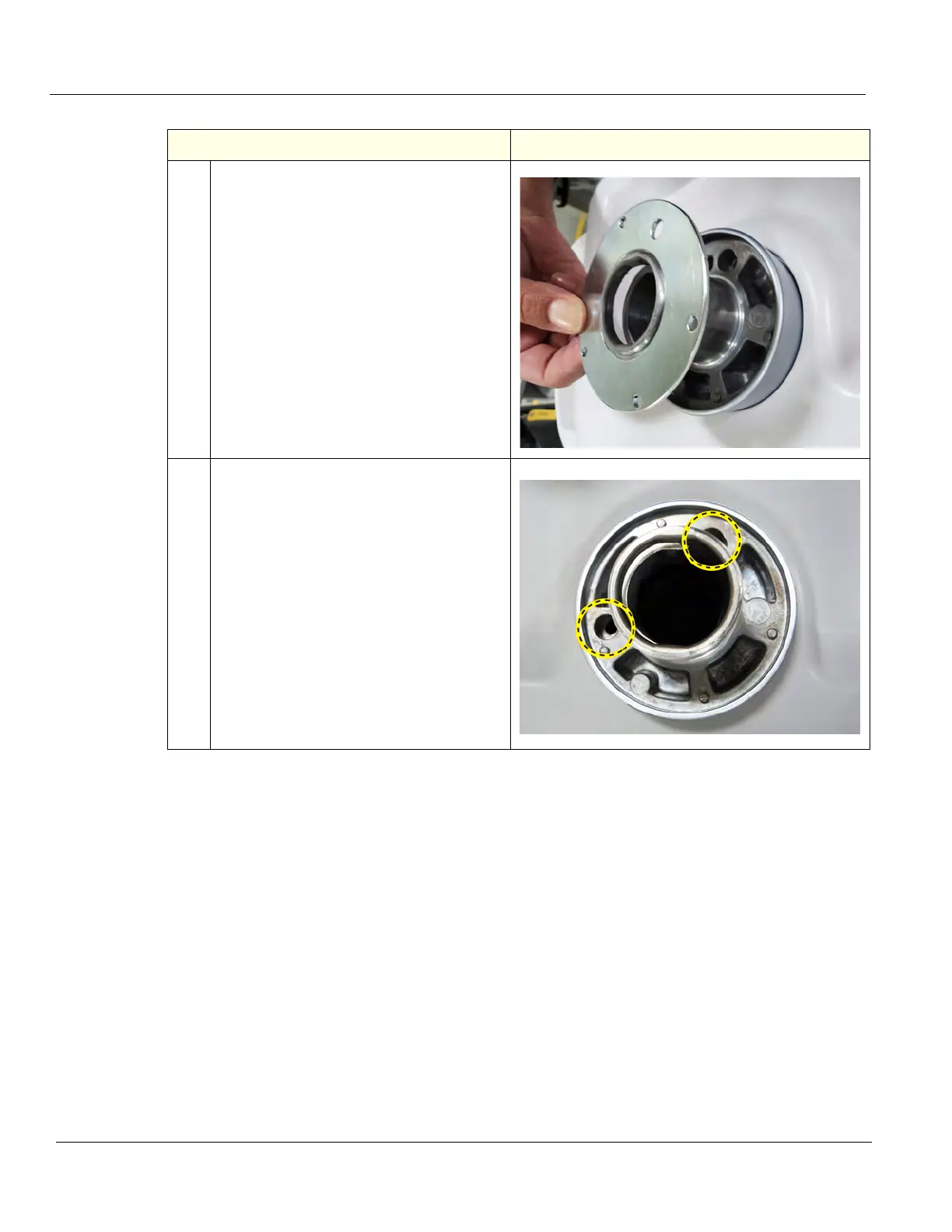

4.
Remove the Bearing. The plate is captured
by the two retaining pins that protrude from
the Adapter.
NOTE: A pin or pick can be used to lift the
plate slightly to remove.
5.
Remove the two screws securing the
Adapter, using a 4 mm hex wrench.
Table 8-112 Arm Adapter removal
Steps Corresponding Graphic
