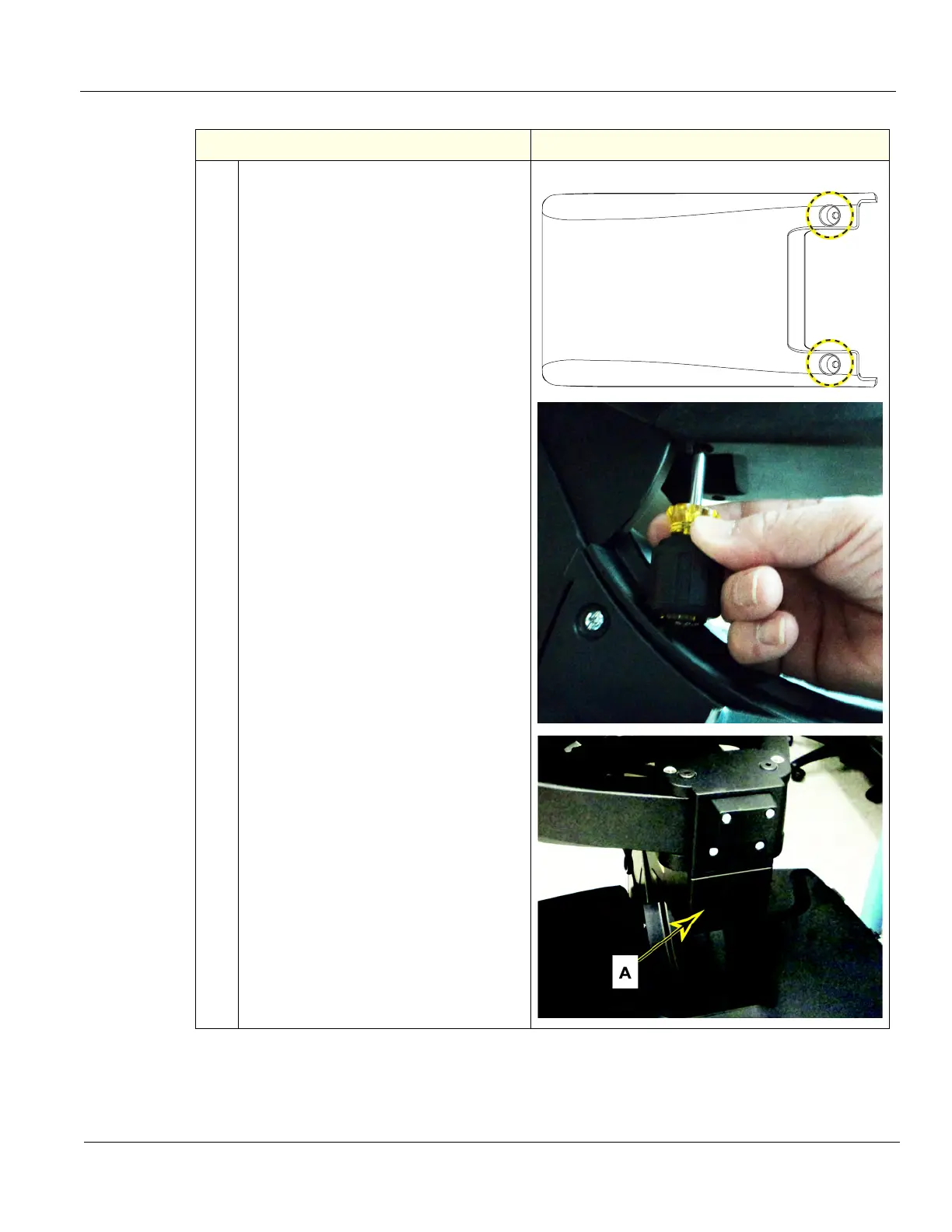

4. The screws are located in the front of the
Bumper (A).
The screws MUST BE removed or
damage to the Bumper can occur.
Remove to two screws securing the
Bumper Boss on the Z-Mech, using a
short #2 Phillips screw driver.
Remove the Bumper (A) by gently
grasping on the outer top, leading edge of
the Bumper.
Disconnect the connector to the Park
Lock.
Table 8-225 XY-Mechanism removal
Step Corresponding Graphic
