GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 196 Section 8-8 - Replacing XYZ Parts
5. Remove the four screws (B) securing the XY-Mech to the Z-Mech using a 6 mm driver, with an
extension.
6. Disconnect the connector from Park Lock.
7. Carefully lift the XY-Mech, while guiding out the connector to the Park Lock.

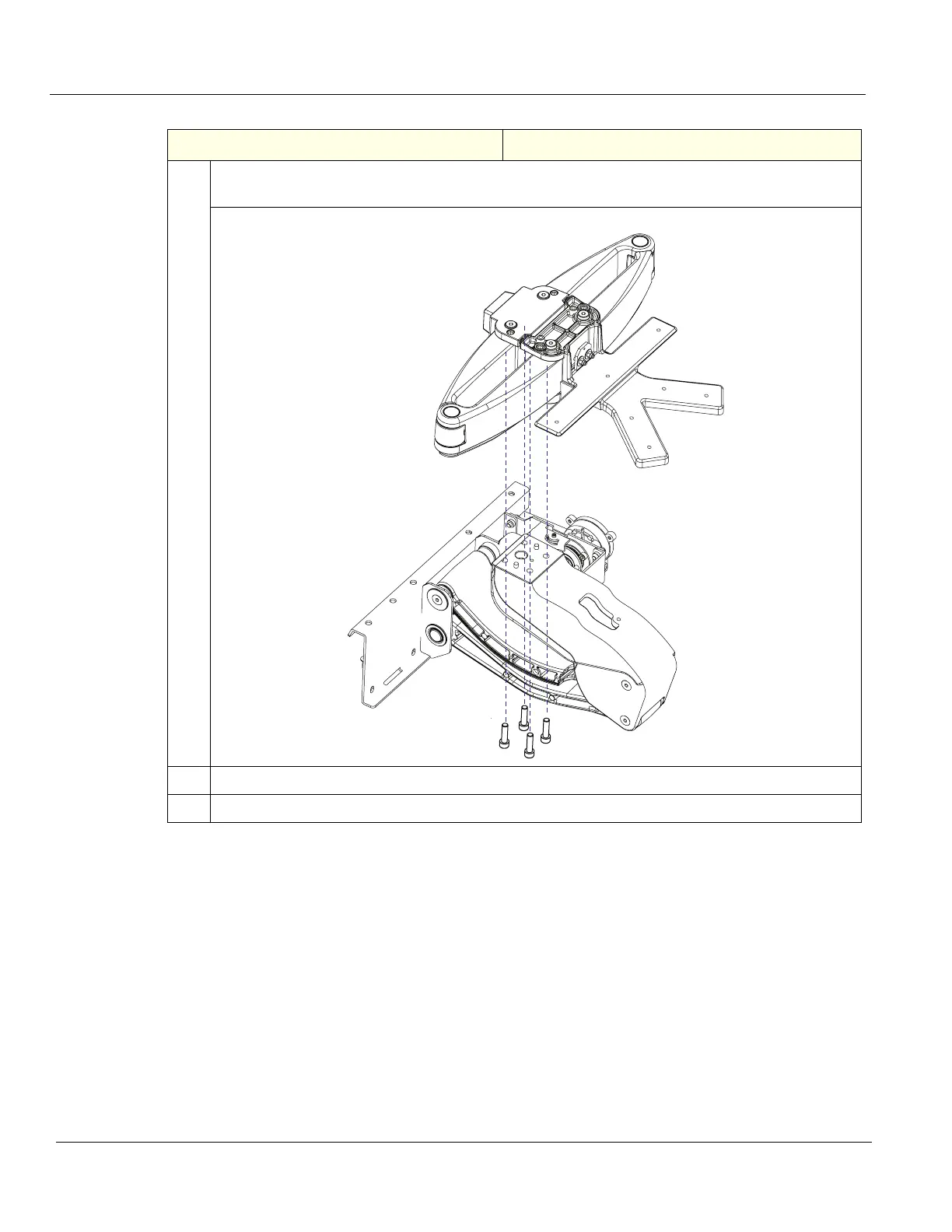

Table 8-225 XY-Mechanism removal
Step Corresponding Graphic
B

GE LOGIQ E10 Specifications

General

Touchscreen	Yes
3D/4D Imaging	Yes
Applications	Vascular, Cardiac, Musculoskeletal, OB/GYN
Image Storage	USB, Network
Connectivity	DICOM, Ethernet, Wireless
