DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 203

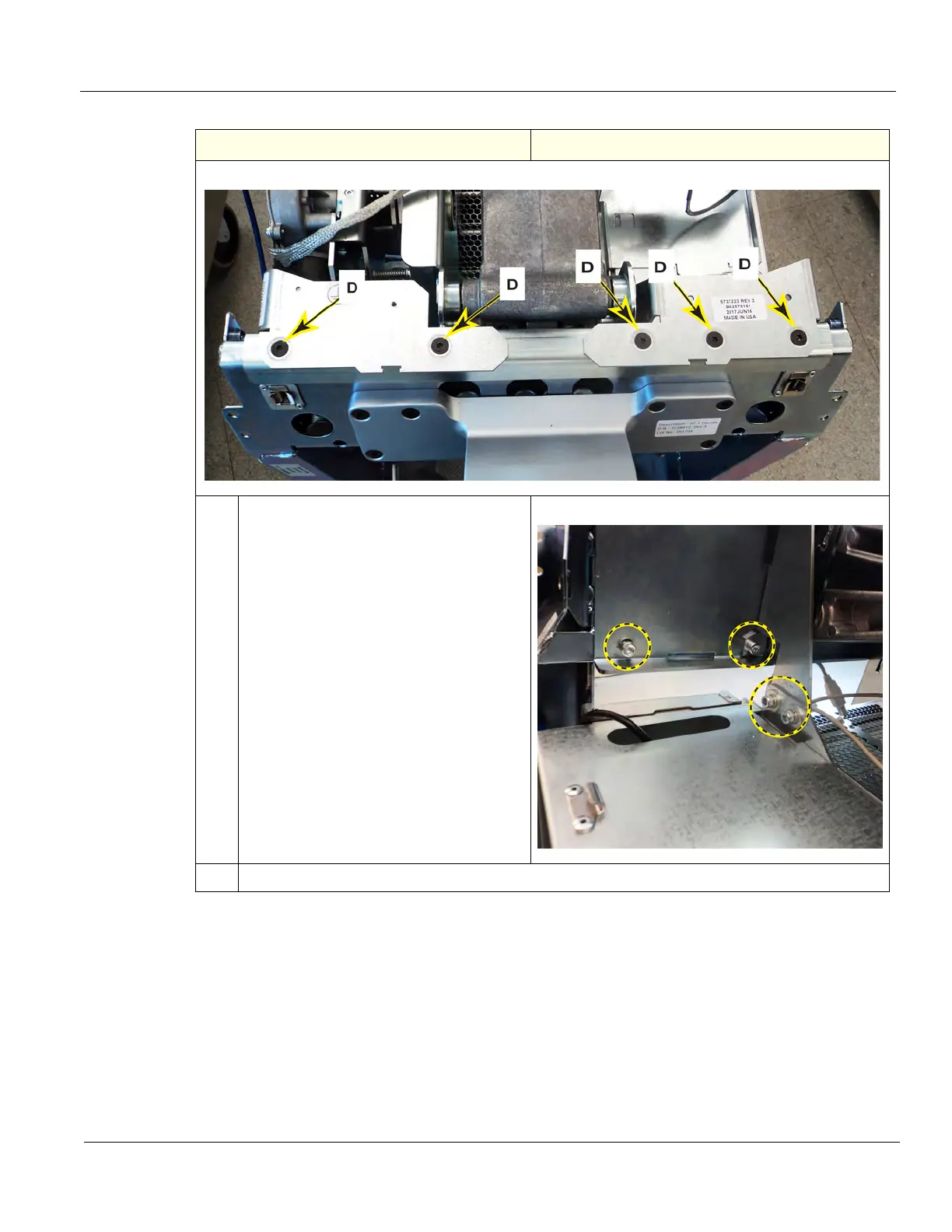

8. Remove the four screws and washers
securing the left side of the Z-Mech, using
a 5 mm hex wrench.
9. Remove the Drive Gear Assembly.
Table 8-230 Z-Mechanism removal
Step Corresponding Graphic
To Next Page
