DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 204 Section 8-8 - Replacing XYZ Parts

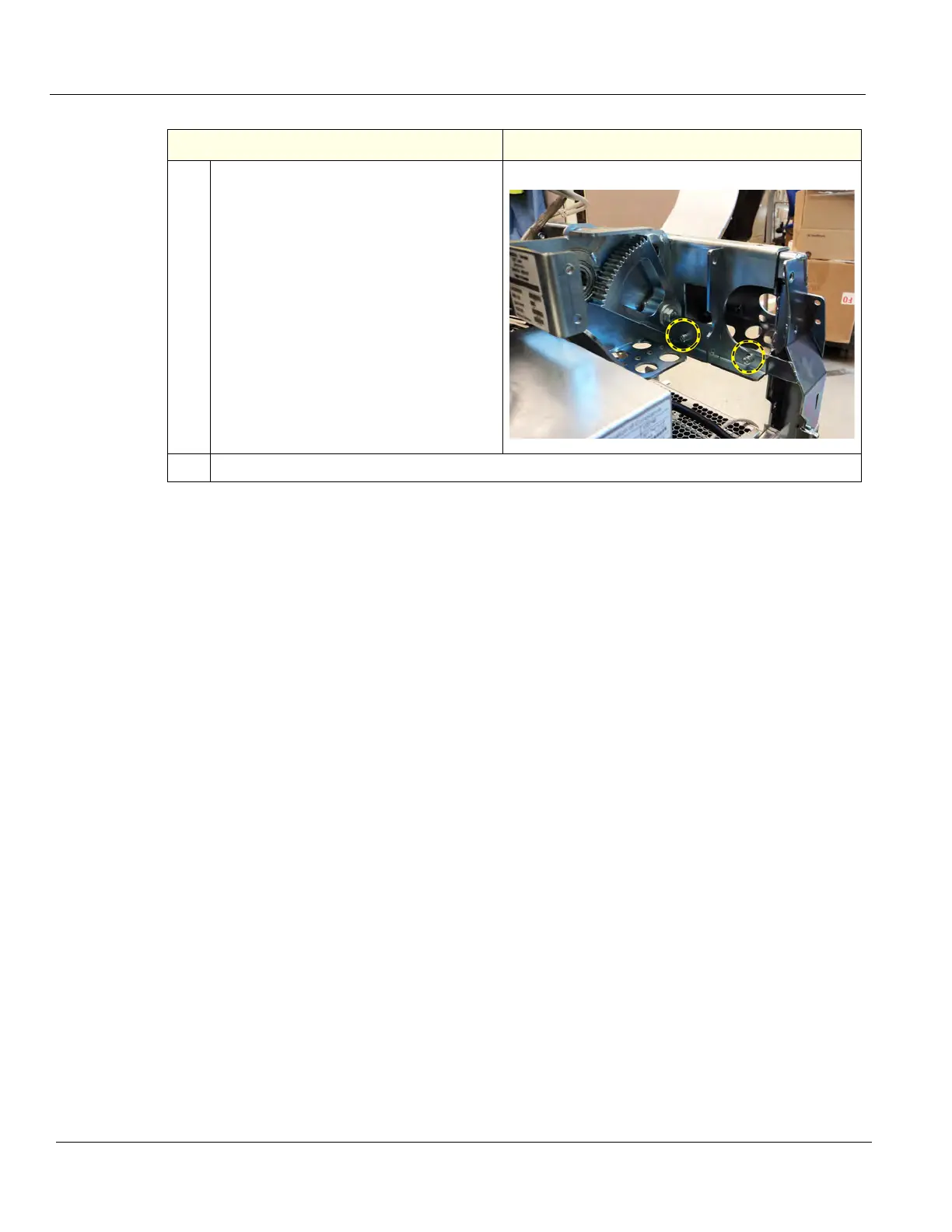

10. Remove the two screws and washers
securing the right side of the Z-Mech,
using a 5 mm hex wrench.
11. With both hands and possibly some help, lift the Z-Mech straight up off the Frame.
Table 8-230 Z-Mechanism removal
Step Corresponding Graphic
