GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8 - 241
3.
Remove the six screws (3) and (4). Two
are underneath (3) and four on the top (4),
using a 6 mm hex wrench.
The two lower screws (3), also secure the
Strap Hook to the Base Casting.
4.
Lift up and gently pull up the Pedal Mechanism.
5.
Remove the Pedal Mechanism Covers.

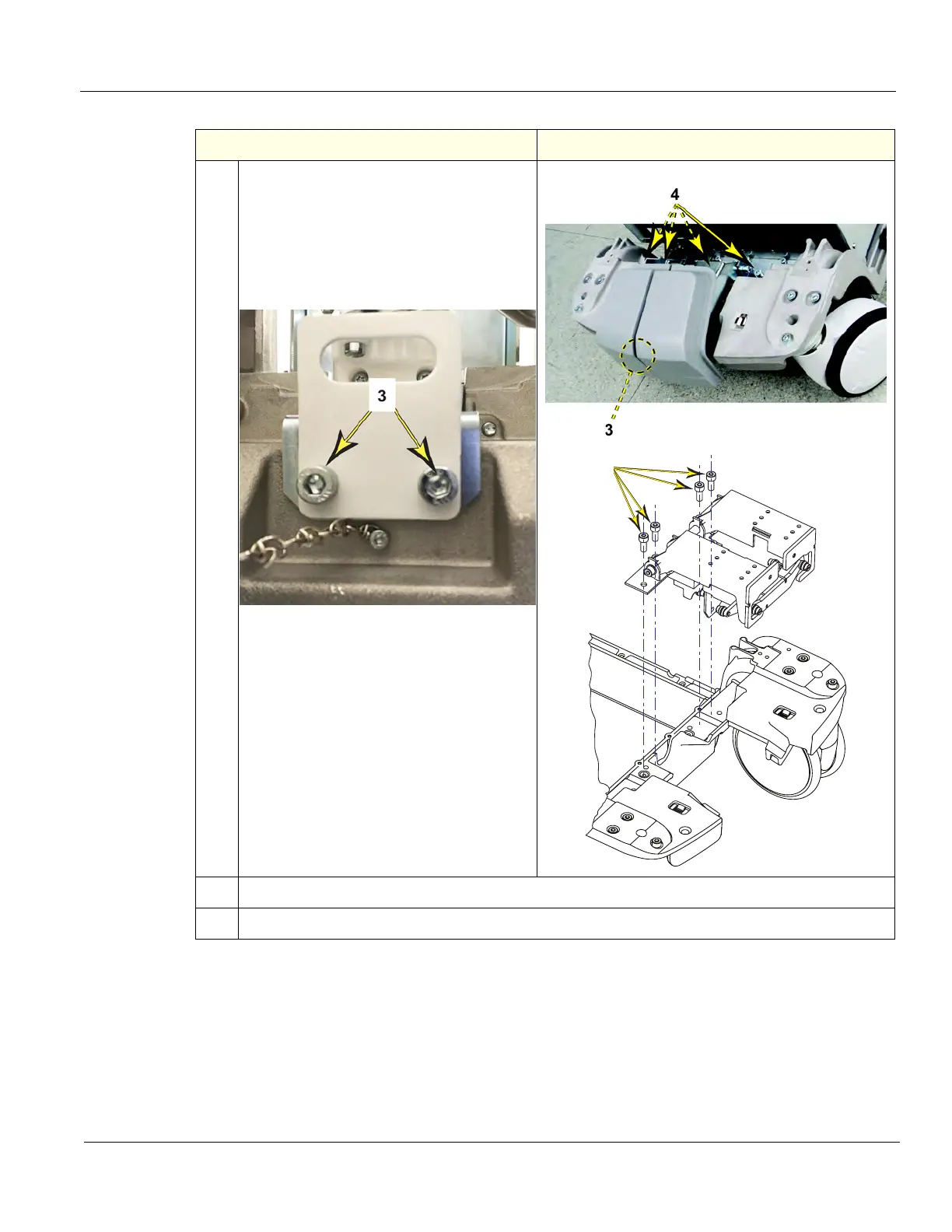

Table 8-264 Pedal Mechanism removal
