GE LOGIQ E10 Service Manual

DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 274 Section 8-11 - Front End Acquisition / Card Cage parts replacement
3.
NOTE: The ECB weighs almost 4.5 kg
(10 lbs.). BE SURE to support it when it is
removed.

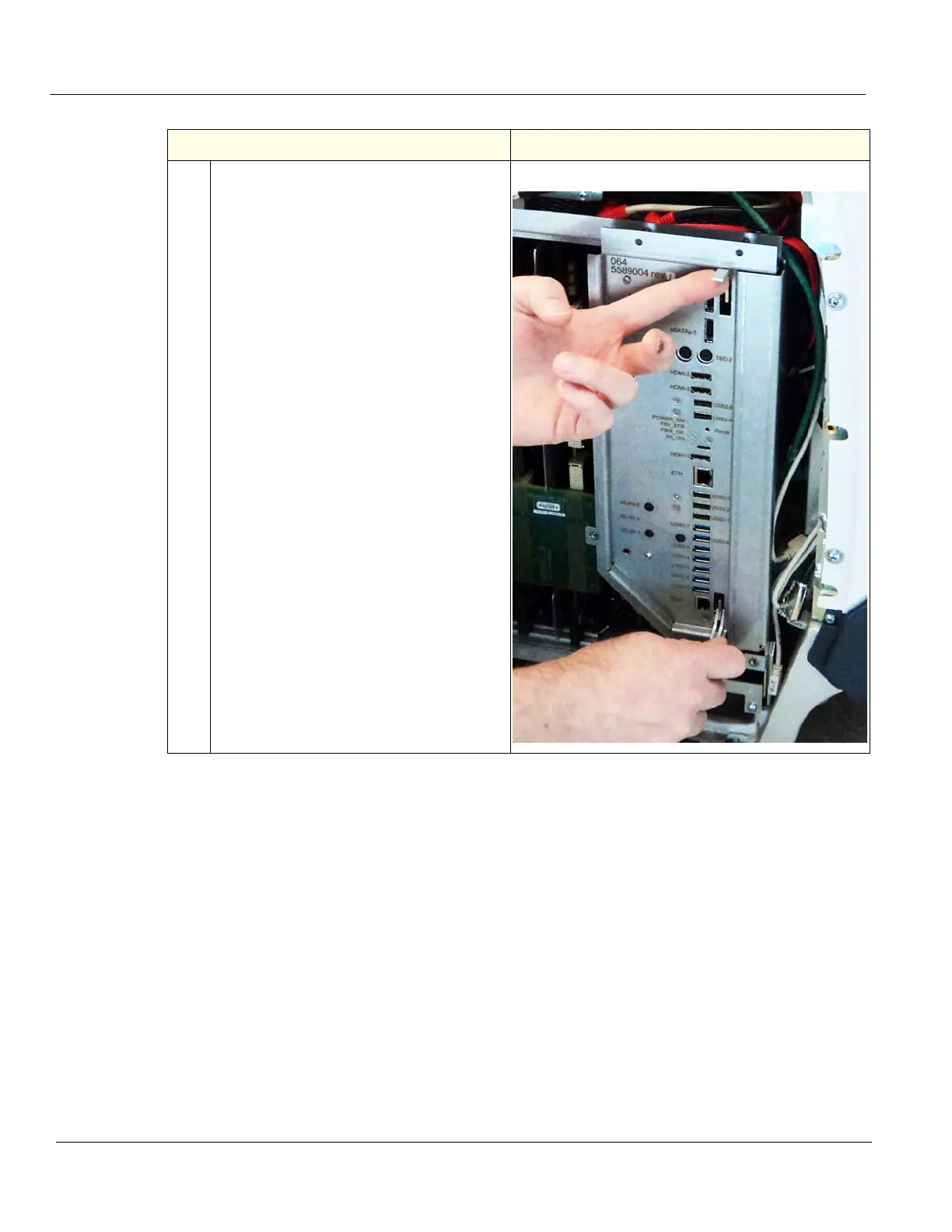

Release the board ejector levers that
secure the ECB to the Card Cage and
gently slide it out of the Card Cage.
ECB ejector levers
Table 8-302 ECB removal
Steps Corresponding Graphic
