DIRECTION 5750007-1EN, REV. 1 LOGIQ E10 BASIC SERVICE MANUAL
8 - 280 Section 8-11 - Front End Acquisition / Card Cage parts replacement

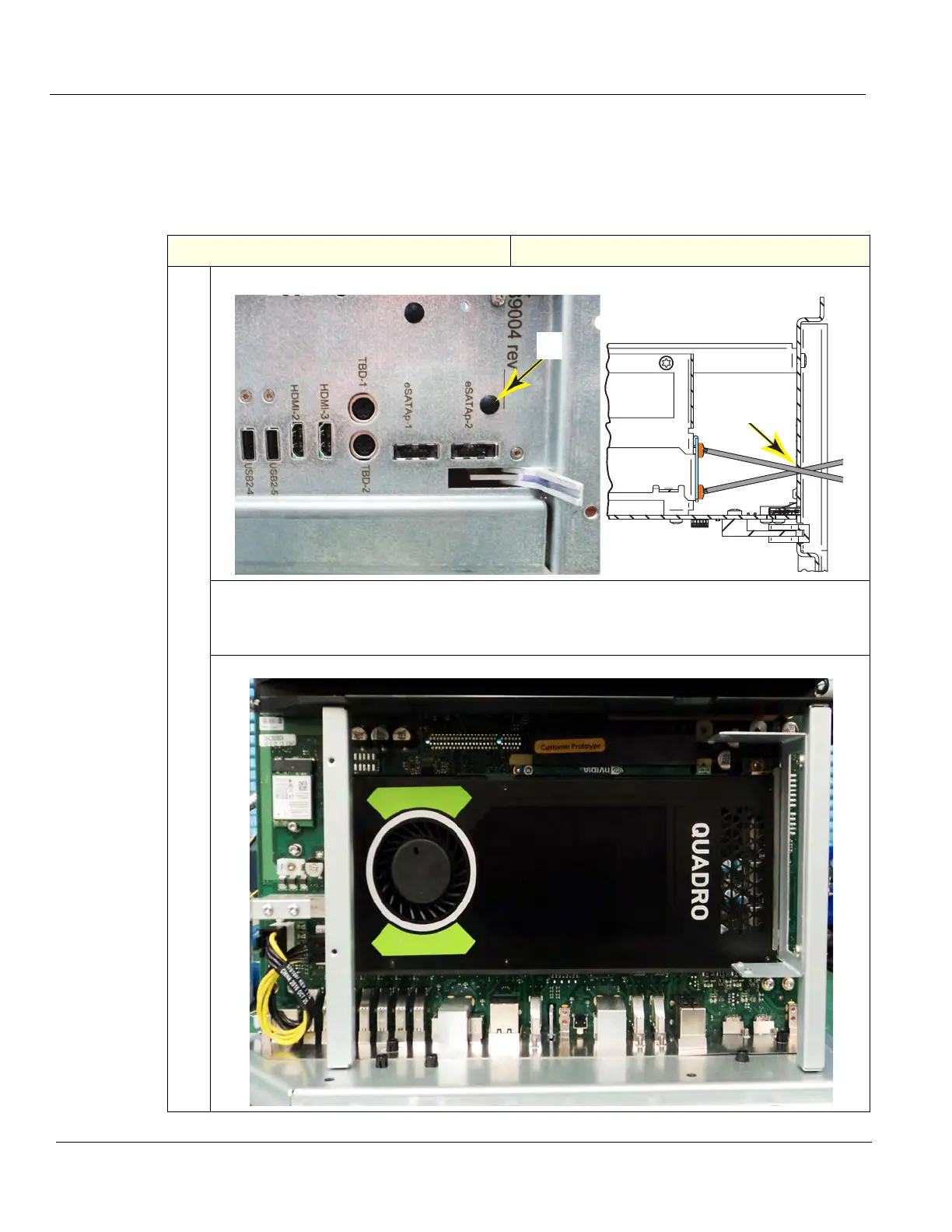

GPU removal
NOTE: If a small, close quarters ratchet set is not available, plug (A) can be removed to access screws
with a T-10 Torx driver. Re-install plug after replacement. Plug (A) removed and access (B)
shown.
Table 8-308 GPU removal
Steps Corresponding Graphic
1.
Small, close quarters ratchet set Alternate
The GPU is connected and mounted to the ECB.
Place the ECB on a safe, level ESD surface when servicing the GPU.
NOTE: The right side of this image is defined as the upper, top of the ECB.
A
B
To Next Page
